COMPONENT INFORMA
TION
2-3

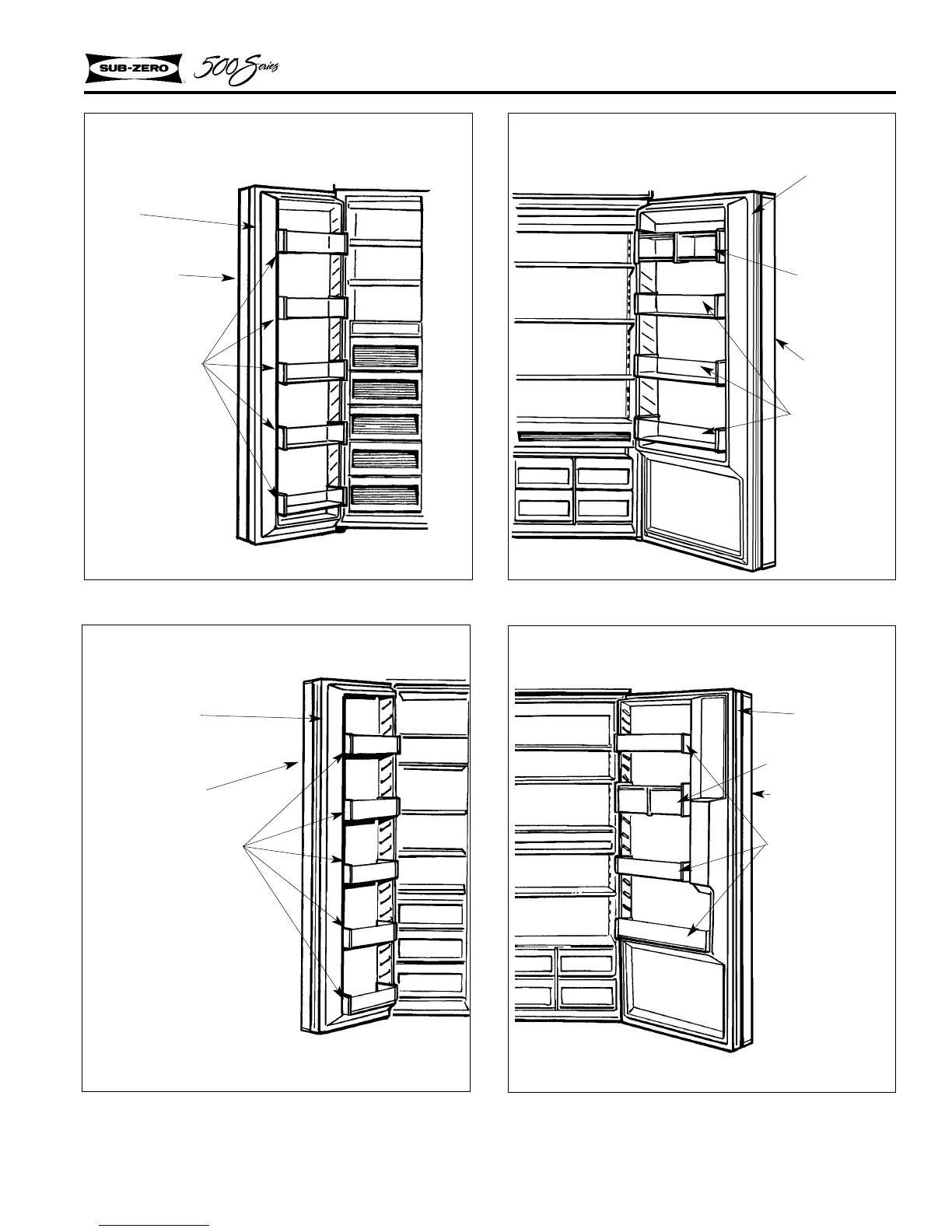

Figure 2-5. Refrigerator Doors
Model 532, 542, 561
Gasket
Handle Assy
.
Dairy Assy
.
Door Shelf
Assy
.
Figure 2-7. Refrigerator Door
Model 590
Gasket
Handle Assy
.
Dairy Assy
.
Door Shelf Assy
.
Not Shown:
• T
rim Panels
• Dispenser Assy
.
Figure 2-4. Freezer Doors
Model 532, 542, 561
Gasket
Handle Assy
.
Shelf Assy
.
Figure 2-6. Freezer Door
Model 590
Gasket
Handle Assy
.
Door Shelf Assy
.
Not Shown:
• T
rim Panel
8
10
Table of Contents
Default Chapter
4
General Information
4
Table of Contents
4
Important Safety Information
5
Technical Assistance
5
Section 1 - General Information
5
Introduction
5
Section 2 - Component Information
7
Doors & Drawers
8
Refrigerator/Freezer Door Assembly
8
Door Shelf Assembly
9
Freezer Drawer Assembly
10
Freezer Drawer Adjustment
10
Removing Freezer Drawer
10
Freezer Drawer Assy
10
Door Shelf Assembly - All Models
11
Dairy Compartment - All Models
11
Door Pitch Adjustment
11
Installing/Removing Door Shelf Assy
11
Door Panel Assembly - All Models Except 590
12
Dairy Compartment Assy
12
Door Moldings and Handle
12
Door Moldings
12
Door Panel Assembly - Model 590
13
Door Dispenser Assembly - Model 590
13
Door Trim Molding
13
Door Trim Panels
13
Door Closer Assemblies
14
Door Adjustment
14
Gravity Door Closer
14
Refrigerator Drawer and Freezer Basket Assemblies - All Models
15
Hinge Spacer Installation
15
Crisper and Roll-Out Basket Assemblies
15
Freezer Components
16
Freezer Fan Motor - 501F
16
Light Diffuser
16
Evaporator Fan Blade Assy
16
Freezer Fan Motor - Models 511, 550
17
Freezer Fan Motor - Models 532, 542, 561
17
Freezer Duct/Shelf
17
Freezer Fan
17
Freezer Fan Motor - Model 590
18
Freezer Fan Motor - 532, 542, 561
18
Ice Maker Assy. - Model 501F
19
Compact Ice Maker Assembly
20
Modular Ice Maker Assembly
20
Compact Icemaker
20
Ice Bucket Location
20
Ice Maker Assy. - 590
20
Ice Maker Assembly - Models 532, 542, 561
21
Modular Icemaker
21
Icemaker
22
Carriage Slides
22
Upper Freezer Light Diffuser
22
Evaporator Cover Removal
22
Ice Maker Assembly - Model 590
23
Lower Evaporator Cover
23
Ice Maker Auger Motor Assy. - Model 590
24
Auger Bracket
24
Auger Motor Assy
24
Water Valve Solenoid - 501F
24
Dual Water Valve Solenoid
25
Water Supply Connection Location
25
Water Valve Connection after S/N 1259340
25
Water Valve Connection Prior to S/N 1259340
25
Fan Guard
26
Control Assy
26
Controls - 501R/501F
26
Refrigerator Control
27
Refrigerator Control Routing
27
Controls Location and Routing
27
Freezer Control
27
Water Tank Cover
28
Water Tank
28
Bulk Ice Switch - Model 590
29
Ice Chute - Model 590
29
Water Tank Reservoir - Model 590
29
Refrigerator Evaporator Assembly
30
Evaporator Assembly - 501F
30
Light Terminator
31
Thermal Switch-Refrigerator
31
Thermal Switch-Freezer
31
Unit Roller Base Assembly
32
Roller Base Assy
32
Section 3 - Air Flow & Fan Blade Spacing
33
Air Flow - 501R
33
Air Flow - 501F
33
Air Flow - Model 501F
35
Refrigerator Air Flow - Models 511, 550
36
Freezer Air Flow - Models 511, 550
36
Refrigerator Air Flow - Models 532, 542, 561
36
Freezer Air Flow - Models 532, 542, 561
37
Refrigerator Air Flow - Model 590
38
Freezer Air Flow - Model 590
38
Exploded Views & Parts Lists
39
Section 4 - Exploded Views and Parts Lists
39
501R Door View
40
501R Cosmetic View
42
501R Sealed System View
44
501F Door View
46
501F Cosmetic View
48
501F Sealed System View
50
511 Door View
52
511 Cosmetic View
54
511 Sealed System View
56
532 Door View
58
532 Stainless Steel External Cosmetic/Door View
60
532 Cosmetic View
62
532 Sealed System View
64
542 Door View
66
542 Stainless Steel External Cosmetic/Door View
68
542 Cosmetic View
70
542 Sealed System View
72
550 Door View
74
550 Stainless Steel External Cosmetic/Door View
76
550 Cosmetic View
78
550 Sealed System View
80
561 Door View
82
561 Stainless Steel External Cosmetic/Door View
84
561 Cosmetic View
86
561 Sealed System View
88
590 Door View
90
590 Cosmetic View
92
590 Sealed System View
94
Compact Icemaker / Modular Icemaker
96
Technical Data
99
Technical Data
100
Section 6 - Wiring Diagrams/Schematics
109
