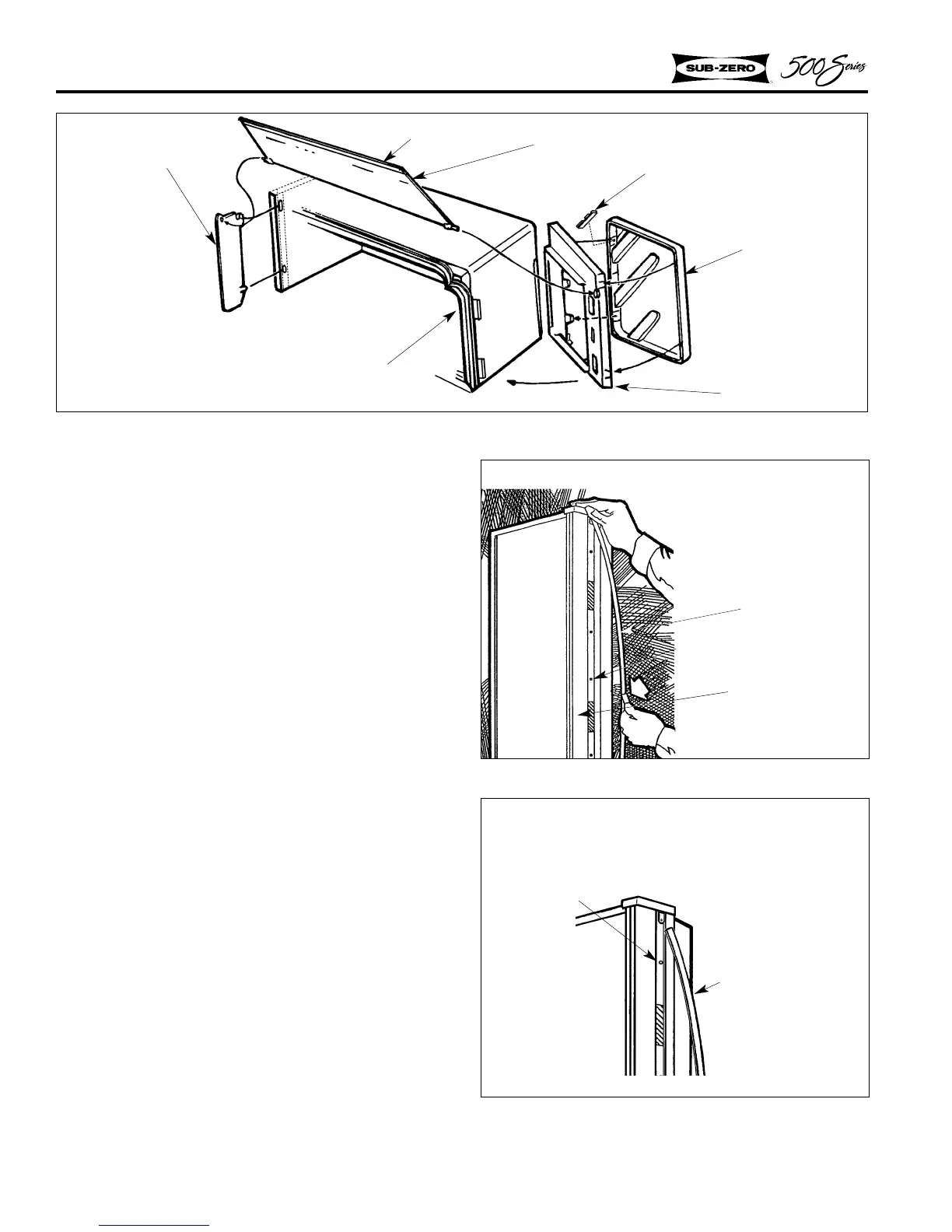

Figure 2-16. Door Moldings
COMPONENT INFORMATION
2-6
Figure 2-15. Door Moldings and Handle
Figure 2-14. Dairy Compartment Assy.
Center Divider
Outside End Cap
Inside End Cap
Dairy Door
Shelf Gripper
Screw
Handle
Molding
Molding
Magnetic Catch Strips
Dairy Door Seals
Door Panel Assembly
- All Models Except 590
To install or remove a door panel, use the follow-
ing procedure.
1. Remove the door handle trim moldings from
the handle. The trim moldings are held in
place with magnets. Place one end of a piece
of tape in the center of the molding, and
remove molding by pulling on the tape
(Figures 2-15).
2. Remove the door handle screws (Figure 2-15)
and remove the door handle.
3. Install the selected door panel into the exposed
channel.
4. Reinstall the door handle and handle trim
moldings.
NOTE: Extended Grip Full Length Handles, for
thicker raised panels are available from your parts
or product distributor.
All Models except 590
All Models except 590
Screw
