Sub-Zero 501R User Manual

COMPONENT INFORMATION
2-9
Refrigerator Drawer and Freezer Basket
Assemblies - All Models
The crisper drawer and roll-out basket drawer are
similar in design. Replacement parts include
fronts, windows, baskets and drawers (Figure 2-
23).
1. Remove the screws from the bottom of the
assembly front.
NOTE: These screws are not used on the crisper
assy.
2. Release the tabs on the top corners of the
fronts using a flat-blade screwdriver. Depress
the tab and pull the front forward slightly so
the tab will not relock, then repeat for the
other side.
3. To reassemble, hold windows and slides in
place (if used). Position the bottom of the
front piece over the lower tabs, then secure to
the the top tabs. Install the screws (if used)
through the bottom of the front piece.

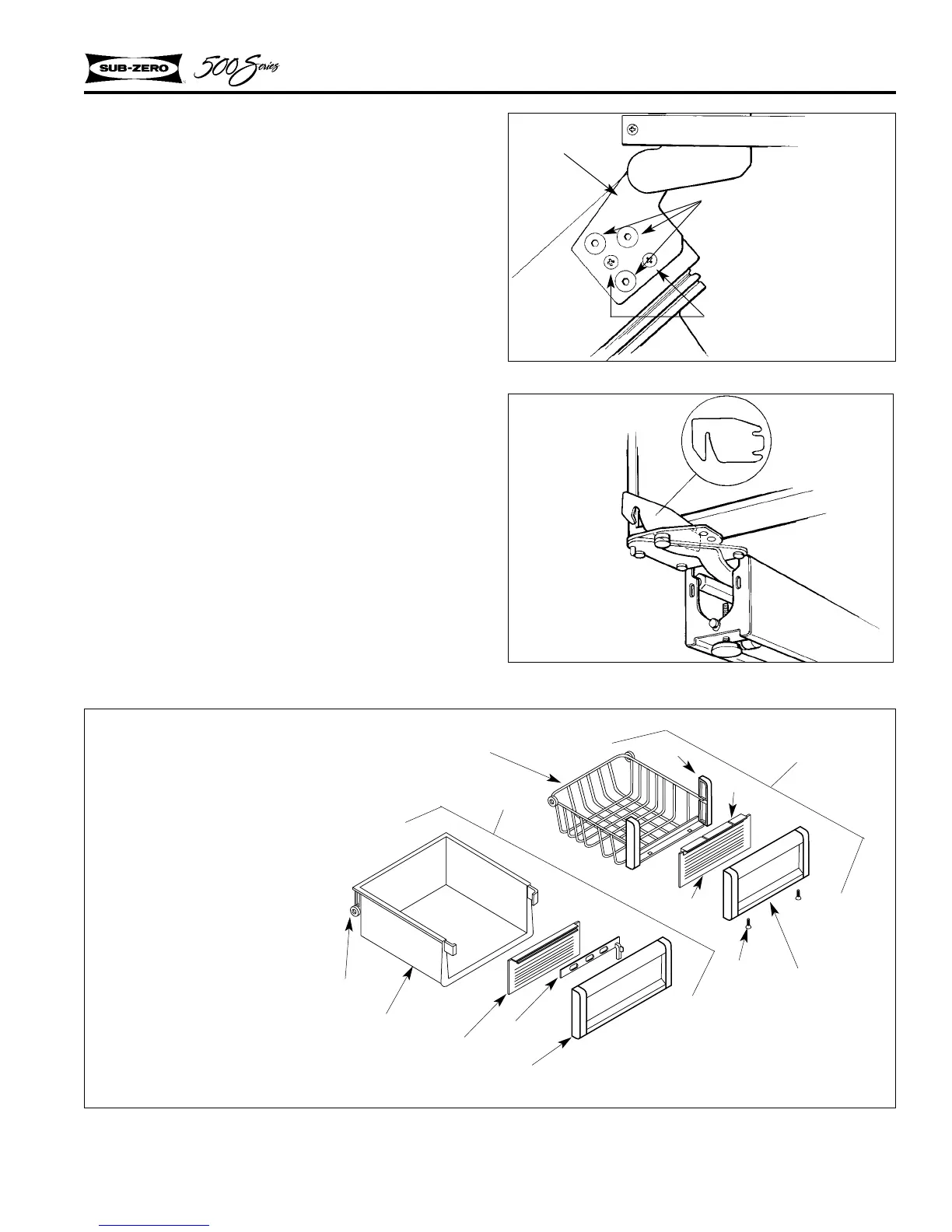

Figure 2-21. Door Adjustment
Discard two Phillips head
screws
Loosen screws to allow
adjustment of door hinge
Top door
hinge
Figure 2-22. #0183100 Hinge Spacer Installation
Insert spacer to
raise door
Figure 2-23. Crisper and Roll-Out Basket Assemblies
1. Crisper Drawer Assy.
2. Crisper Drawer
3. Crisper Drawer Front
4. Crisper Glass Front
5. Vent Slide
6. Roll-Out Basket Assy.
7. Roll-Out Drawer Window
8. Roll-Out Drawer Front
9. Roll-Out Basket
10. Screws
11. Retainer, Glass
12. Retainer, Basket
13. Roller & Screw
2
13
1
9
12
11
6
7
8
10
4
5
3
