ENGINE CONTROL SYSTEM 3-53

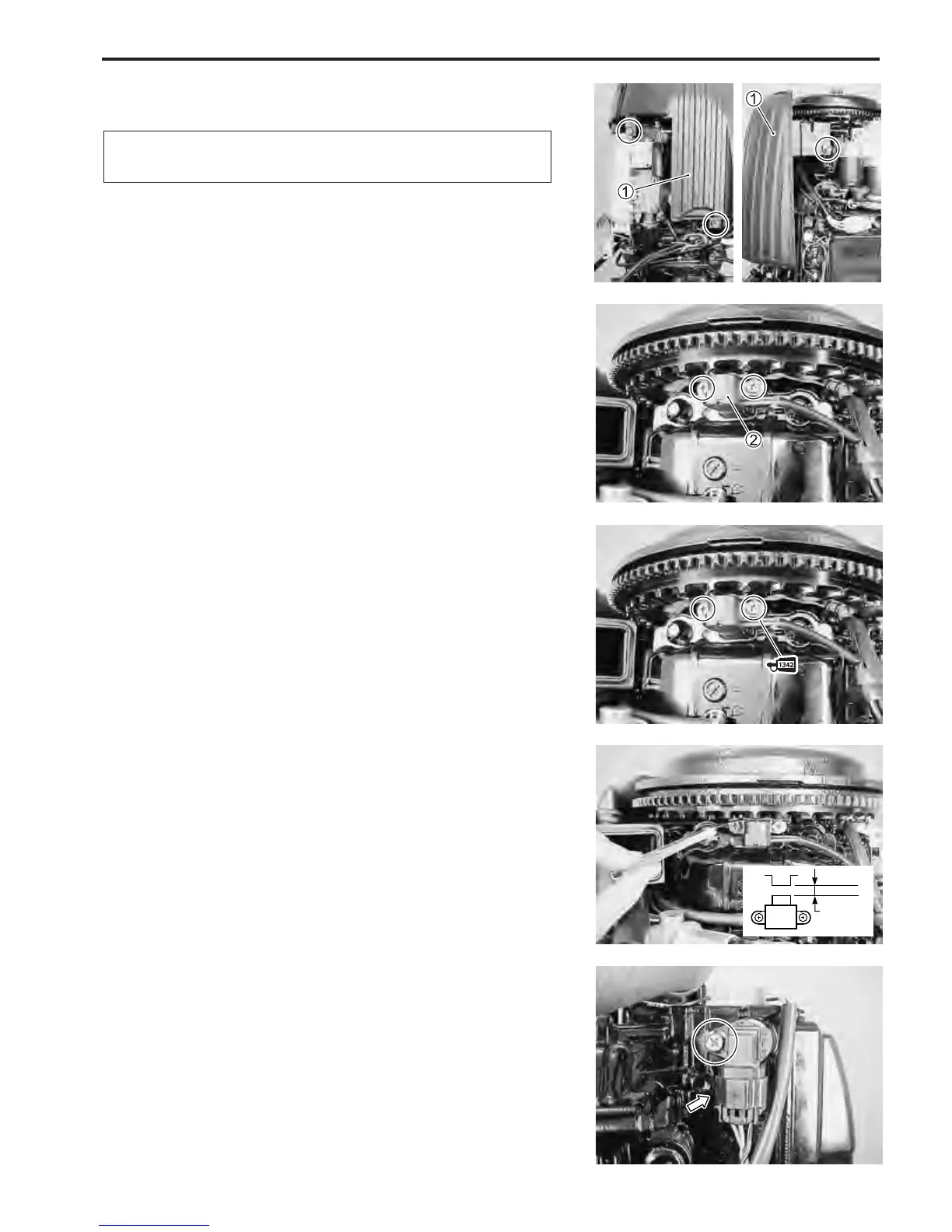

CKP SENSOR
REMOVAL
Prior to removing CKP sensor :
• Disconnect battery cables from battery.
1. Remove flywheel cover.
2. Remove three (3) bolts and air silencer case 1.
Disconnect IAT sensor lead wire connector at IAT sensor.
3. Disconnect CKP sensor lead wire connector in electric parts
holder.
4. Remove two (2) bolts and CKP sensor 2.
INSTALLATION
Installation is reverse order of removal with special attention to
the following steps.
• Apply Thread Lock 1342 to sensor mounting bolts.
J 99000-32050 : Thread Lock 1342
• Install CKP sensor with air gap of 0.75 mm between sensor
and reluctor bar on flywheel, then tighten sensor mounting
screw securely.
Air gap : 0.75 mm (0.030 in.)
CMP SENSOR
REMOVAL
1. Disconnect CMP sensor lead wire connector at CMP sen
sor.
2. Remove bolt and CMP sensor.
INSTALLATION
Installation is reverse order of removal.
