6-2 POWER UNIT

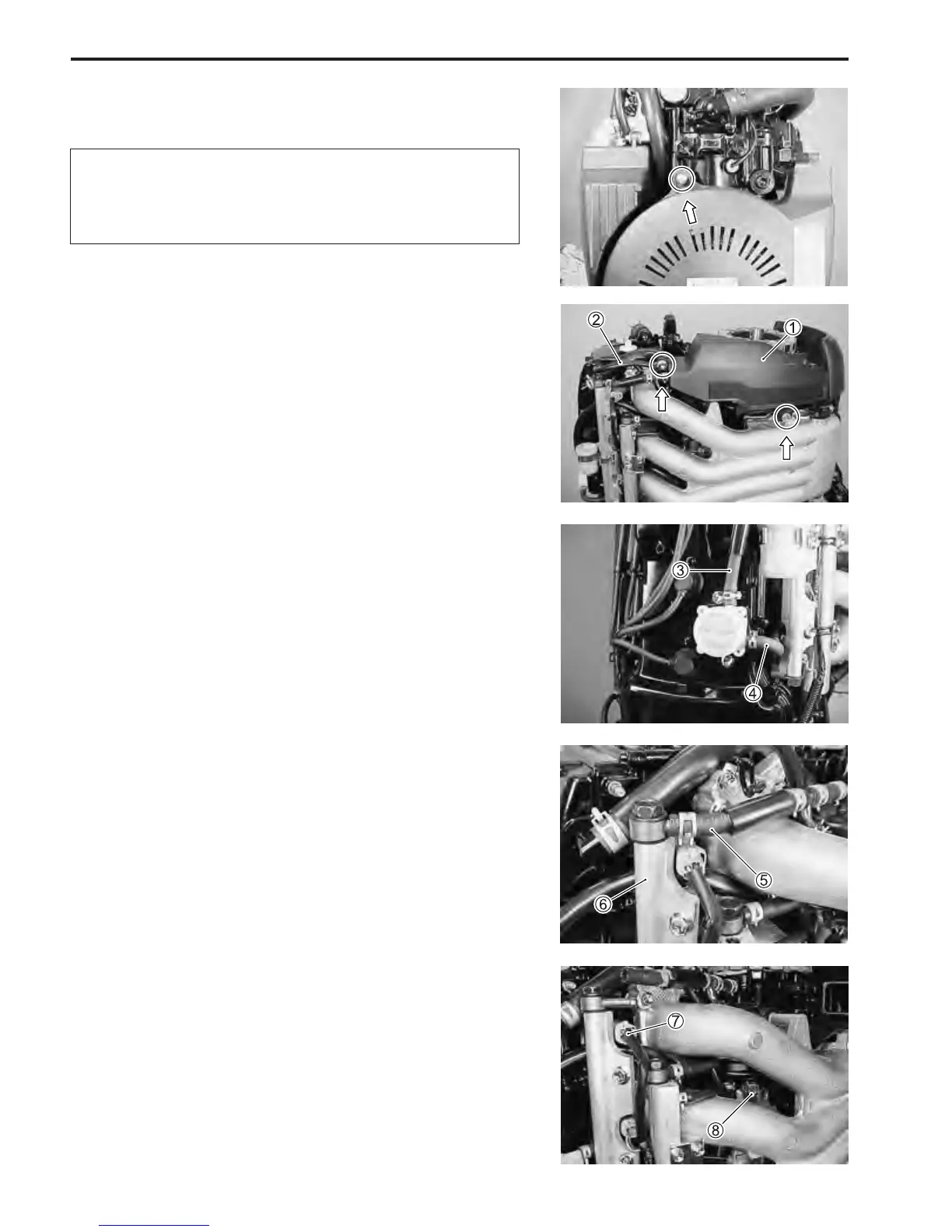

INTAKE MANIFOLD ASSEMBLY
REMOVAL
Before removing intake manifold :
• Relieve fuel pressure. (See page 5-3)
• Disconnect battery cables from battery.
• Remove both side covers. (See page 7-2)
1. Remove flywheel cover.
2. Remove two bolts and air duct 1.
3. Remove evaporation hose 2 from cylinder head cover.
4. Disconnect fuel outlet hose 3 and fuel inlet hose 4 from
low pressure fuel pump.
5. Loosen clamp and place a large cloth over end of fuel feed
hose 5.
Slowly pull fuel feed hose from fuel delivery pipe 6.
Drain any excess fuel in hose into a small container.
6. Disconnect four fuel injector connectors 7.
7. Disconnect high pressure fuel pump connector 8 from fuel
vapor separator.
To Next Page
