POWER TRIM AND TILT 8-19
OPERATION
The power trim and tilt system is operated by a “rocker” type switch (protected by a rubber thumb pad) on top
of the remote control box handle.
When the switch is depressed, power is delivered to the electric motor via the relevant relay. The relay with the
Blue wire connected to the PTT pump is for trim / tilt “UP”, while the relay with the Green wire is for trim / tilt
“DOWN”.

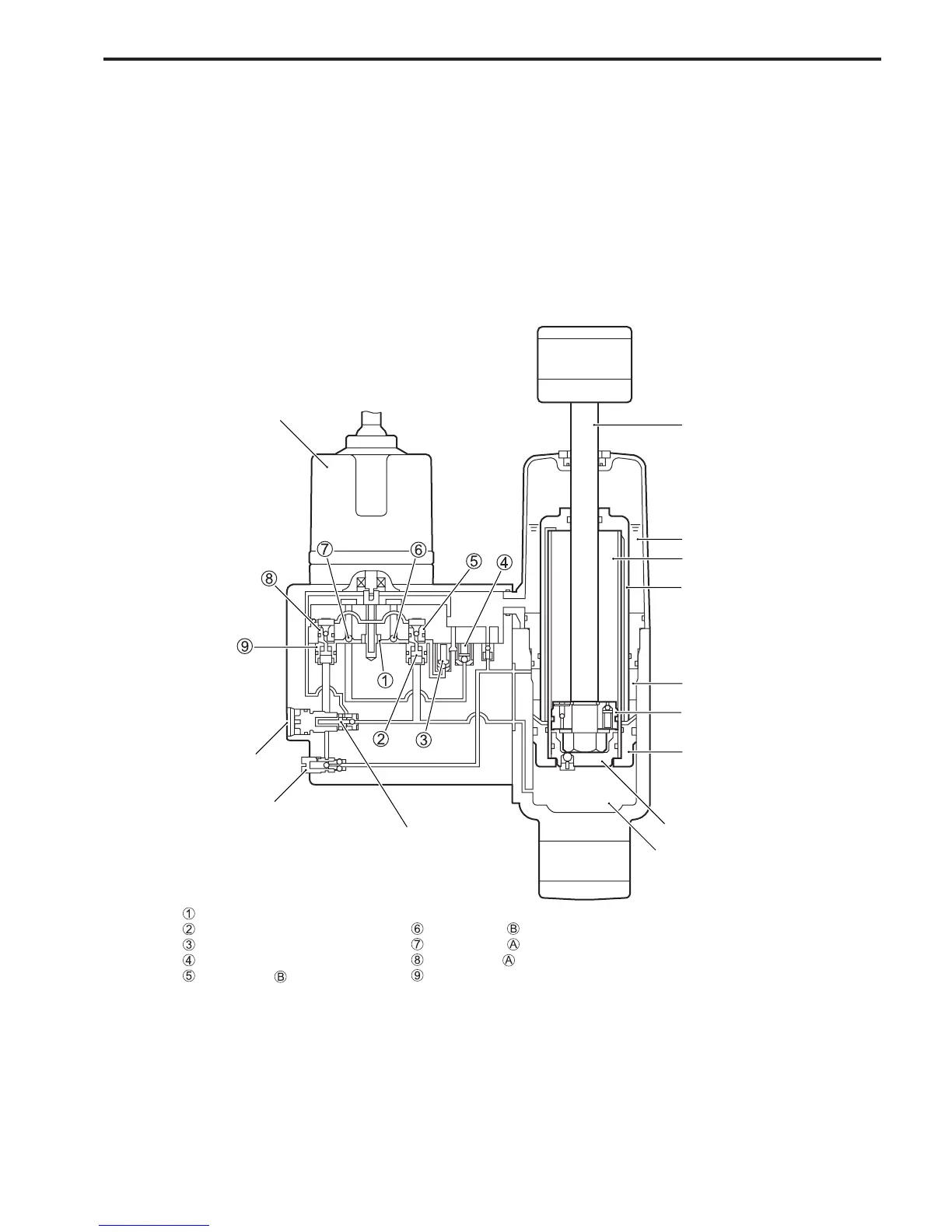

COMPONENTS
Tilt rod
Oil reservoir
Tilt cylinder upper chamber
Floating tube
Trim cylinder upper chamber
Tilt piston
Trim piston
Free piston
Lower cylinder chamber
Thermal valve
2-way valve
Manual release valve
PTT motor
Gear pump
“UP” pressure main check valve
“UP” relief valve
“DOWN” relief valve
Spool valve
Check valve
Check valve
Spool valve
“DOWN” pressure main check valve
