DF100 “K9” (’09) MODEL 19-25

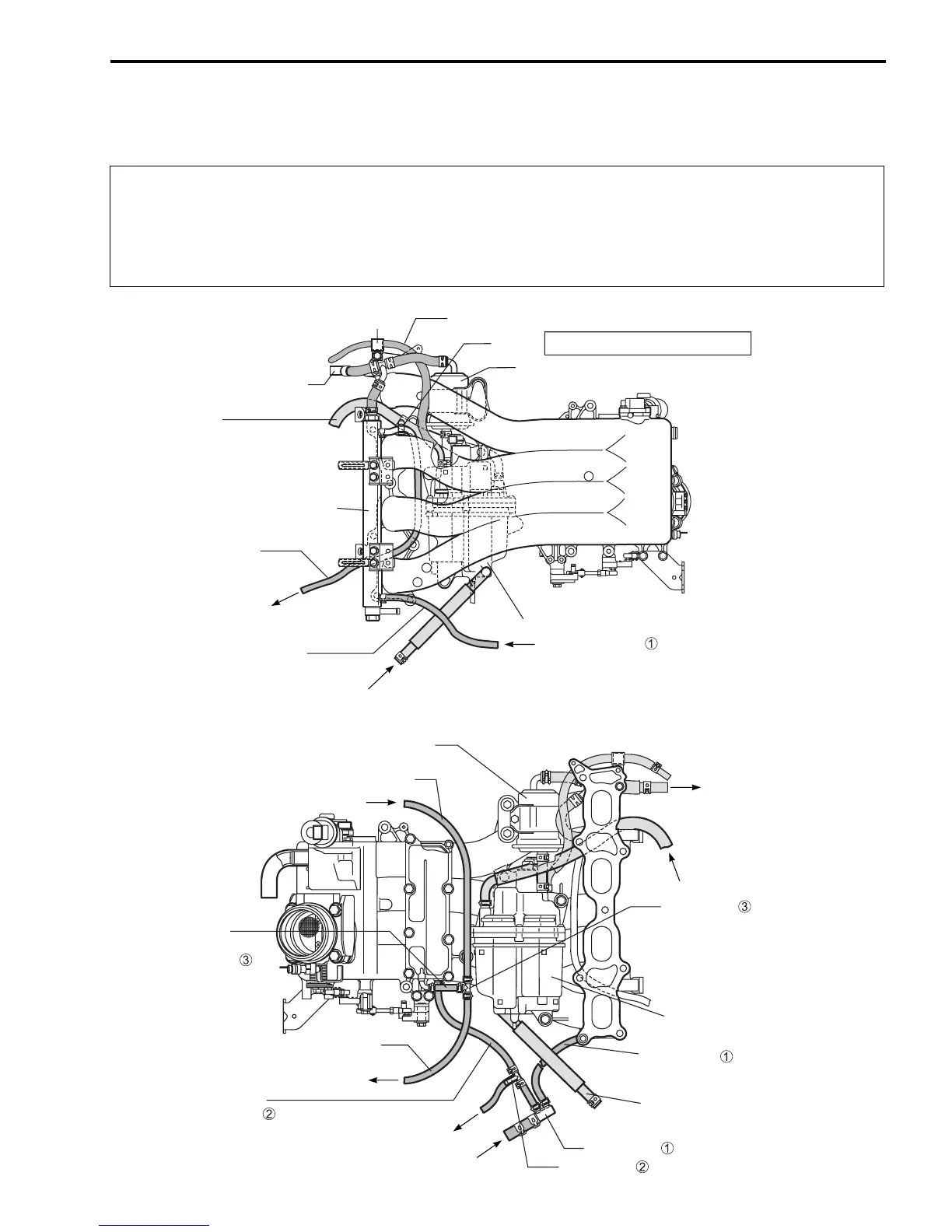

FUEL/WATER HOSE ROUTING
• Do not over-bend (kink) or twist hoses when installing.
• When installing hose clips, position tabs to avoid contact with other parts.
• Check that hoses do not contact rods and levers during either engine operation or standstill.
• Extreme care should be taken not to cut, abrade or cause any other damage on hoses.
• Care should be taken not to cause hoses to be compressed excessively by any clamp when fitted.
High pressure fuel filter
Evaporation hose (Fuel vapor separator to Cylinder head cover)
Fuel hose
(Low pressure fuel pump
to Fuel vapor separator)
Fuel vapor separator
Clamp
Fuel hose/Protector
(3-way joint to Fuel
delivery pipe)
Fuel return pipe
Water hose
from Fuel return pipe
to Pilot water tube
Fuel hose/Protector
(Fuel return pipe to Fuel
vapor separator)
3-way joint
Water hose
from Crankcase upper
High pressure
.
fuel filter
to Fuel delivery pipe
Fuel vapor separator
from Engine holder
to Crankcase lower
Water hose
from 3-way joint
Clamp: Fix fuel house and water hose.
3-way joint
3-way joint
from Low pressure
fuel pump
Water hose
Water hose
(3-way joint to
Fuel return pipe)
Water hose
(3-way joint to Intake monifold)
Water hose
(Intake manifold
to 3-way joint )
to Water return pipe
To Next Page
