DF140 “K2” (’02) MODEL 11-29

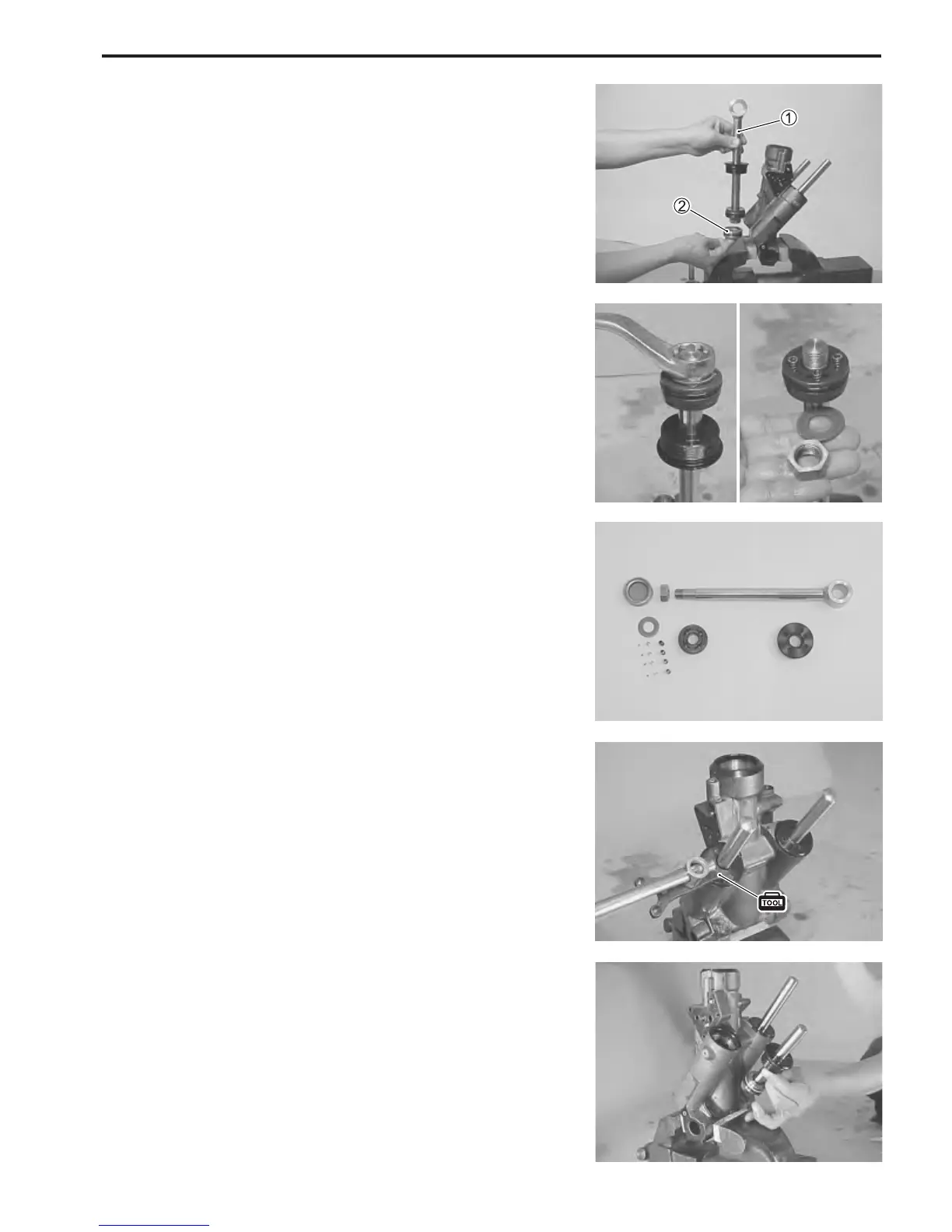

Disassembly of tilt rod/piston assembly
Unscrew the piston retaining nut from the bottom of the tilt rod
and remove the washer.
Carefully retain and account for four shock valves, each com-
posed of spring, rod and ball.
Remove the piston assembly and PTT cylinder head from the
tilt rod by sliding them down and off the rod end.
Disassembly of trim rod / piston assembly
Using special tool, unscrew the trim cylinder head.
\ 09944-09420: PTT cylinder cap tool
Pull the tilt rod/piston assembly 1 out of the cylinder body.
Remove the free piston 2 from the cylinder body.
Pull the trim rod/piston assembly out of the trim cylinder.
