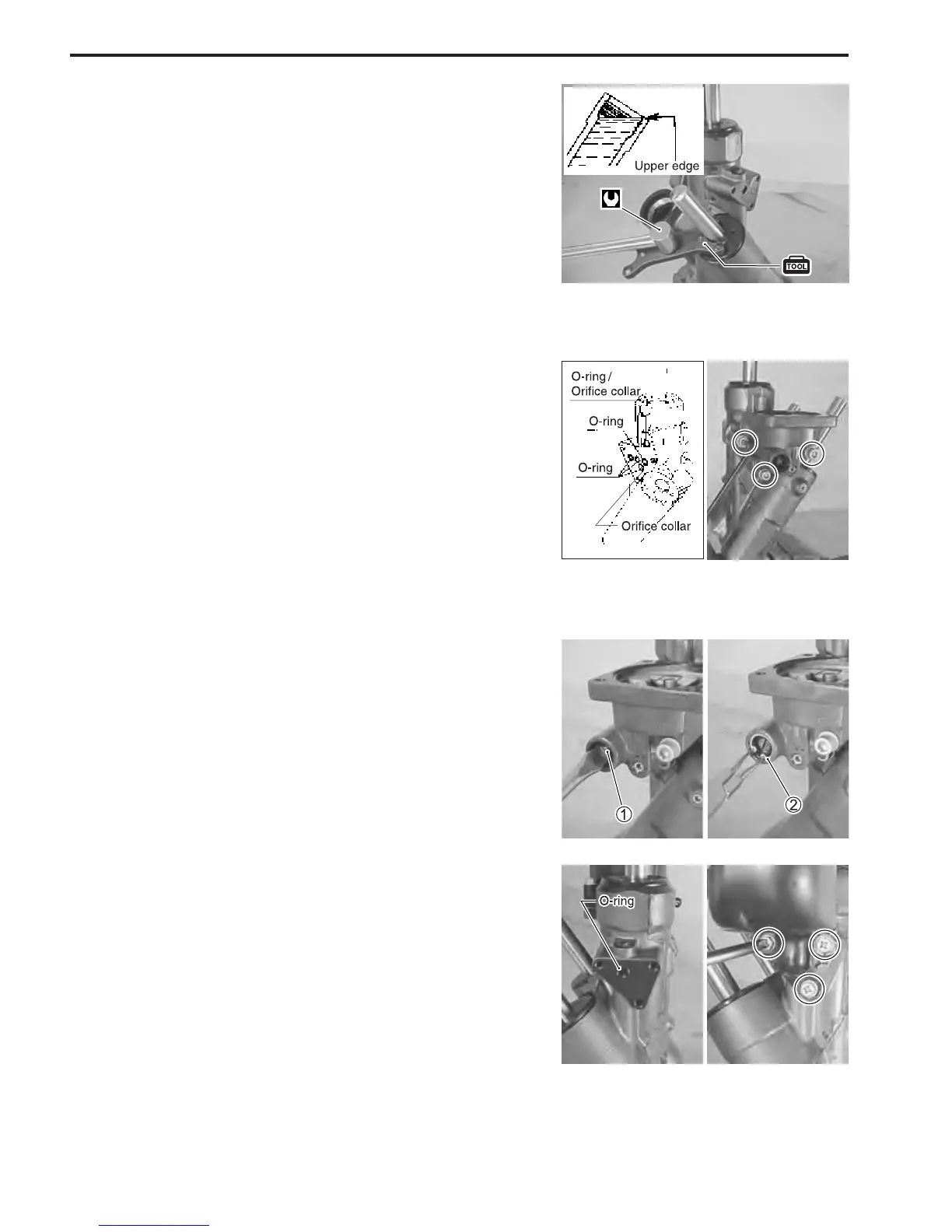

11-32 DF140 “K2” (’02) MODEL
TRIM ROD
Pour PTT fluid into the trim cylinder until it is topped off.
Insert the trim rod/piston assembly into cylinder and thread the
trim cylinder head by hand until fully seated.
Tighten the trim cylinder head to specified torque using special
tool.
" Trim cylinder head: 78 N
.
m (7.8 kg-m, 56.5 lb-ft)
\ 09944-09420: PTT cylinder cap tool
PTT PUMP CASE
Install five (5) O-rings and orifice collars to PTT cylinder body.
NOTE:
Lubricate O-rings with PTT fluid before installing PTT cylinder
body.
Install PTT pump case, then tighten three (3) screws to speci-
fied torque.
" PTT pump case screw: 3.5 N
.
m (0.35 kg-m, 2.5 lb-ft)
MANUAL RELEASE VALVE
Oil and install the manual release valve 1.
Tighten the valve to specified torque.
Install snap ring 2.
" Manual release valve: 3.5 N
.
m (0.35 kg-m, 2.5 lb-ft)
PTT MOTOR
See the PTT Motor Installation section on page 36.
RESERVOIR
Install O-ring and reservoir, then tighten bolts to specified torque.
""
""
" Reservoir bolt: 5 N
.
m (0.5 kg-m, 3.5 lb-ft)
AIR BLEEDING
• Pour recommended PTT fluid in to reservoir until specified
level.
• Perform the air bleeding procedure.
For air bleeding, see page 11-25.
