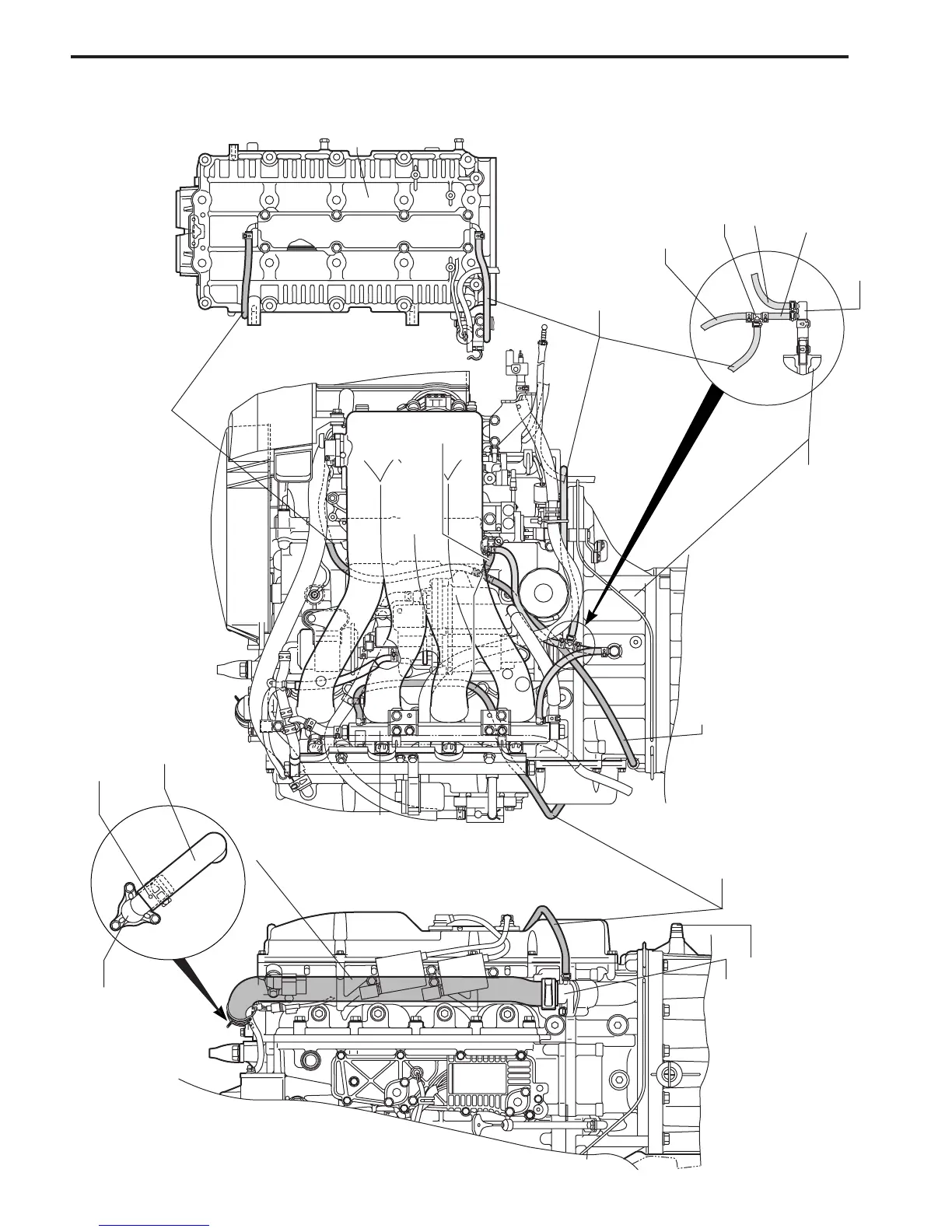

12-14 DF90/115 “K2” (’02) MODEL
Crankcase
Water hose
(Crankcase upper to 3-way joint 3)
Water hose (3-way joint 2
to Intake manifold)
3-way joint 2
Water hose
(3-way joint 1 to
Fuel return pipe)
3-way joint 1
Water hose
(3-way joint 2 to Crankcase lower)
Engine holder
Water hose
(3-way joint 3 to Pilot water tube)
Water hose
(Fuel return pipe to
Water return pipe)
Pilot water tube
Fuel return pipe
Water return hose
Water return hose
White paint mark
Thermostat cover
3-way joint 3
Water hose
(3-way joint 3
intake manifold)
Water hose
(Intake manifold to
3-way joint 3)
Water hose
(3-way joint 1 to
3-way joint 2)
Water return pipe (Engine holder)
To Next Page
