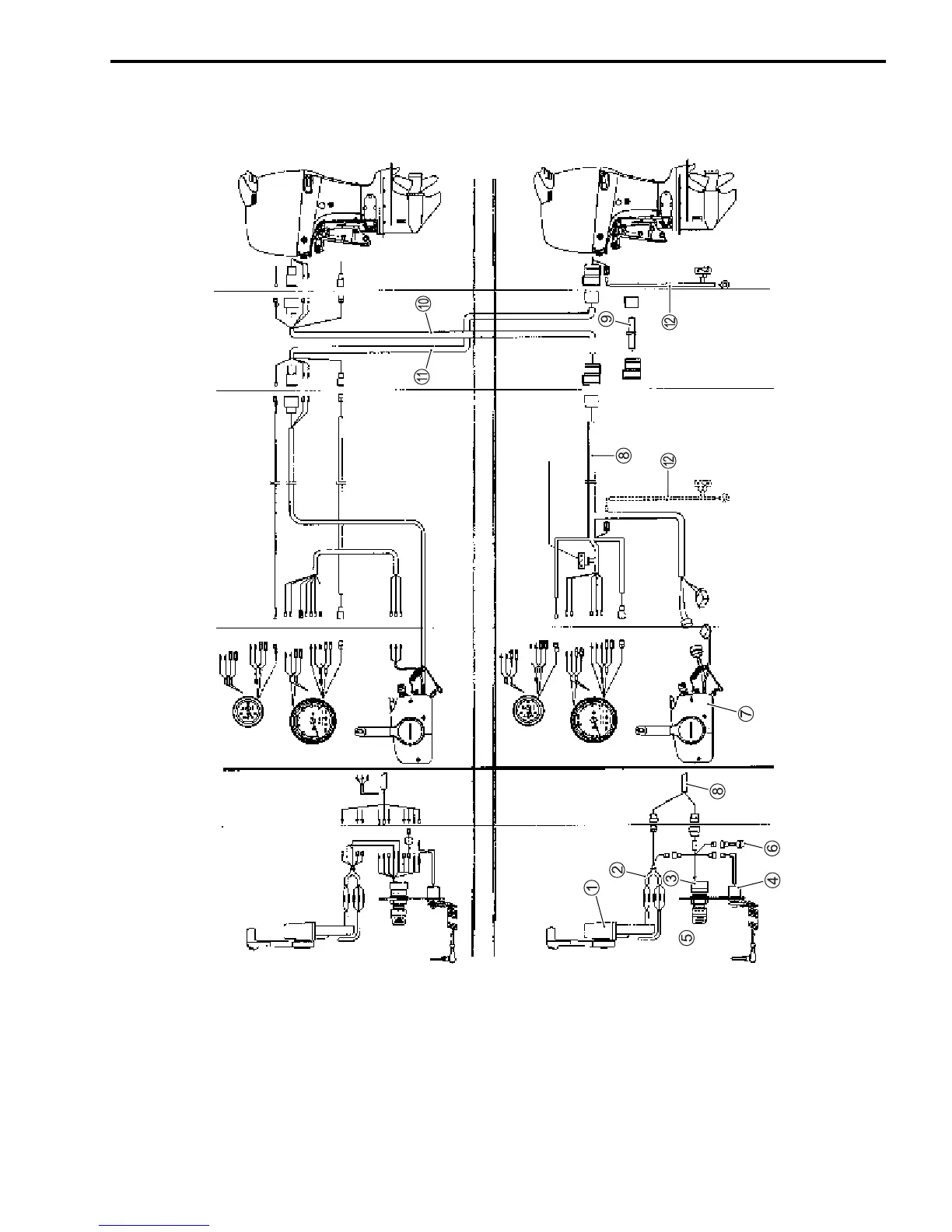

DF90/115/140 “K5” (’05) MODEL
15-23
1 Top-mount remote control box 7 Side-mount remote control box
2 PTT switch extension wire 8 Remote control wire
3 Ignition switch 9 Extension wire
4 Emergency stop switch 0 Remote control wire adaptor
5 Ignition & stop switch panel A Remote control wire adaptor
6 Caution buzzer B Sub-battery cable (3.7 m)
DF90-140 2004 model
DF90-140 2005 model
TOP OR FLASH MOUNT
ENGINE
REMOCON
HARNESS
ADAPTOR
FUSE FOR METER
TRIM GAUGE
SIDE MOUNT
REMOCON HARNESS
TACHOMETER
