Suzuki RM-Z250 Owner's Service Manual

KICK STARTER 8-3

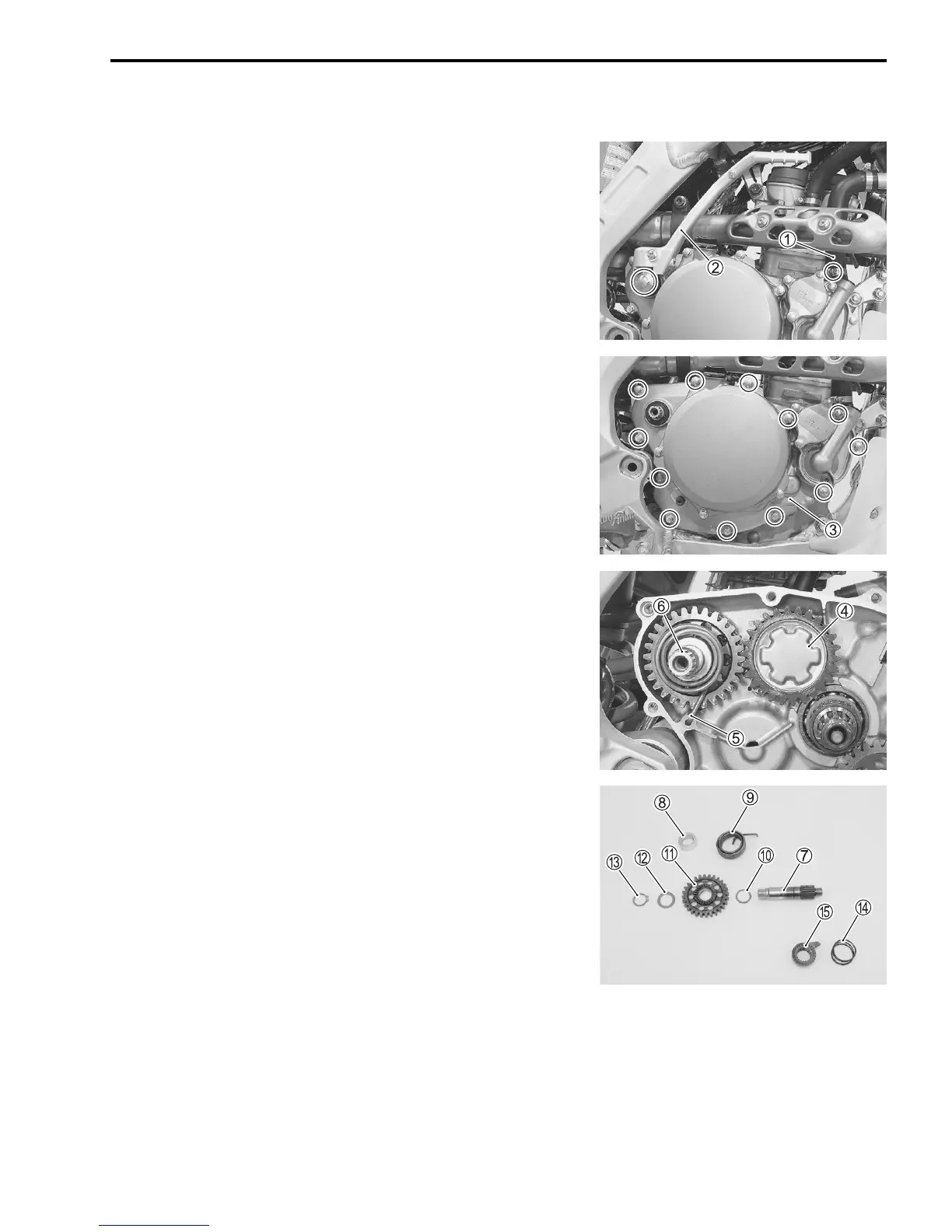

KICK STARTER
REMOVAL
• Drain engine oil. (!2-12)
• Drain engine coolant. (!13-3)
• Remove the brake pedal. (!16-18)
• Disconnect the radiator hose

1.
• Remove the kick starter lever

2.
• Remove the right crankcase cover

3, dowel pins and gasket.
• Remove the clutch assembly. (!7-7)
• Remove the kick starter idle gear

4.
• Remove the end of return spring

5.
• Remove the kick starter shaft assembly

6.
• Remove the following parts from the kick starter shaft

7.
Guide

8 Washer

B
Return spring

9 Snap ring

C
Washer

0 Spring

D
Kick starter drive gear

A Kick starter

E
" 09900-06107: Snap ring pliers
