COOLING SYSTEM 13-7

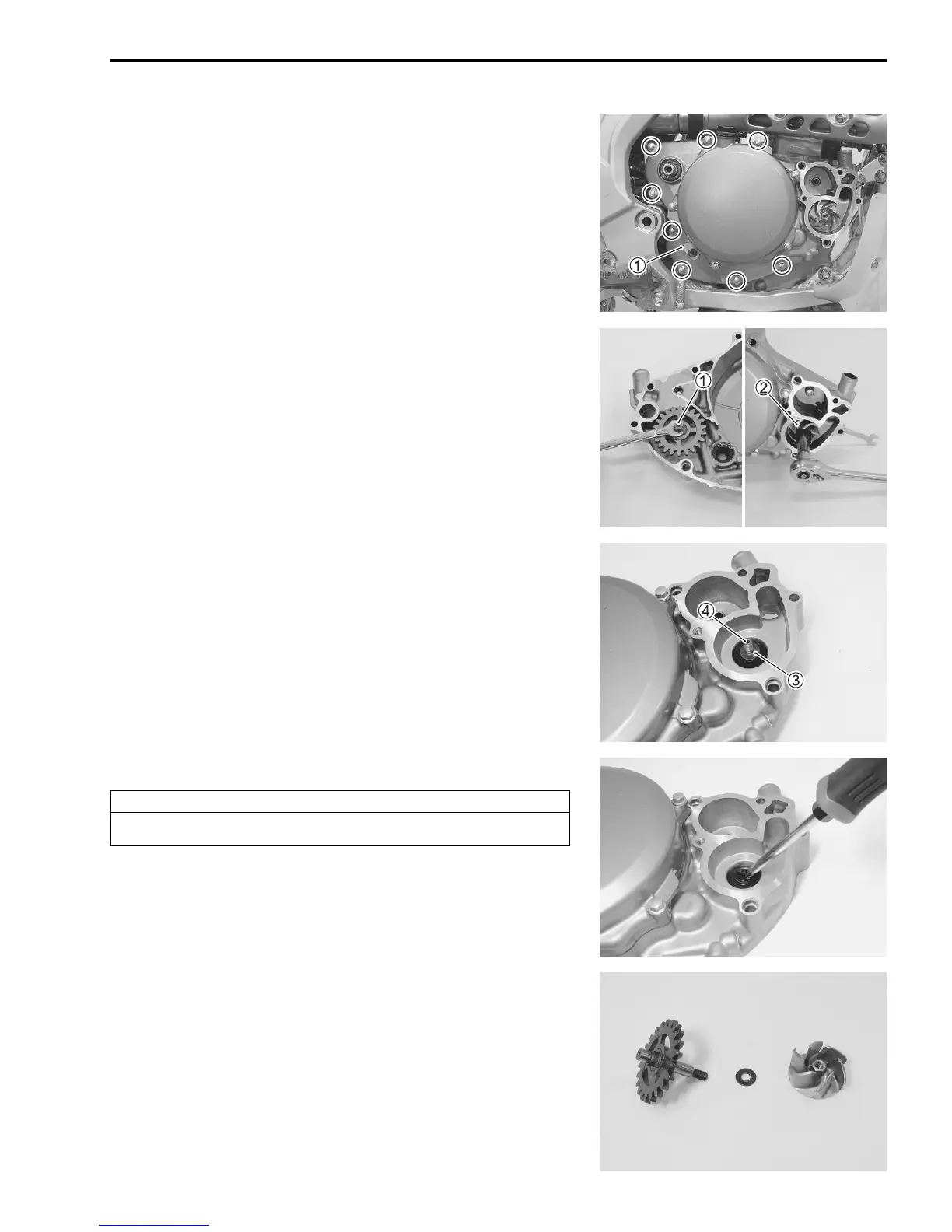

CRANKCASE COVER
• Remove the brake pedal. ("16-18)
• Remove the kick starter lever. ("8-3)
• Remove the right crankcase cover

1.
IMPELLER AND GEAR SHAFT
• Hold the water pump shaft

1 with a wrench and remove the
impeller

2.
• Remove the washer

3 and water pump shaft

4.
• Remove the oil seal.
NOTE:
If there is no abnormal condition, the oil seal removal is not nec-
essary.
INSPECTION
IMPELLER AND WATER PUMP SHAFT
• Inspect the impeller and water pump shaft for damage.
• Replace the defective parts with a new one if necessary.
CAUTION
Replace the removed oil seal with a new one.
