14-4 ELECTRICAL SYSTEM
CONSTRUCTION
ELECTRICAL SYSTEM

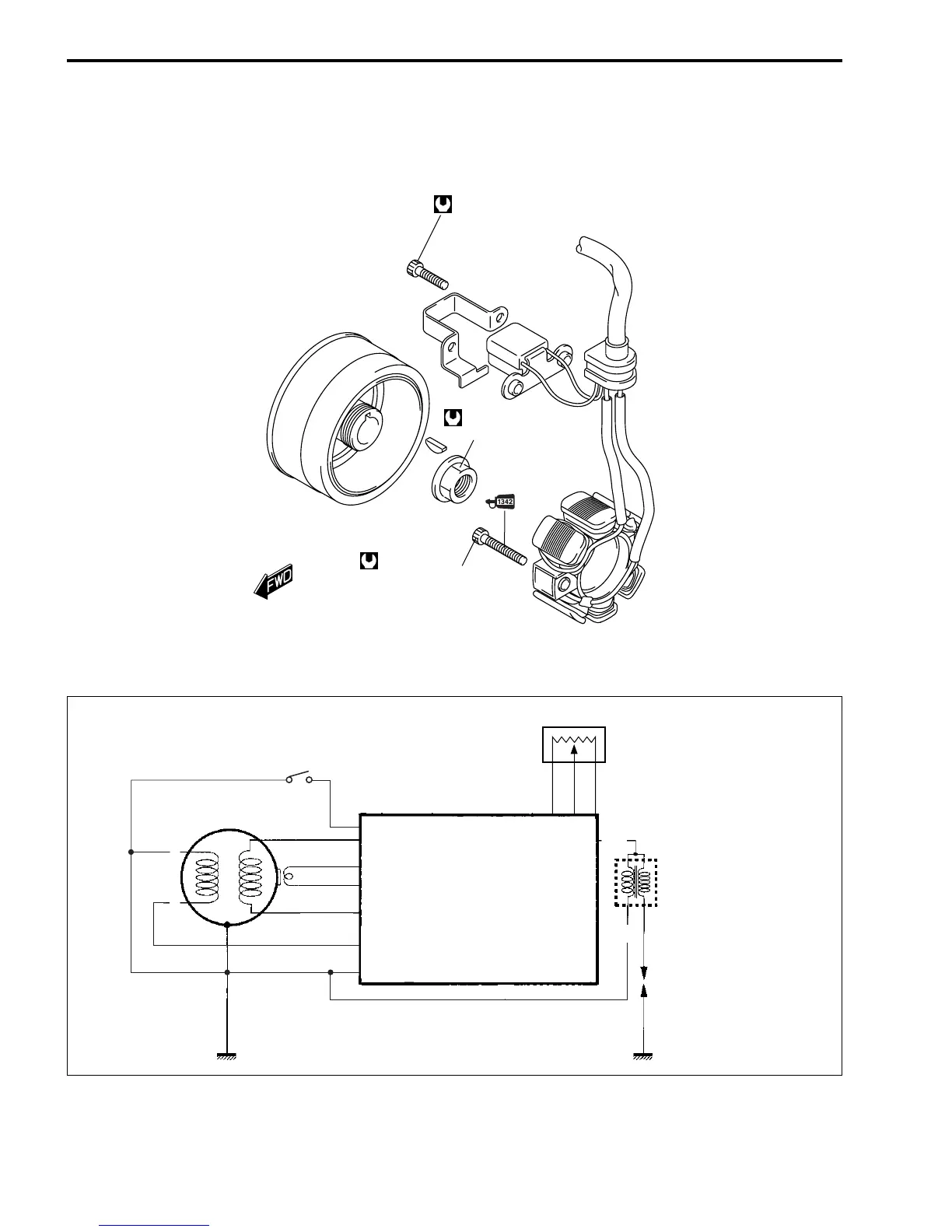

ELECTRICAL CIRCUIT
WIRE COLOR:
G: Green B/Bl: Black with Blue tracer B/W: Black with White tracer
R: Red B/Br: Black with Brown tracer B/Y: Black with Yellow tracer
Y: Yellow B/G: Black with Green tracer R/W: Red with White tracer
B/R: Black with Red tracer W/Bl: White with Blue tracer
4.5 N
.
m
(0.45 kgf-m, 3.25 lb-ft)
80 N
.
m
(8.0 kgf-m, 58.0 lb-ft)
10 N
.
m
(1.0 kgf-m, 7.0 lb-ft)
Magneto
Engine stop switch
CDI unit
Throttle position sensor
Ignition coil/plug cap
Spark plug
B/R
B/R
B/W
B/W
R
Y
G
B/R
R/W
R
Y
G
B/G
B/G
B/G
B/W
B/W
B/W
B/W
B/W
B/W
B/W
B/W
B/W
YYYY
B/Y
B/Y
B/Y
B/Bl
B/Bl
B/Br
B/Br
B/Bl
B/Br
W/Bl
W/Bl
W/Bl
B/W
