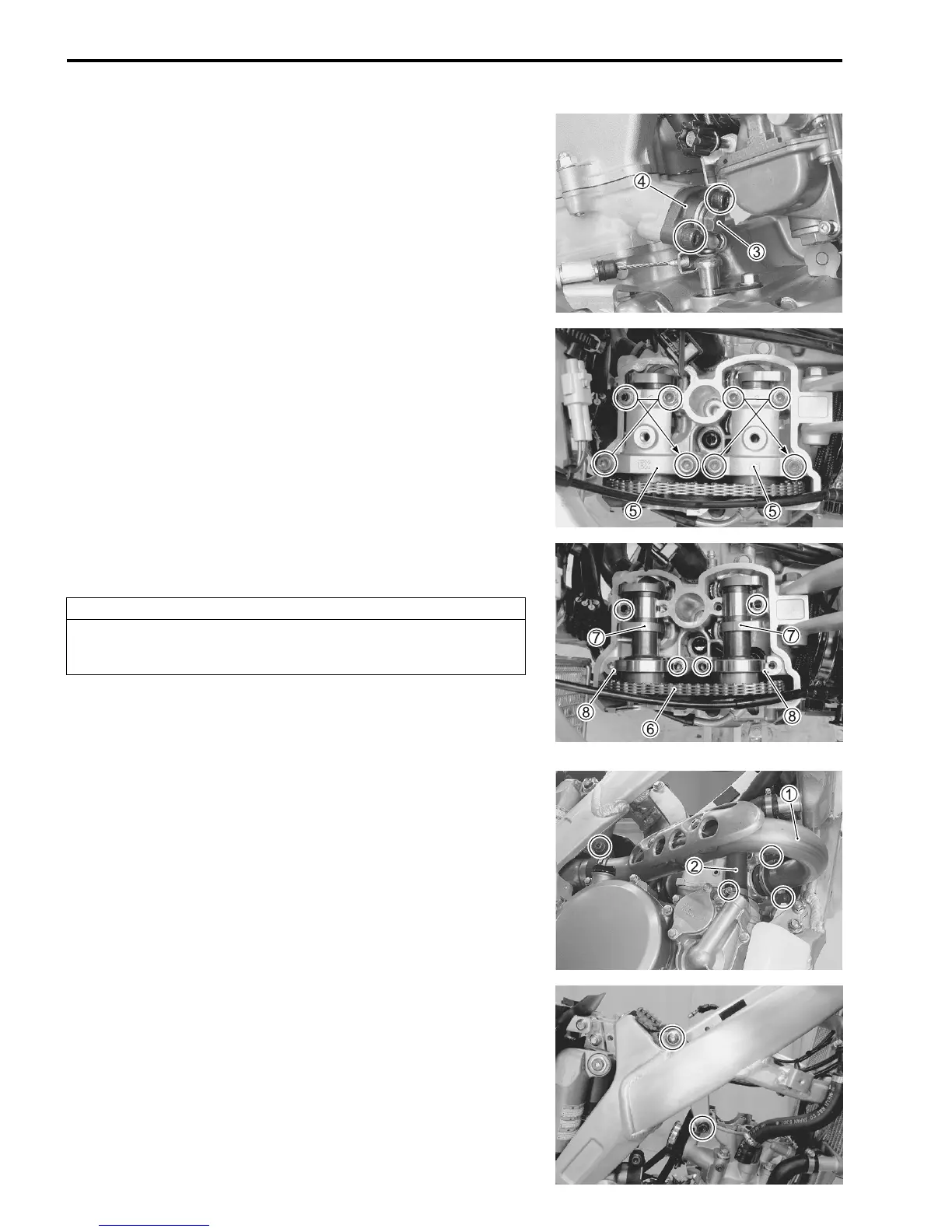

6-4 CYLINDER HEAD, CYLINDER AND PISTON

• Remove the cam chain tension adjuster cap bolt



3, bar and

spring.

• Remove the cam chain tension adjuster



4 and its gasket.

• Remove the camshaft journal holders



NOTE:

Loosen the camshaft journal holder bolts diagonally.

• Disengage the camshafts



7 from cam chain



• Remove the dowel pins and C-rings



CYLINDER HEAD REMOVAL

• Remove the camshafts. (!above)

• Remove the spark plug. (!2-7)

• Remove the carburetor. (!12-5)

• Drain engine coolant. (!13-3)

• Remove the exhaust pipe



1 and gaskets.

• Loosen the clamp and disconnect the radiator hose



• Remove the engine mounting upper brackets.

CAUTION

Do not drop the cam chain



6, dowel pins and C-rings



8 into the crankcase.
