11-6 LUBRICATION SYSTEM
OIL PUMP INSTALLATION

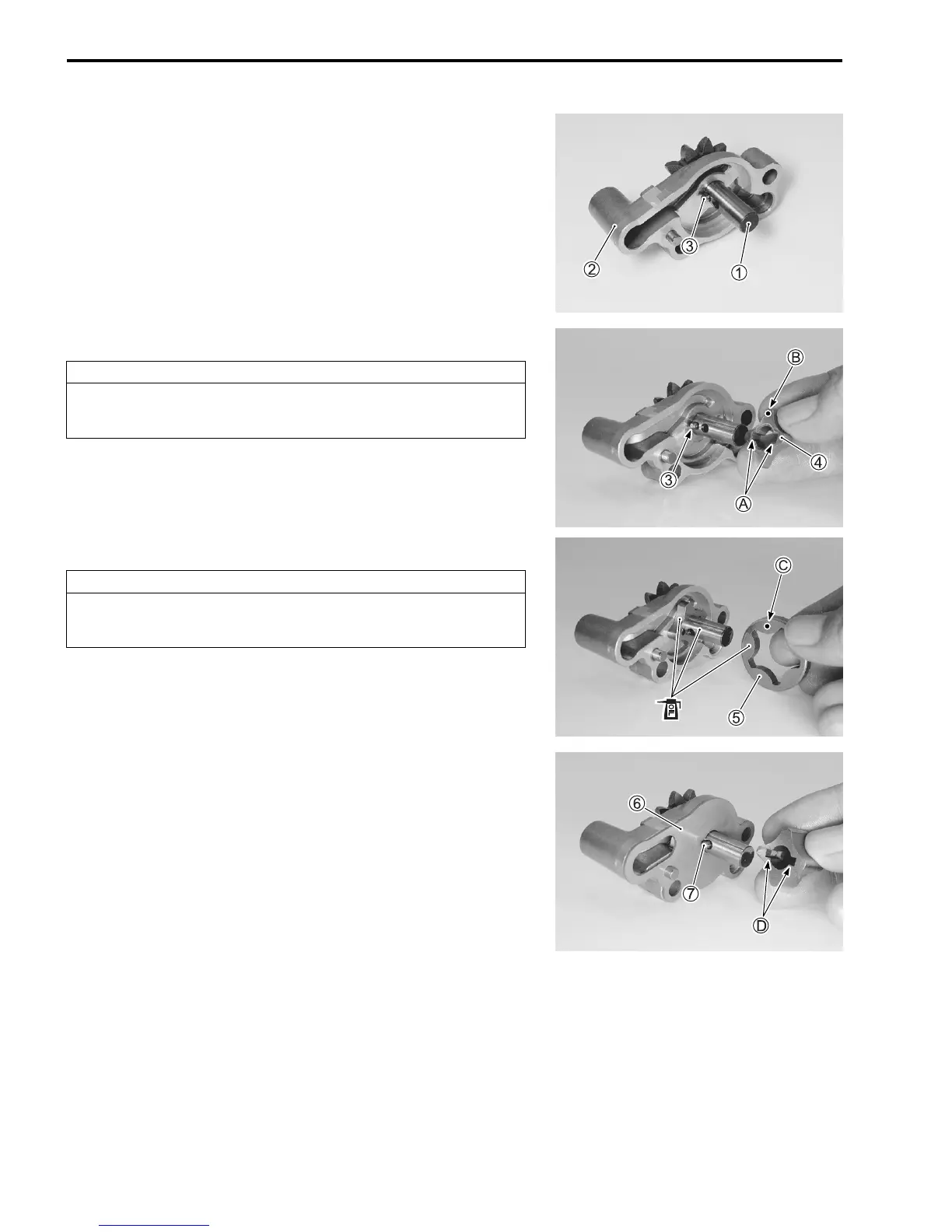

Install the oil pump in the reverse order of removal. Pay attention
to the following points:
• Install the oil pump cover

2 and pin

3 to the oil pump driven
gear shaft

1.
•
Fit the slot

A
of the oil pump No.1 inner rotor

4
to the pin

3
.
• Install the oil pump No.1 outer rotor

5.
• Apply engine oil to the oil pump drive gear shaft, outer rotor
and inner rotor.
• Install the oil pump plate

6 and pin

7.
• Fit the slot

D of the oil pump No.2 inner rotor to the pin

7.
CAUTION
Face the punch mark

B on inner rotor

4 to the oil
pump cover.
CAUTION
Face the punch mark

C on outer rotor

5 to the oil
pump cover.
