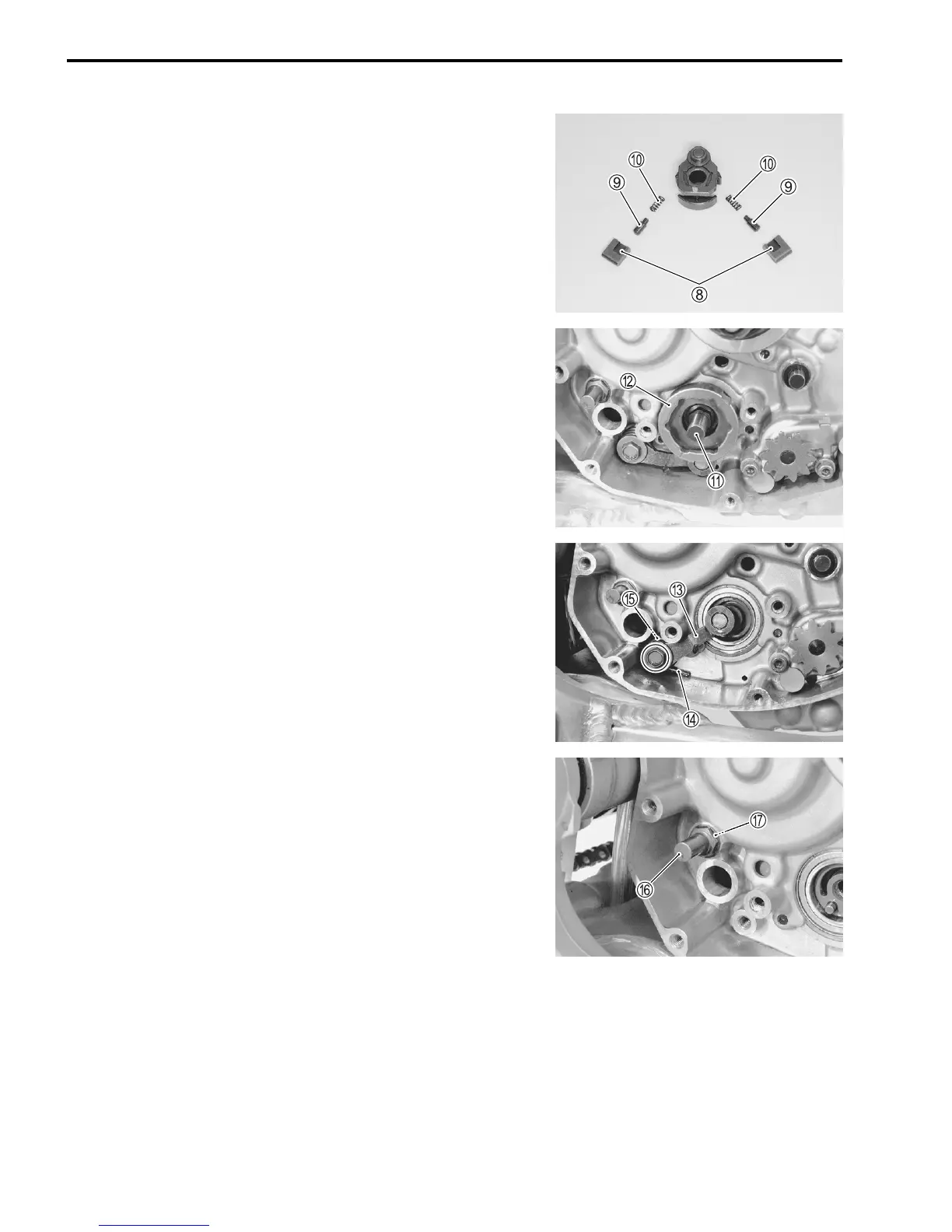

9-4 GEARSHIFTING
• Remove the gearshift pawls

8, pins

9 and springs

0.
• Remove the gearshift cam driven gear pin

A and gearshift
cam stopper plate

B.
• Remove the gearshift cam stopper

C, spring

D and washer

E.
• Remove the gearshift arm stopper

F and washer

G.
