Suzuki RM-Z250 Owner's Service Manual

FUEL SYSTEM 12-7

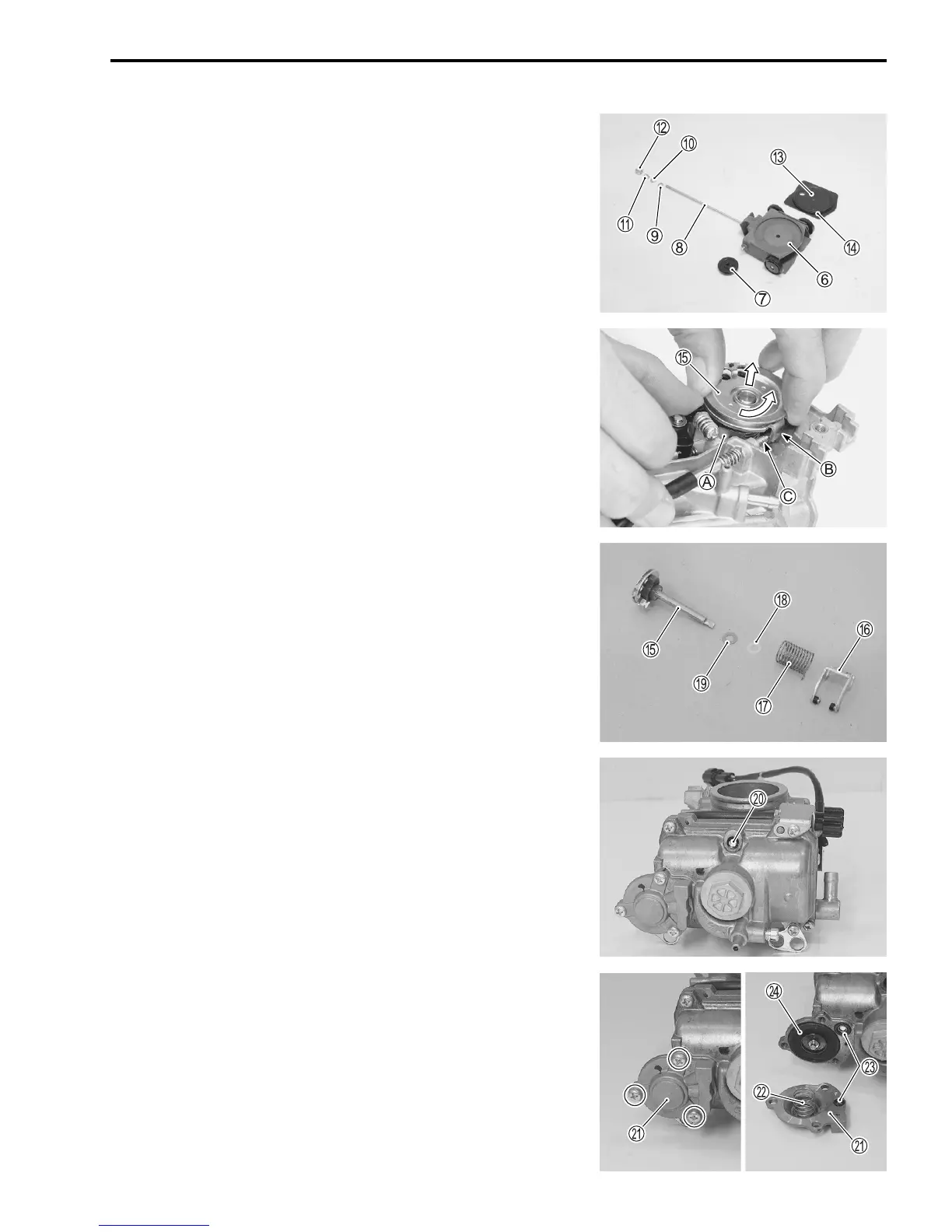

• Disassemble the throttle valve assembly.

6 Throttle valve

A Spring

7 Bearing

B Needle set screw

8 Jet needle

C Floating valve

9 Clip

D Seal

0 Collar
• Remove the throttle shaft

E with the link arm

F, spring

G,
plastic washer

H and steel washer

I.
NOTE:
Turn the throttle shaft

E counterclockwise while holding down
the acceleration pump lever

A and clear the stopper

B of the
pulley from the throttle stop screw

C.
• Remove the pilot screw

J.
NOTE:
Before removing the pilot screw

J, turn it clockwise until it lightly
seats and record the number of turns.
• Remove the acceleration pump cover

K.
• Remove the spring

L, O-rings

M and diaphragm

N.
