Suzuki RM-Z250 Owner's Service Manual

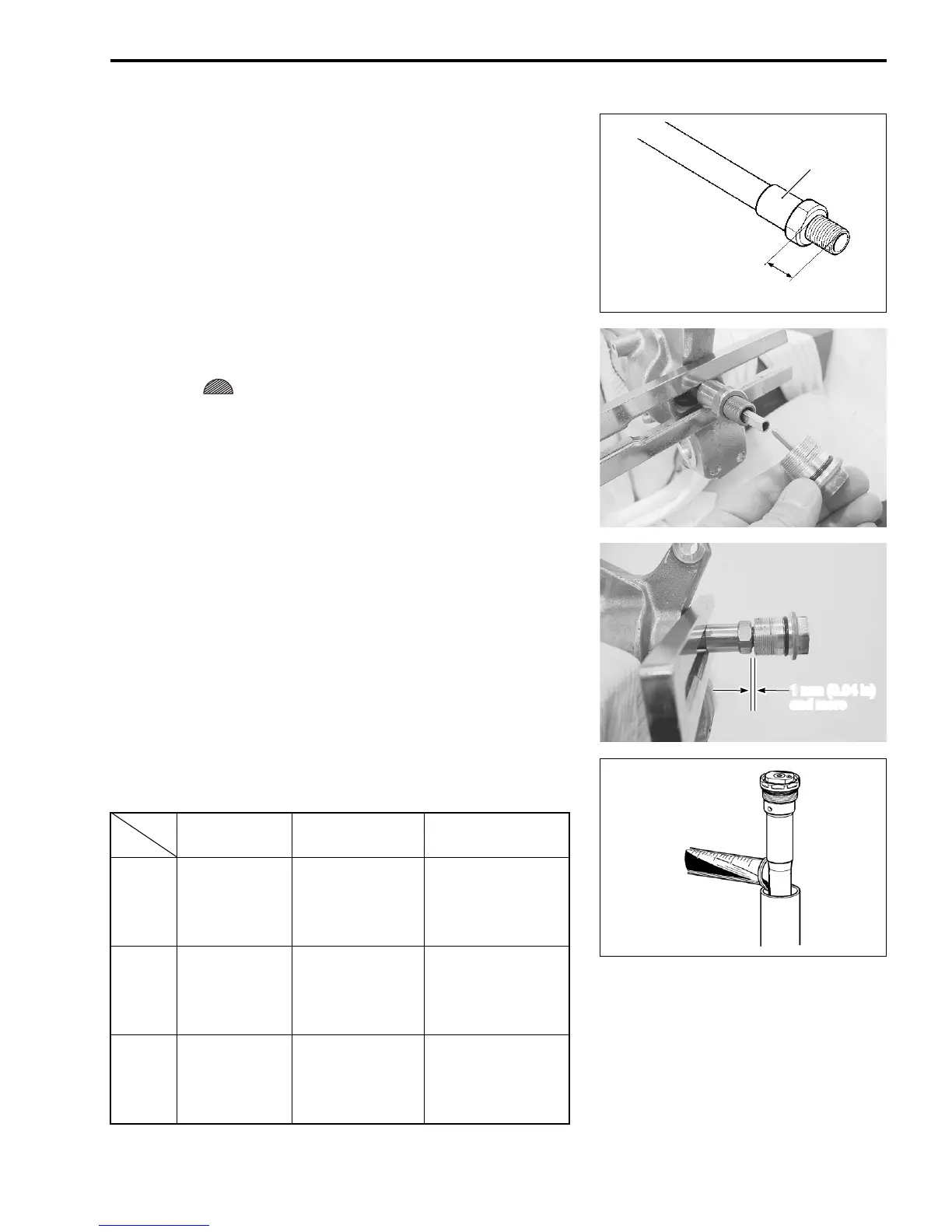

MACHINE TUNING 4-15
• Make sure approx. 10 mm (0.39 in) of inner rod thread is
exposed on the end. (!17-14)
• Install the damper rod assembly. (!17-14)
• Insert the push rod into the inner rod.
• Insert the shaped projection of center bolt into the push
rod. (!17-15)
• Check or adjust the clearance between the lock-nut and cen-
ter bolt to provide more than 1 mm (0.04 in) and more.
(!17-15)
• Tighten the lock-nut/center bolt to the specified torque.
% Lock-nut/center bolt: 22 N·m (2.2 kgf-m, 16.0 lb-ft)
• Tighten the center bolt to the specified torque.
% Center bolt: 70 N·m (7.0 kgf-m, 51.0 lb-ft)
• Pour the specified amount fork oil into the outer tube in accor-
dance with the following table.
# 99000-99001-SS5: SUZUKI FORK OIL SS-05
(or equivalent fork oil)
Approx.10 mm
(0.39 in)
Locknut
1 mm (0.04 in)
and more
SPRING
STD OIL
QUANTITY
OIL QUANTITY
ADJ. RANGE
Soft 51171-37FD0
365 ml
(12.34/12.85
US/Imp oz)
330 – 424 ml
(11.15/11.62 –
14.33/14.93
US/Imp oz)
STD 51171-37FC0
360 ml
(12.17/12.68
US/Imp oz)
325 – 419 ml
(10.99/11.44 –
14.16/14.75
US/Imp oz)
Hard 51171-37FE0
355 ml
(12.00/12.50
US/Imp oz)
320 – 414 ml
(10.82/11.27 –
13.99/14.58
US/Imp oz)
