Suzuki VITARA series Owner's Manual

7-41
INSPECTION AND MAINTENANCE
54P00-01E

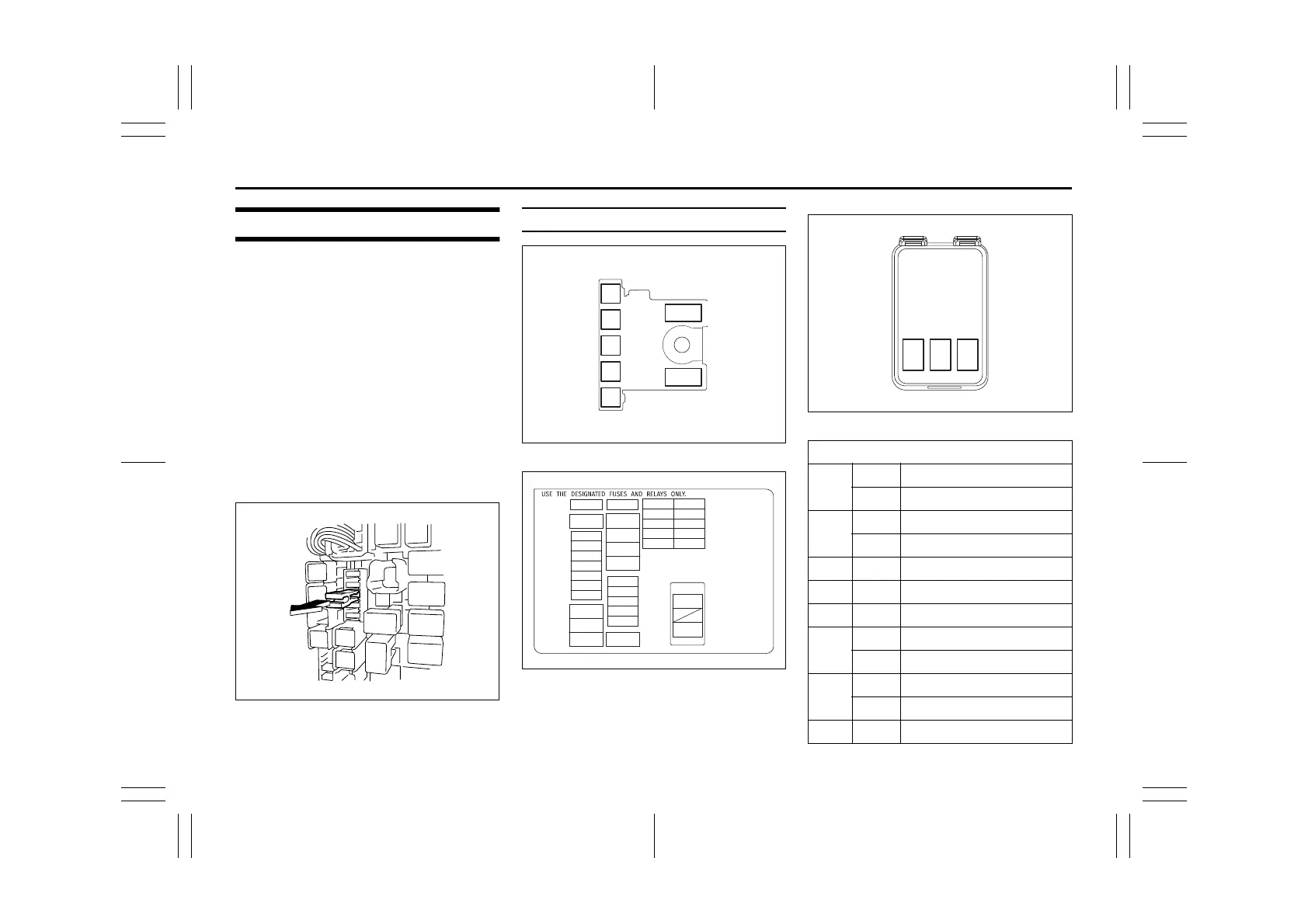

Fuses
Your vehicle has three types of fuses, as
described below:
Main fuse
The main fuse takes current directly from
the battery.
Primary fuses
These fuses are between the main fuse
and individual fuses, and are for electrical
load groups.
Individual fuses
These fuses are for individual electrical cir-
cuits.
To remove a fuse, use the fuse puller pro-
vided in the fuse box.
63J095
Fuses in engine compartment
61MM0B068
54P000706
54P000707
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8) (20)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
(19)
(21)
(22)
(23)
(24)
(25)
(26)
(33)
(34)
(35)
(27)
(28)
(29)
(36)
(30)
(37)
(31)
(32)
(38)
(39)
(40)
(41)
(42)
MAIN FUSE / PRIMARY FUSE
(1)
50 A FL7 (GAS)
60 A FL7 (DIESEL)
(2)
50 A FL6 (GAS)
80 A FL6 (DIESEL)
(3)
100 A FL5
(4)
80 A FL4
(5)
100 A FL3
(6)
60 A FL2 (GAS)
100 A FL2 (DIESEL)
(7)
100 A FL1 (GAS)
120 A FL1 (DIESEL)
(8) 7.5 A Ignition-1 signal 2
(43) (44) (45)
