8-3

EMERGENCY SERVICE

54P00-01E

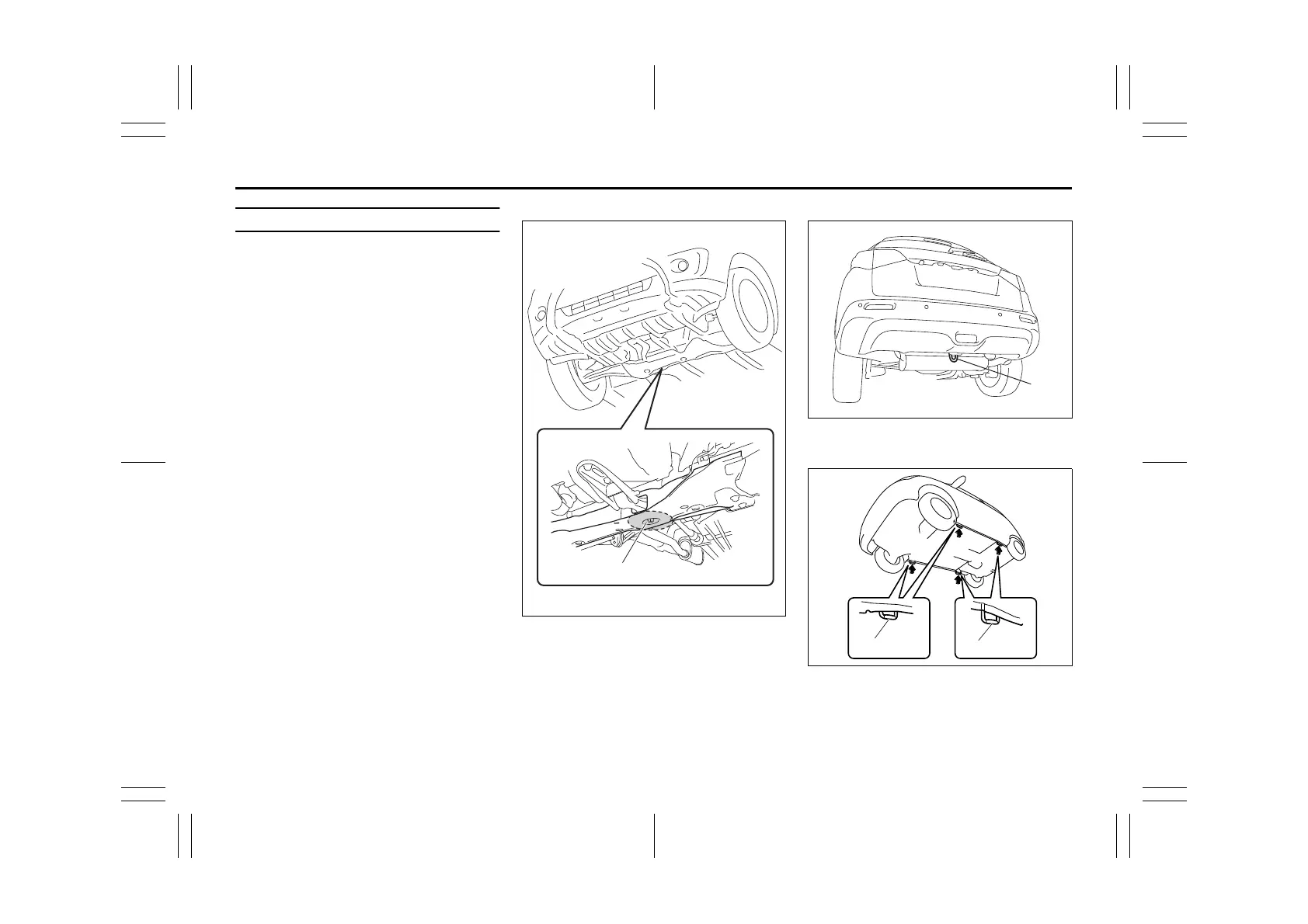

Raising vehicle with garage jack

• Apply the garage jack to one of the

points indicated below.

• Always support the raised vehicle with

jack stands (commercially available) at

the points indicated below.

Front jacking point for garage jack (1)

54P000801

Rear jacking point for garage jack (2)

54P000802

Application point for jack stand (3)

or two-column lift

61MM0B103

(1)

EXAMPLE

(2)

EXAMPLE

(3)

EXAMPLE
