7-43
INSPECTION AND MAINTENANCE
54P00-01E
60G111
NOTE:
Check that the fuse box always carries
spare fuses.

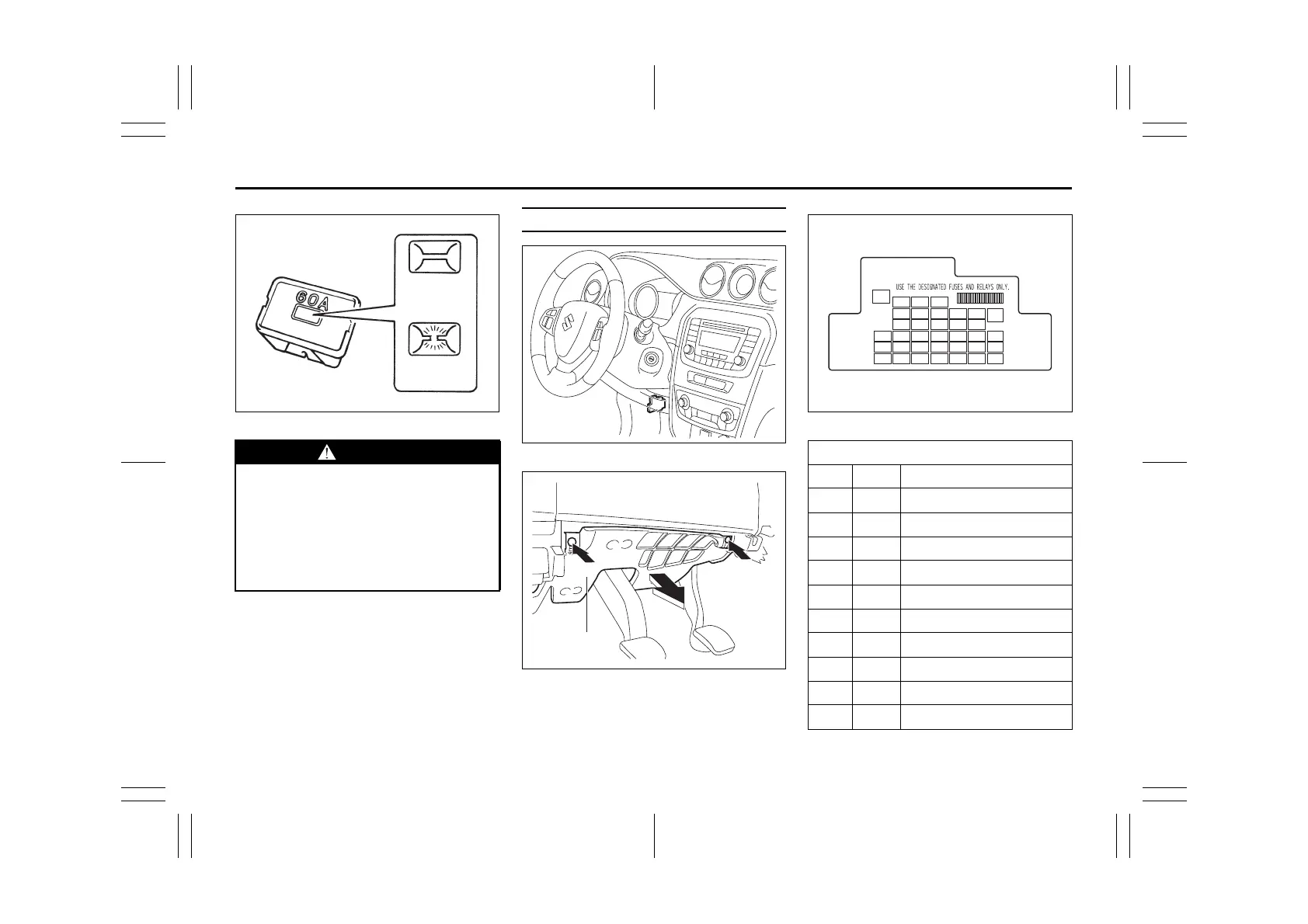

Fuses under dashboard
54P000708
61MM0B071
NOTE:
To approach the fuses, remove the screws
and remove the cover (1).
68LM701
WARNING
If the main fuse or a primary fuse
blows, have your vehicle inspected
by an authorized SUZUKI dealer.
Always use a genuine SUZUKI
replacement. Never use a substitute
such as a wire even for a temporary
repair, or extensive electrical damage
and a fire can result.
(1)
PRIMARY FUSE
(1) 30 A Seat belt
(2) 20 A Power window timer
(3) 15 A Steering lock
(4) 20 A Rear defogger
(5) 20 A Sunroof
(6) 10 A DRL
(7) 10 A Heated mirror
(8) 7.5 A Starting signal
(9) 15 A Accessory socket 2
(10) 30 A Power window
(11) 10 A Hazard
(1)
(12)
(10)
(13)
(36)
(2) (3)
(4)
(5)
(6)
(7) (8)
(9)
(11) (14) (15)
(16) (17) (18) (19) (20) (21) (22)
(23) (24) (25) (26) (27) (28) (29)
(30) (31) (32) (33) (34) (35)
