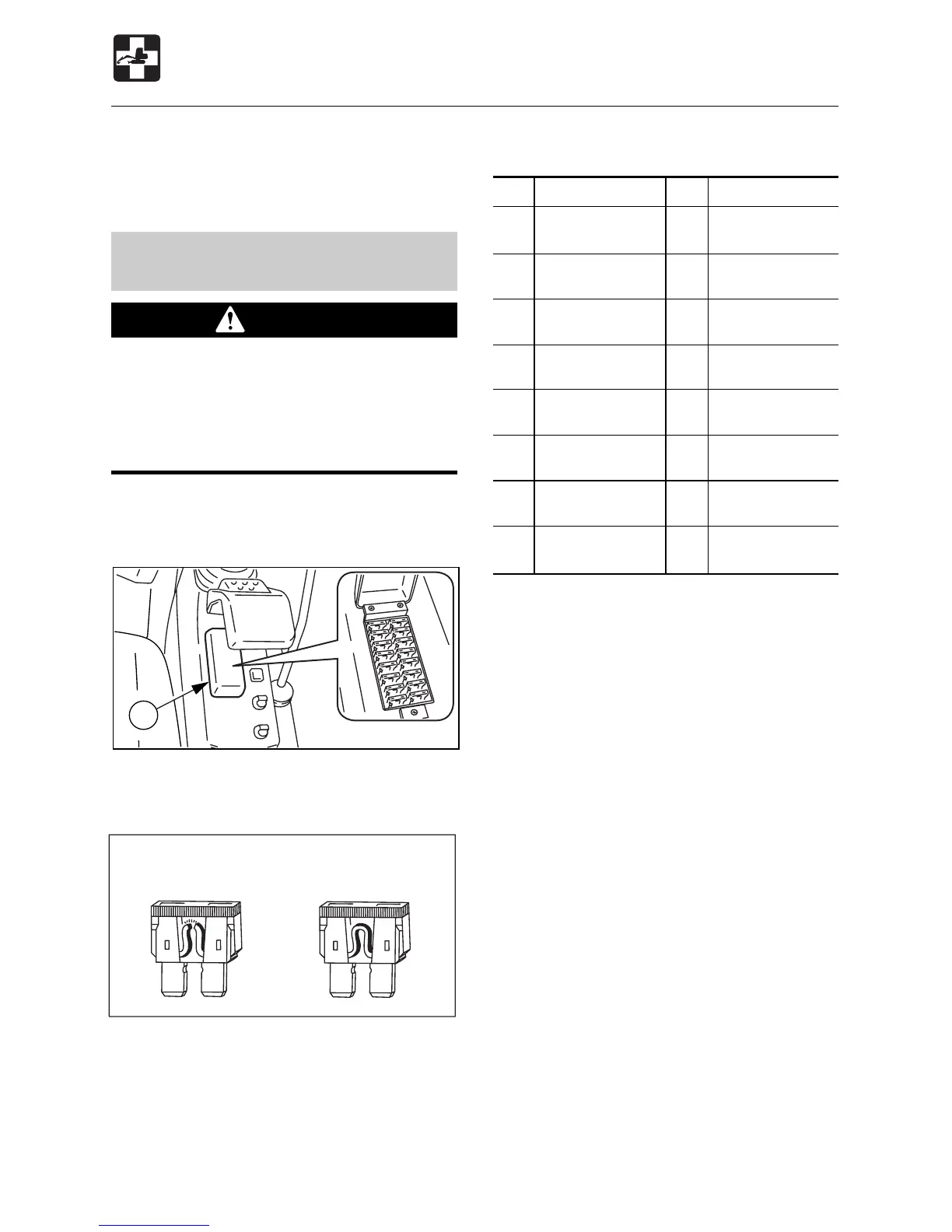

TROUBLESHOOTING
If a light does not turn on or the electric
system does not operate, a fuse may be
blown. Inspect the fuses.
Inspecting and Replacing the
Fuse
WARNING
If the fuse blows as soon as it is replaced,
there is a problem with the electric
system. Continued use may lead to fire.
Consult a Takeuchi sales or service
outlet.
1. Turn the starter key to the OFF position
and stop the engine.
2. Open the fuse box cover (1).
3. Inspect for any blown fuses.
4. If a fuse is blown, replace it with a spare
fuse of the same capacity.
If a Fuse Blows
Fuse Layout and Circuits Protected
10
10
10
20
20
10
20
10
5
10
5
10
20
20
20
10
1
L3J002
E4J007
NormalBlown
Capacity Capacity Protected circuit Protected circuit
15A Horn,
Interior Light
10A Proportional control
solenoid
20A Lights
20A Wiper
5A Radio
5A Heater
30A Air conditioner
(option)
20A Instrument cluster,
Lift alarm (option)
3A Throttle controller
(B)
1A Stop solenoid hold
10A External power socket
10A Cigarette lighter
10A Lever lock
10A Automatic-glow
20A Throttle controller
(ACC)
20A Feed pump,
Stop solenoid timer
