CONTROLS
Seat and Seat Belt

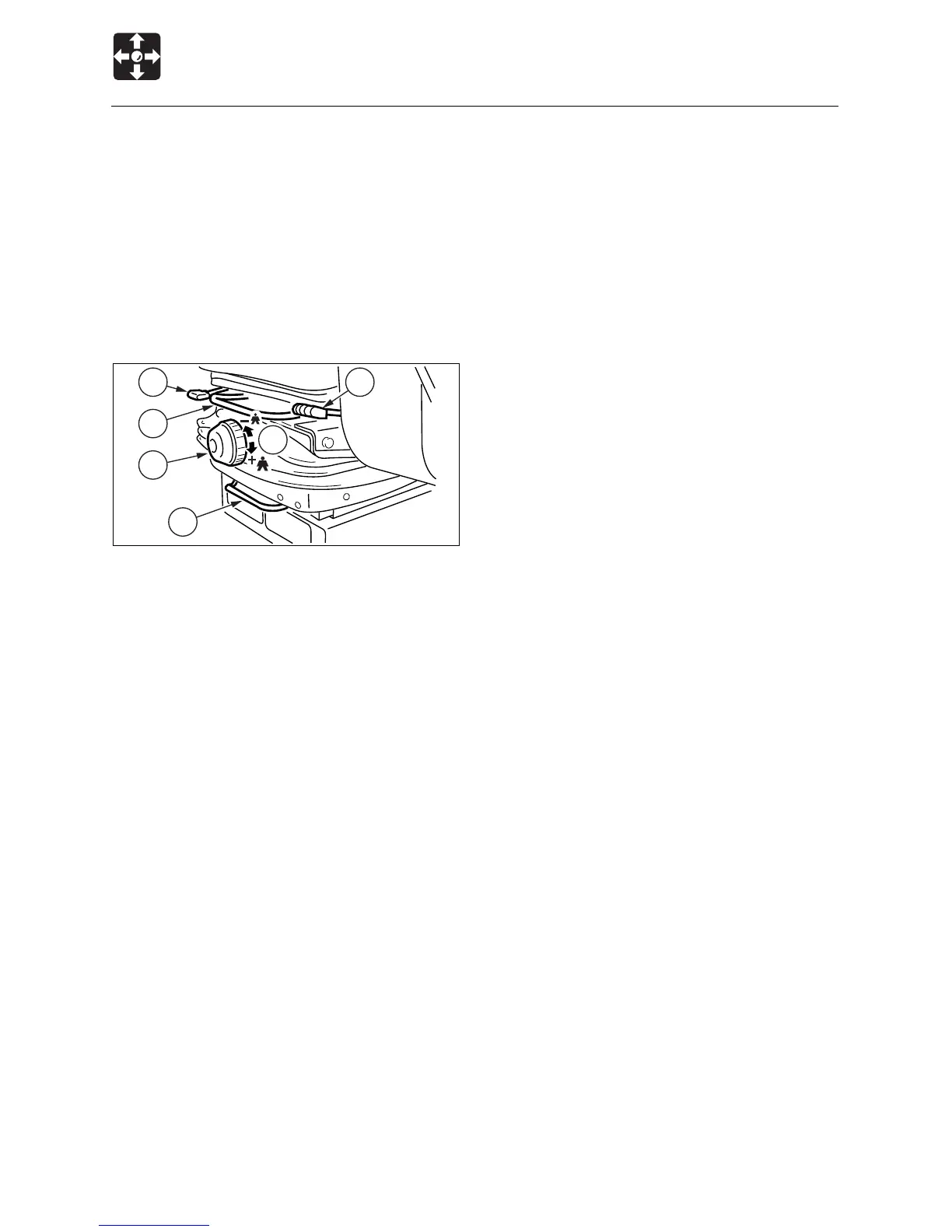

(D) Fore-and-aft adjustment
1. Pull on lever (4) and slide the seat
backward or forward to bring it to the
optimum position for operating the
machine.
2. Release the lever (4) at the desired
position and the seat will remain fixed
there.
Adjustment stroke: 17 steps,160 mm (5.9 in.)
(E) Weight adjustment
1. Turn handle (5) and set it to indicate the
weight of the person to operate the
machine.
May be set to any value from 50 to 120 kg
(110 to 265 lbs.)
(F) Lever stand adjustment
1. Pull on lever (6) and slide the lever stand
backward or forward to bring it to the
optimum position for operating the
machine.
2. Release the lever at the desired position
and the lever stand will remain fixed there.
Adjustment stroke: 70mm (2.8 in.)
(G)Headrest adjustment
The position of the headrest (7) can be
adjusted in the up and down directions.
1. Grasp the headrest with both hands and
move it upwards or downwards.
6
3
L3B013
2
5
4
E
