OPTIONS
189

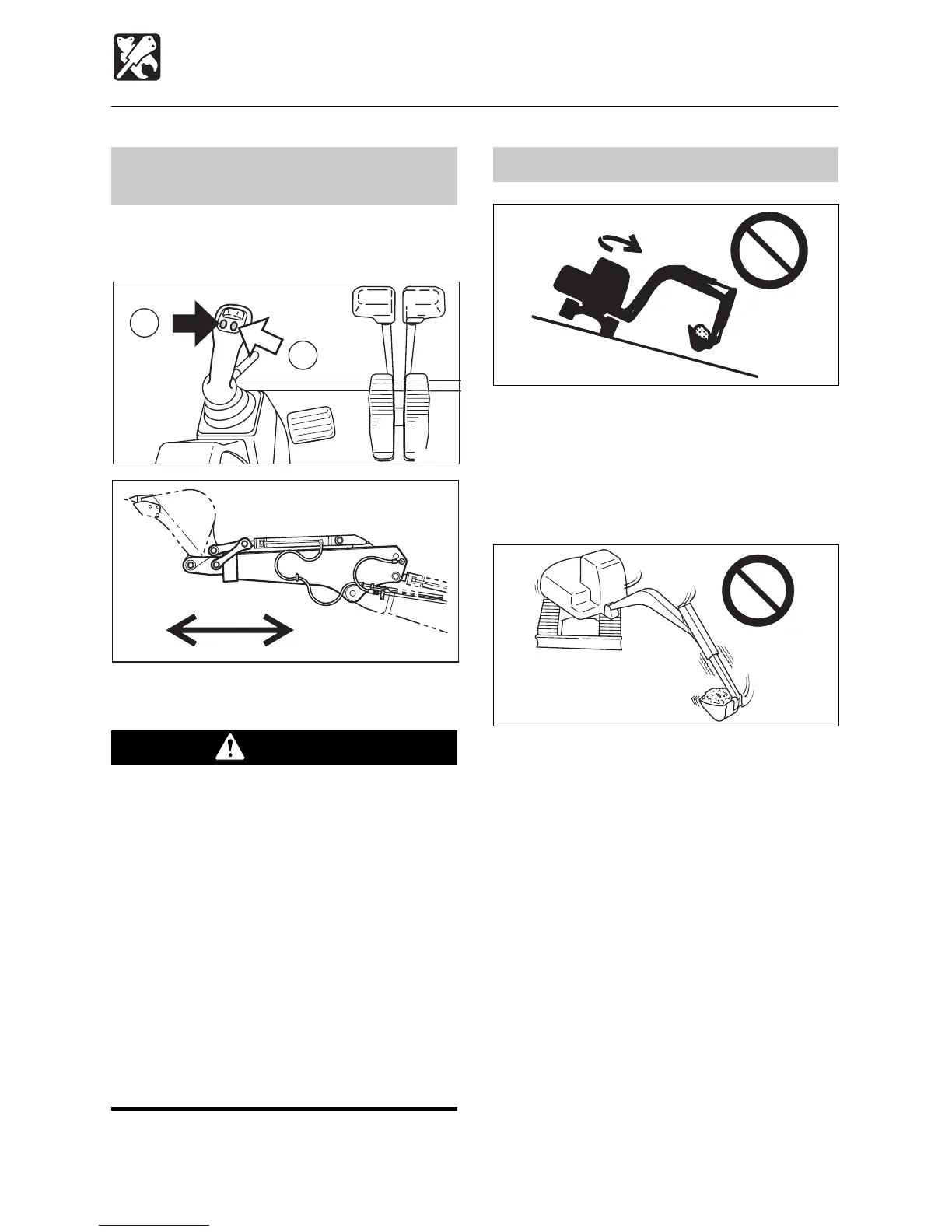

Extending and Retracting the
Arm
Use the auxiliary hydraulics controls to
extend and retract the telescopic arm.
(A) Retract
(B) Extend
WARNING
¡¡
¡¡
¡Excavator must be equipped with
boom swing stopper.
¡¡
¡¡
¡Use caution when operating.
Telescopic arm reduces craning
capacity and bucket may come into
contact with excavator. Excavator may
become unstable when operating over
the side or with boom swing.
¡¡
¡¡
¡SAE heaped capacity of bucket
installed on telescopic arm must not
exceed 0.201 m
3
(7.1 cu.ft.).
¡¡
¡¡
¡Do not install hydraulic breaker,
compactor or similar attachment on
telescopic arm.
Telescopic Arm
Caution on Using the Arm
¡The machine may loose balance and tip
over when slewing or operating the
attachment on slopes. It is particularly
dangerous to slew with the arm extended
on the bucket full. Never do so.
¡NEVER slew suddenly or stop slewing
suddenly with the arm extended. Doing
so may damage the arm.
OE3A331
L3L035
B
A
A
B
OL1L040
OL1L060
