Takeuchi TB175 User Manual

39

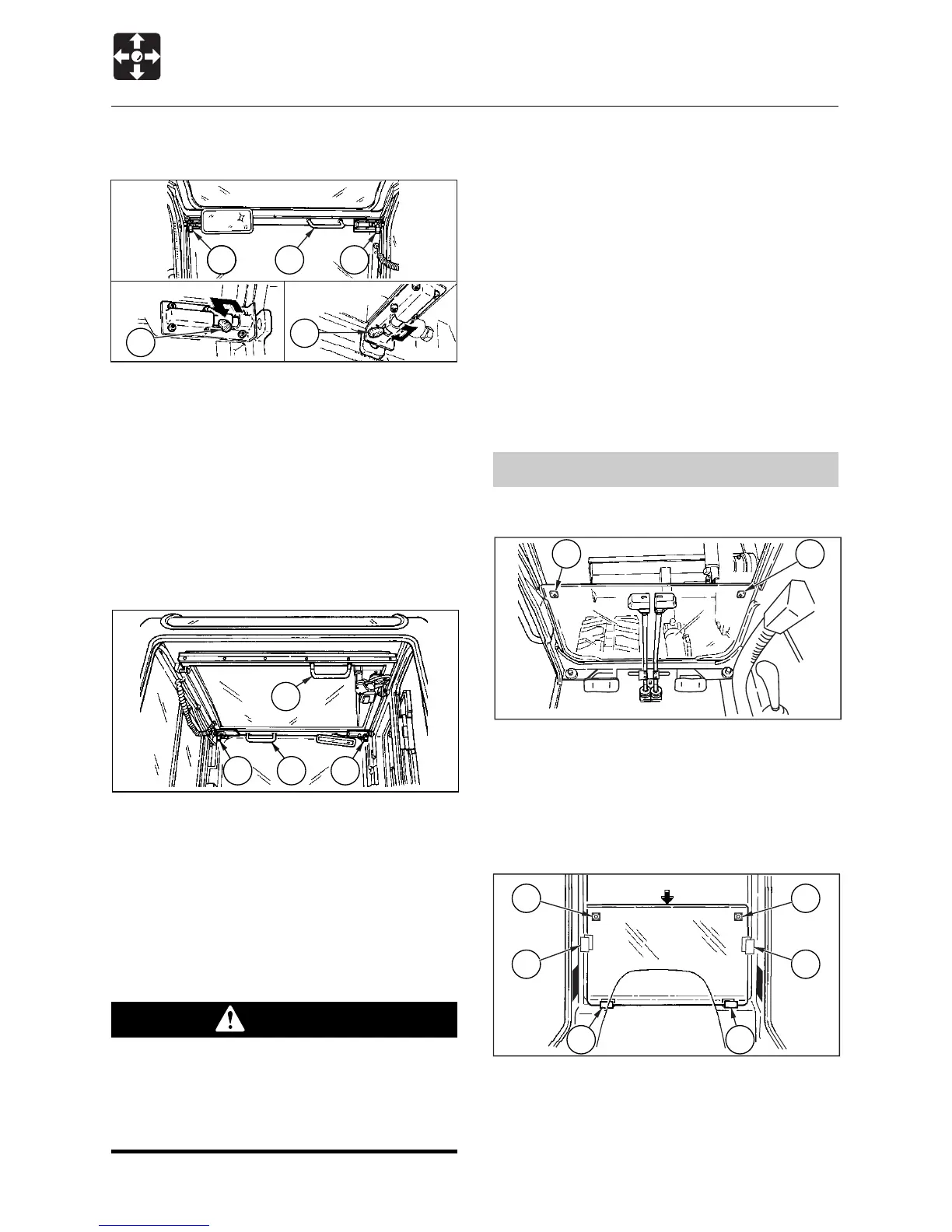

CONTROLS
Doors and Covers
Opening
1. Park on a level surface and stop the
engine.
2. Set the safety lock lever to the locked
position.
3. Pull the left and right lock pins (1) to the
inside then turn them to the locked position
to unlock the front window. If the lock pins
(1) are partially sticking out they may
cause damage.
4. Grasp the lower handle (2) with the left
hand, the upper handle (3) with the right
hand, then lift and slide to the rear.
5. Once the window frame is against the
stopper, move the lock pins (1) to the
outside to lock front window.
Closing
WARNING
When closing the front window, lower the
window slowly so as not to hit your head.
Lowering the window abruptly may result
in injury or damage the front window.
1. Pull the left and right lock pins (1) to the
inside and turn them to the locked position
to unlock the front window. If the lock pins
(1) are partially sticking out they may
cause damage.
2. Grasp the front (lower) handle (2) with the
left hand, the rear (upper) handle (3) with
the right hand, then slowly lower the front
window.
3. Move the lock pins (1) to the outside to
lock the front window.
1
1 1
1
3

C4C003
Released Locked
11
2
3
C4C004
Lower Front Window
Removing
1. Open the front window and stow it in the
ceiling.
2. Grasp the protruding parts (4) on the left
and right with your fingers and slowly lift
the lower front window off.
3. Hold the glass firmly, place the lower front
window through the guides (5) at the rear,
then set it on the supports (6) and fasten
it in place.
C4C005
4 4
4
5
6 6
4
5
C4C006
