TRANSPORT
Hoisting the Machine
WARNING
¡¡
¡¡
¡Know and use correct crane signals.
¡¡
¡¡
¡Inspect the hoisting equipment daily
for damaged or missing parts.
¡¡
¡¡
¡When hoisting, use a wire rope with
sufficient strength with respect to the
machine’s weight.
¡¡
¡¡
¡Do not hoist with the machine in a
posture other than the one described
in the procedure below. Doing so is
dangerous as it may result in the
machine losing its balance.
¡¡
¡¡
¡Do not hoist the machine with an
operator (s) on it.
¡¡
¡¡
¡When hoisting, hoist slowly so that the
machine does not tip.
¡¡
¡¡
¡Keep all other persons out of the area
when hoisting. Do not move the
machine over the heads of the persons.
IMPORTANT: This hoisting method applles
to machines with standard specifications.
The center of gravity differs according to
the attachments and options that are
mounted.
Consult a Takeuchi sales or service outlet.

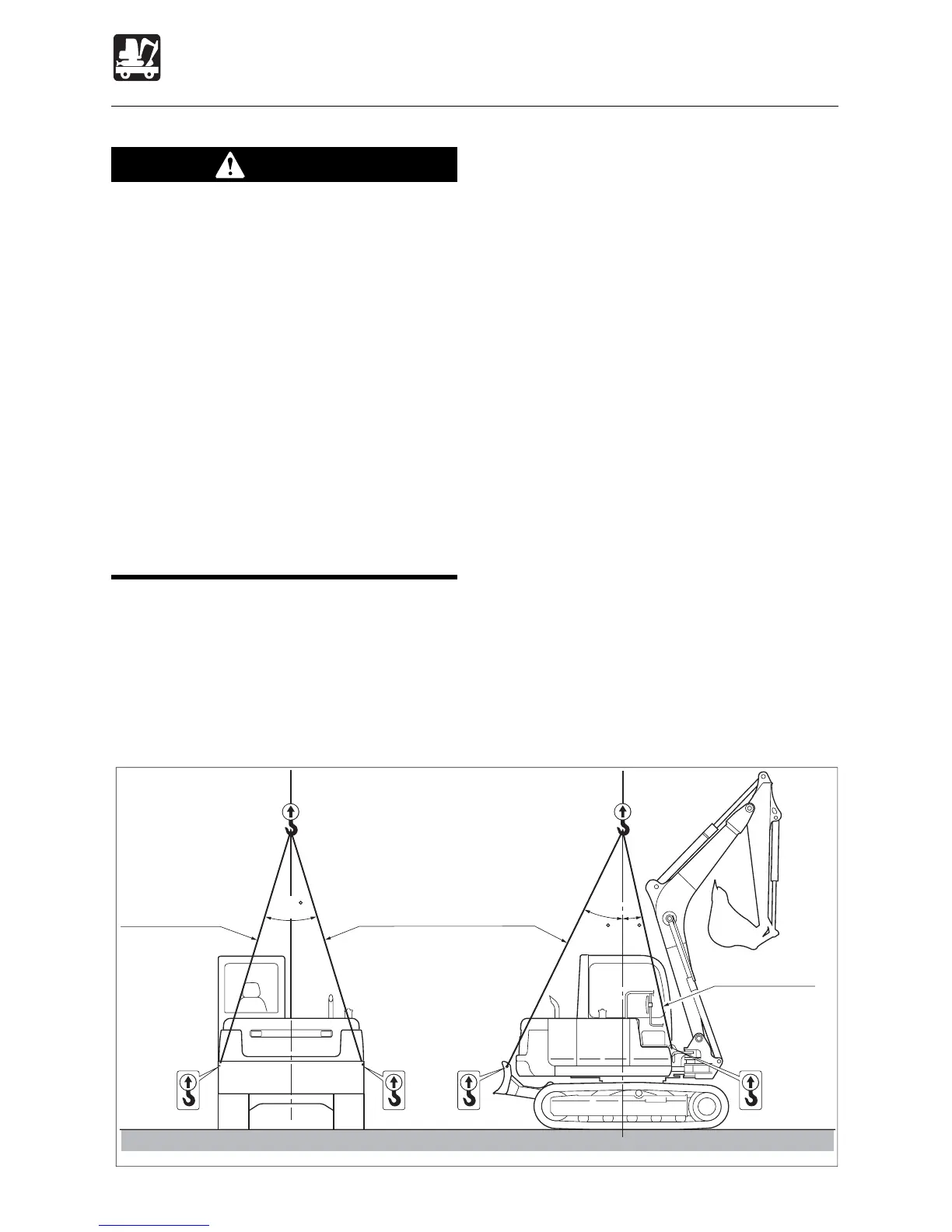

Hoisting posture
Hoisting
1. Slew the upper structure so that the dozer
blade is positioned to the rear of the body
(so that the crawler frame and upper
structure are parallel).
2. Raise the dozer blade fully.
3. Fully extend the bucket and arm cylinders
and fully raise the boom.
4. If the boom is swung to either the left or
right side, set it so that it is straight ahead.
5. Raise the safety lock lever to engage the
lock.
6. Stop the engine and remove the starter
key and get off the machine.
7. Install the sling as shown on the diagram
below.
Suspend in such a way that the sling and
Lifting tool do not touch the body.
8. Hoist slowly until the machine just leaves
the ground.
9. Stop hoisting until the machine is stable
and hoist slowly.
L3F001
13
34
26
4000
mm
(157.5
in.
)
4000
mm
(157.5
in.
)
3300
mm
(130
in.
)
