47
CONTROLS

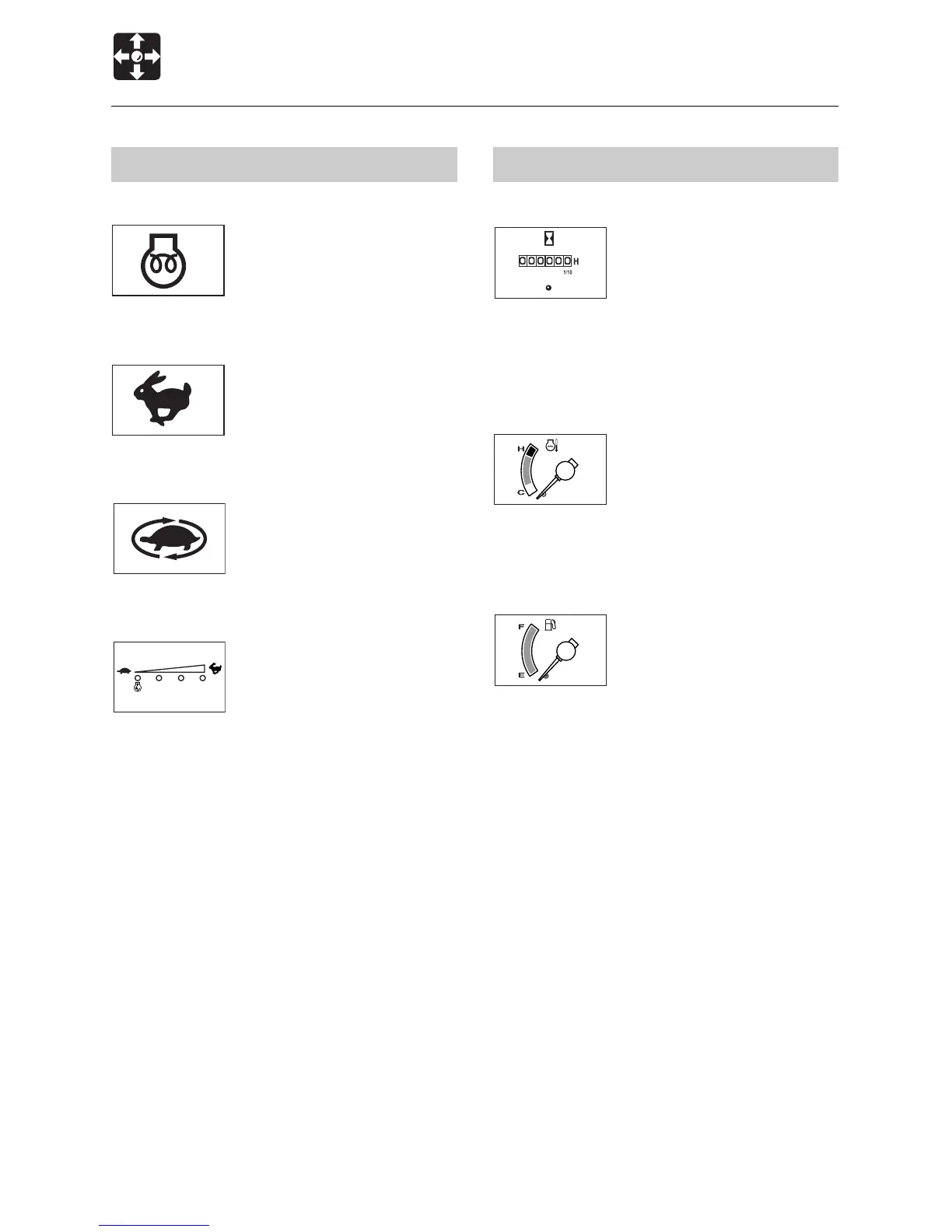

Instrument Cluster
Meters
12. Hour Meter
This displays the total engine
running time in hours.
The rightmost digit indicates
tenths of hours (6 minutes).
Set the inspection and maintenance intervals
according to the time displayed on the hour
meter.
13. Water Temperature Gauge
This gauge indicates the
temperature of the engine
coolant water.
The needle should be within
the green range during machine operation.
The red range indicates overheating.
14. Fuel Gauge
This gauge indicates the
amount of fuel in the tank.
Be sure to top off the tank
before running out of fuel.
C4B014
Indicators
8. Glow Lamp
This lamp turns off when
engine preheating is
completed.
9. Travel Speed Lamp
This lamp lights when the
travel speed switch is set to
2nd (high speed).
10. Slow Speed Slew Lamp
This lamp lights when slow
speed slew switch pressed,
the slew speed decreases.
11. Power Mode Lamp
These lamps indicates the
engine speed.
L3B017
L3B018
L
FC
H
L3B019
L3B020
L3B021
C4B013
To Next Page
