Takeuchi TB175 User Manual

54
CONTROLS

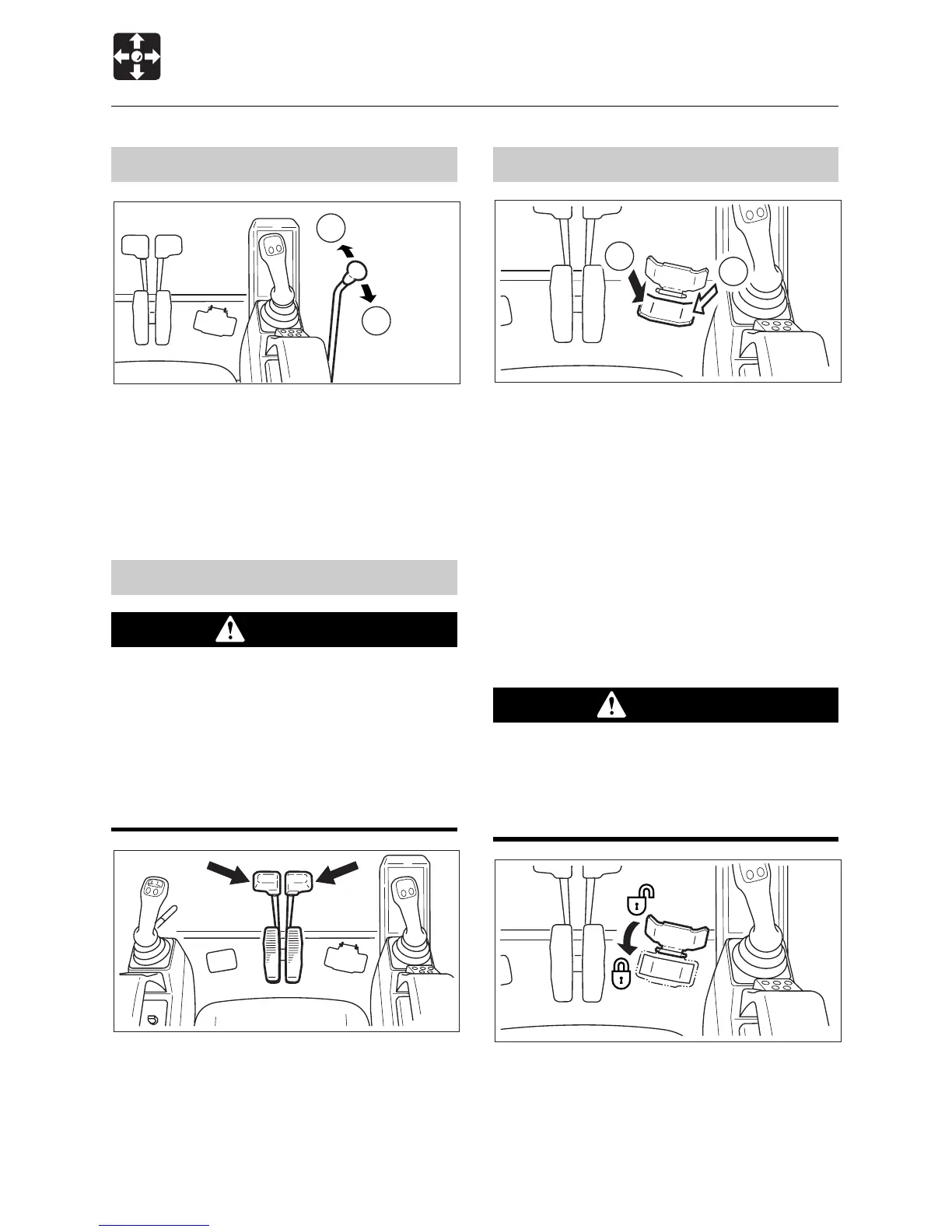

Levers and Pedals
Blade Lever
Use this lever to operate the dozer blade.
(A) .... Blade up
(B) .... Blade down
Refer to page 76 “Operating the Dozer
Blade”.
Travel Levers
WARNING
Before operating the travel levers, check
to make sure that the dozer blade is to
the front of the operator’s seat. BE
AWARE that when the dozer blade is to
the rear of the operator’s seat, the travel
levers operate in the opposite direction
to when the dozer blade is in the front.
Use these levers to move forward and
backward and to change directions.
Refer to page 72 “Operating the Travel
Levers”.
Boom Swing Pedal
Use this pedal to operate the boom swing.
Operation switches to the intermediate boom
when the selector button is pressed.
(A) .... Boom swing left/Intermediate boom
raise
(B) .... Boom swing right/Intermediate boom
lower
Refer to page 76 “Operating the Boom
Swing” or “Operating the Intermediate
Boom”.
Pedal Lock
WARNING
When not using the pedal, set the pedal
lock to the locked position. Stepping on
a pedal accidentally when it is not locked
may lead to unexpected accidents.
This device is for locking the swing pedal.
Set the pedal lock over the pedal to lock it.
L3B049
B
A
L3B050
L3B051
L3B052
A
B
