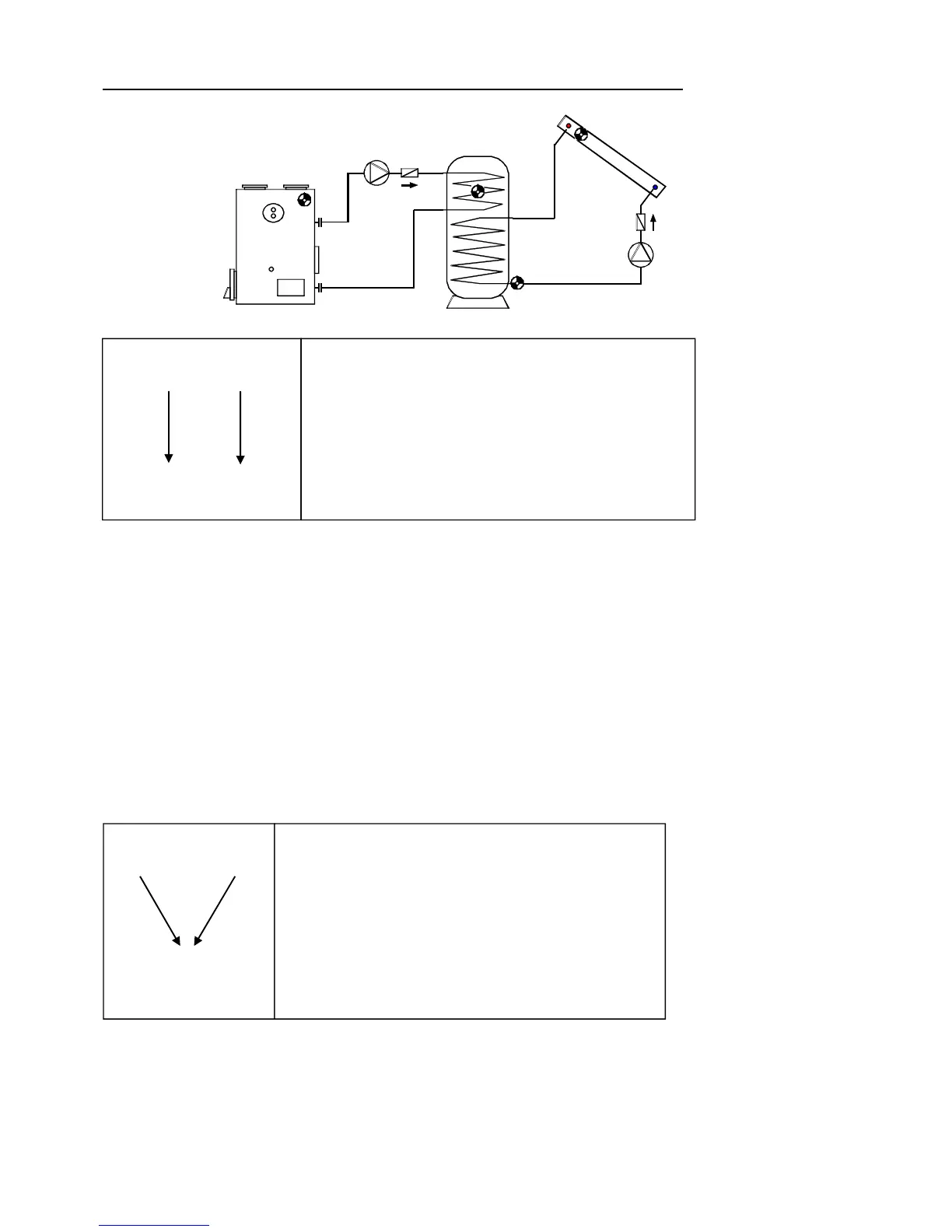

Program 80 - Single solar power system and cylinder load from boiler
Program 80: Pump A1 runs when:
 S1 is greater than the threshold min1  and S1 is greater than S2 by the difference diff1
 and S2 has not exceeded the threshold max1.
The feed pump A2 runs when:
 S3 is greater than the threshold min2  and S3 is greater than S4 by the difference diff2
 and S4 has not exceeded the threshold max2.
A1 = S1 > (S2 + diff1) & S1 > min1 & S2 < max1
A2 = S3 > (S4 + diff2) & S3 > min2 & S4 < max2
Program 81 (all programs +1):
Pump A1 runs when:
 S1 is greater than the threshold min1  and S1 is greater than S2 by the difference diff1
 and S2 has not exceeded the threshold max1.
S1 S3
min1 min2
S2 S4
max1 max2
diff2
A2
diff1
A1
Required settings:
max1 … limit CYL S2  A1
max2 … limit CYL S4  A2
max3 … see all programs +4
min1 … switch-on temp. coll. S1  A1
min2 … switch-on temp. boiler S3  A2
diff1 … coll. S1 – CYL S2  A1
diff2 … boiler S3 – CYL S4  A2
S1 S3
min1 min2
S2
max1
max2
diff2
A2
diff1
A1
Required settings:
max1 … limit CYL S2  A1
max2 … limit CYL S2  A2
max3 … see all programs +4
min1 … switch-on temp. coll. S1  A1
min2 … switch-on temp. boiler S3  A2
diff1 … coll. S1 – CYL S2  A1
diff2 … boiler S3 – CYL S2  A2
S1
S2
S3
S4
A1
A2
