62
Operation

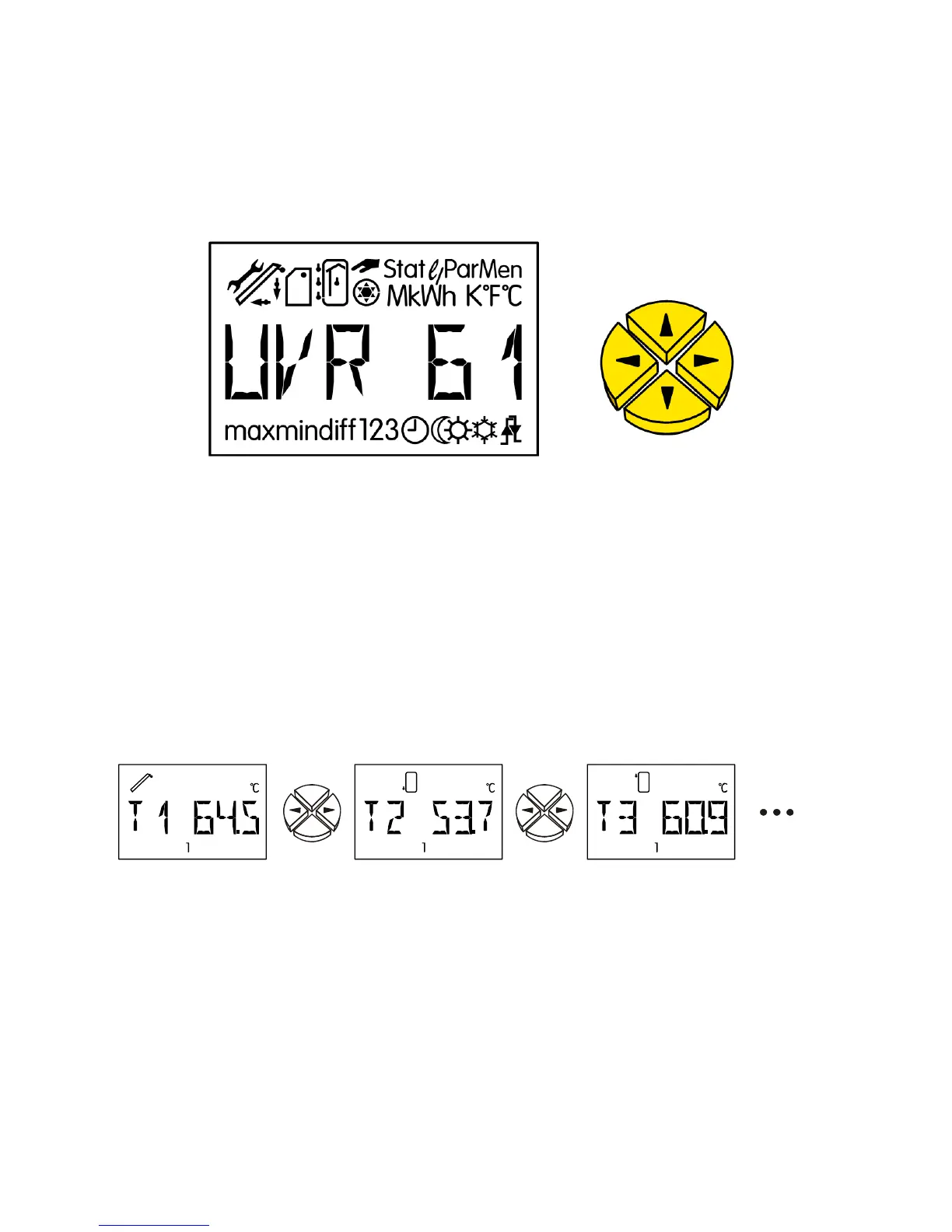

The large majority contains all of the icons needed for all of the important information as
well as a plain text field. Navigation with the co-ordination keys has been adapted to the
display arrangement.
= Navigation keys to select the display and change parameters.
= Entry in a menu, release of a value to modify with the navigation keys (enter key).
= Return to the last menu level selected, exit the parameter level for a value (return key).
In normal operation, the left/right arrows are the navigation keys to select the desired
display, such as collector or storage cylinder temperature. Each time a key is pressed,
another icon appears with the respective temperature.
Above the text line, the icon for the text is always displayed (in the example given, the
collector temperature). Below the text line, all of the tips are displayed during the setting of
parameters.
To the side of the display, the currently active outputs are identifiable
on the green illuminated figures 1 - 3. If the speed control is active,
the output 1 display flashes according to the speed stage.
3
2
1
