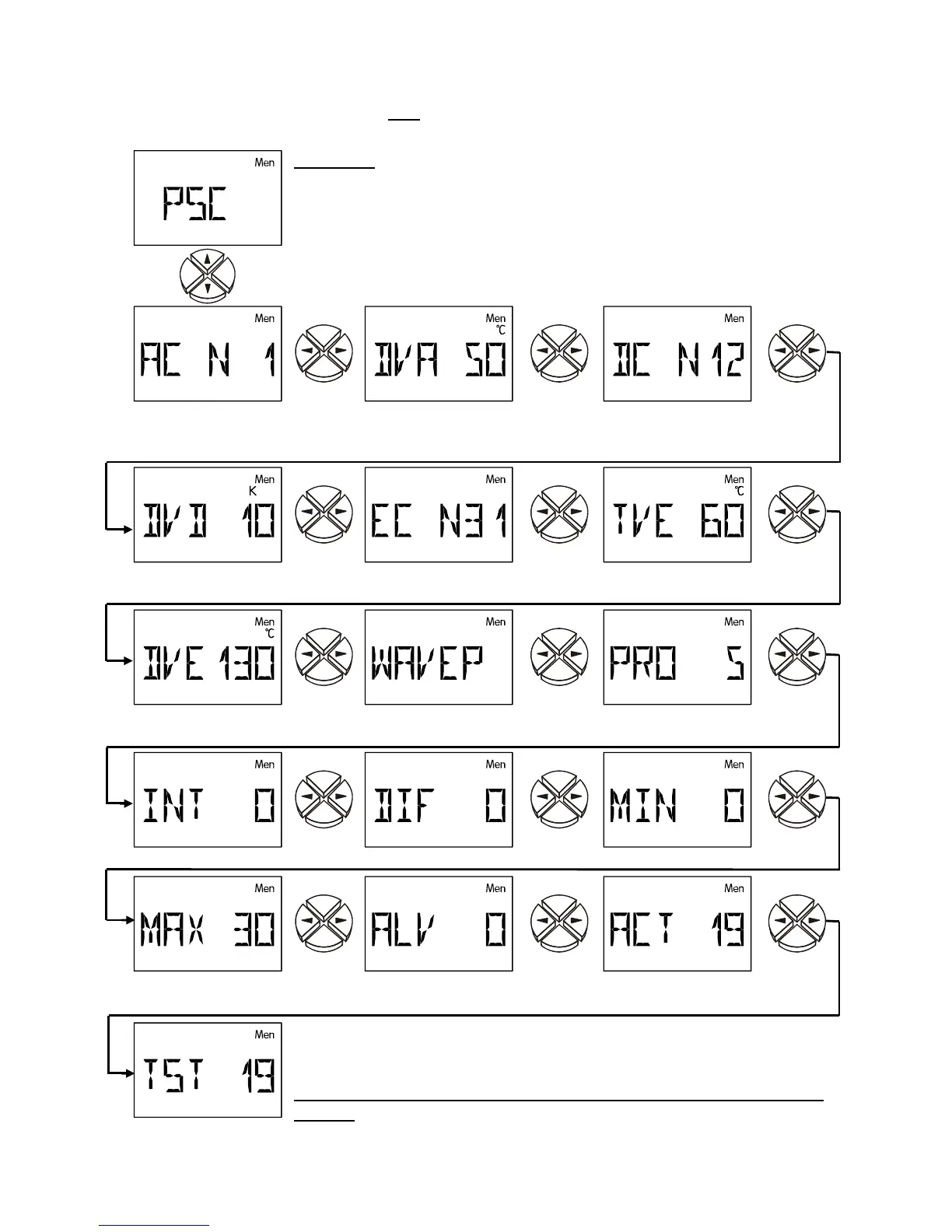

Pump speed control PSC
Pump speed control PSC is not suitable for electronic or high efficiency
pumps.
Warning! The values in the following description are by
way of example only; they must, in all cases, be matched to
the system!
Absolute value
control system
Desired value for
absolute value
control
Differential control
system
Desired value for
differential control
Event
control system
Desired value of the
event
Desired value of the
control system
Wave package or
phase angle
Proportional part
Integral part Differential part Minimum Speed stage
Maximum
Speed stage
Delay time Current
speed
The behaviour of the control circuit is equal to that of the control
outputs (COP); however, instead of 100 (COP) a maximum of 30
increments is available.
The description of the parameter values follows in the menu
“COP”.
Setting of test speed
