Assign free outputs
(according to
diagram)
Automatic / manual
mode (3 times) for
outputs 1 – 3
Automatic / manual
mode (2 times) for
the control outputs
Brief description
CODE Code to enter the menu. The other menu items are only displayed once the
correct code has been entered
VER Version number
PR Selection of the program number
LO Linking of outputs (A1 with A2, A1 with A3 or A2 with A3). The speed control (only
output 1) can be assigned within the program diagram in any way desired by this
means.
PA Priority assignment (this menu item is only displayed for program diagrams with
priority)
max Maximum limit - switch-off threshold (3 times)
max Maximum limit - switch-on threshold (3 times)
min Minimum limit - switch-on threshold (3 times)
min Minimum limit - switch-off threshold (3 times)
diff Difference - switch-on threshold (3 times)
diff Difference - switch-off threshold (3 times)
The number of minimum thresholds, maximum thresholds, and differences is displayed
according to the program selected.
E.g. 16.34 Time
DATE Sets the date (timestamps for data lines) and automatic / manual settings between
summer and normal time.
TIME W Time window (available 3 times)
TIMER Timer function

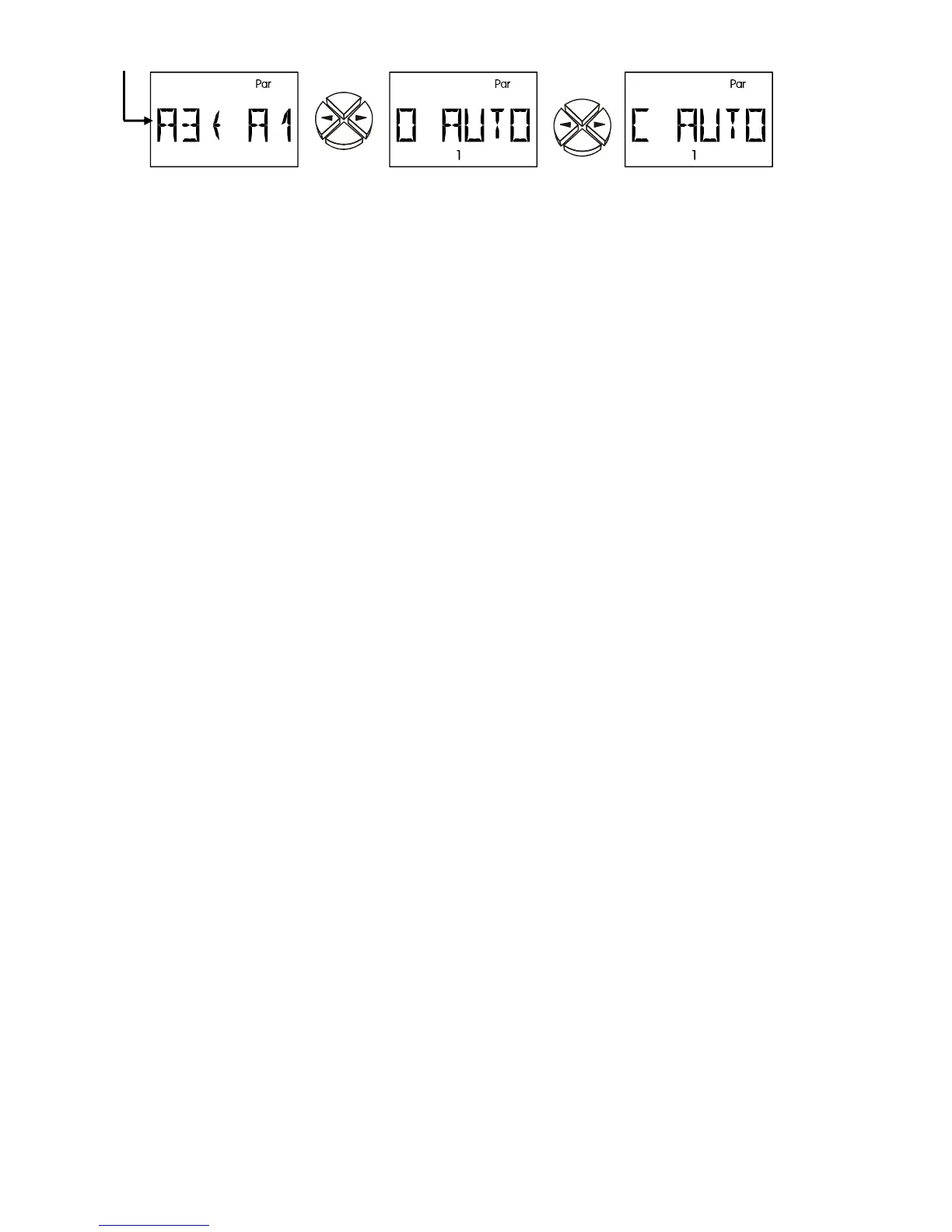

A3 A1 Assignment of unused outputs
O AUTO Output in automatic or manual mode (ON/OFF). This menu is available for every
output.
C AUTO Control output in automatic or manual mode. In manual mode the controller is
switched from 10V to 0V (
ON/OFF). This menu is available for every control
output.
