Program 592 - 2 generators on 2 consumers + independent differential loop
No diagram available!
Program 592: Pump A1 runs when:
 S1 is greater than the threshold min1  and S1 is greater than S3 by the difference diff1
 and S3 has not exceeded the threshold max1.
or
 S2 is greater than the threshold min2  and S2 is greater than S3 by the difference diff1
 and S3 has not exceeded the threshold max1.
Feed pump A2 runs when:
 S1 is greater than the threshold min1  and S1 is greater than S4 by the difference diff2
 and S4 has not exceeded the threshold max2.
or

S2 is greater than the threshold min2  and S2 is greater than S4 by the difference diff2
 and S4 has not exceeded the threshold max2.
The feed pump A3 runs when:
 S5 is greater than the threshold min3  and S5 is greater than S6 by the difference diff3
 and S6 has not exceeded the threshold max3
A1 = S1 > (S3 + diff1) & S1 > min1 & S3 < max1
or S2 > (S3 + diff1) & S2 > min2 & S3 < max1
A2 = S1 > (S4 + diff2) & S1 > min1 & S4 < max2
or S2 > (S4 + diff2) & S2 > min2 & S4 < max2
A3 = S5 > (S6 + diff3) & S5 > min3 & S6 < max3
Required settings:
max1 … limit CYL 1 S3  A1
max2 … limit CYL 2 S4  A2
max3 … limit CYL 3 S6  A3
min1 … switch-on t. boiler1 S1  A1
min2 … switch-on t. boiler2 S2  A2
min3 … switch-on temp. coll. S5  A3
diff1 … boiler 1 S1 – CYL 1 S3  A1
… boiler 2 S2 – CYL 1 S3  A1
diff2 … boiler 1 S1 – CYL 2 S4  A2
… boiler 2 S2 – CYL 2 S4  A2
diff3
… coll. S5 – CYL 3 S6  A3

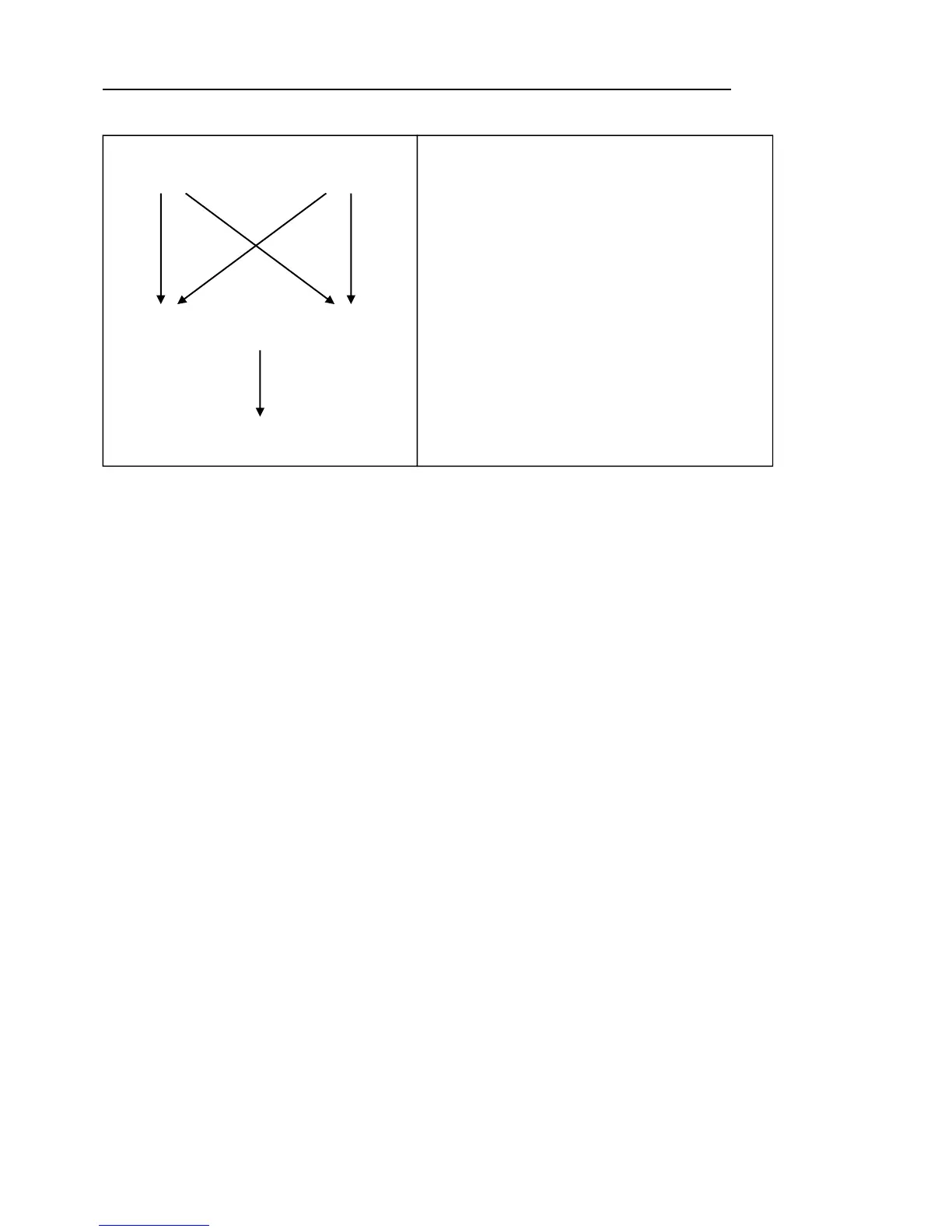

S1 S2
min1 min2
S3 S5 S4
max1 min3 max2
S6
max3
diff1
A1
diff1
A1
diff2
A
2
diff2
A2
diff3
A3
