Technische Alternative UVR61-3 User Manual

75

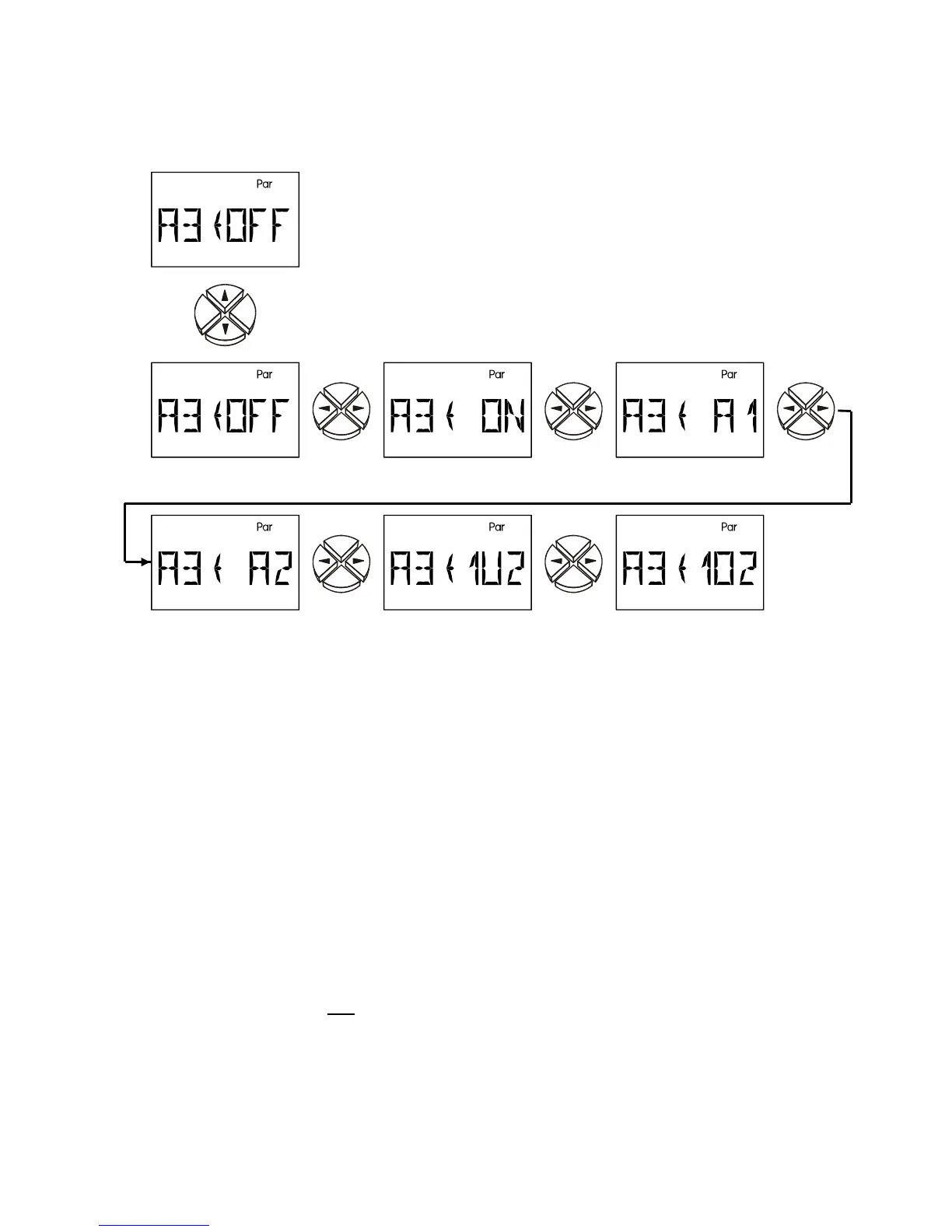

Assignment of free outputs A2/A3 <= OFF
Outputs which do not have a fixed assignment in the diagram (diagram 0 to 159) can be
linked to other outputs.
A3 deactivated A3 activated (as
time switch output)
A3 switches with
A1
A3 switches with
A2
A3 switches when
A1 and A2 are ON
A3 switches when
A1 or A2 are ON
A3OFF Output A3 has no function
A3ON Output A3 is released and available as e.g. time switch output (setting: OPA 3)
A3A1 Output A3 switches together with output A1
A3A2 Output A3 switches together with output A2
A31U2 Output A3 switches if output A1 and output A2 have activated.
A3 = A1 & A2
A31O2 Output A3 switches if output A1 or output A2 have activated.
A3 = A1 or A2
WARNING: The switch function does not relate directly to the allocated output, rather only to
its function in the
Basic program diagram, in which respect a possible priority
allocation is
not considered. If this is necessary, program diagram 624 can be
used.If the output is to be affected by special functions (e.g. time window,
collector excess temperature limitation etc.) so that this is to be especially
allowed for when assigning outputs.
