Code to enter
menu
Version number Program number

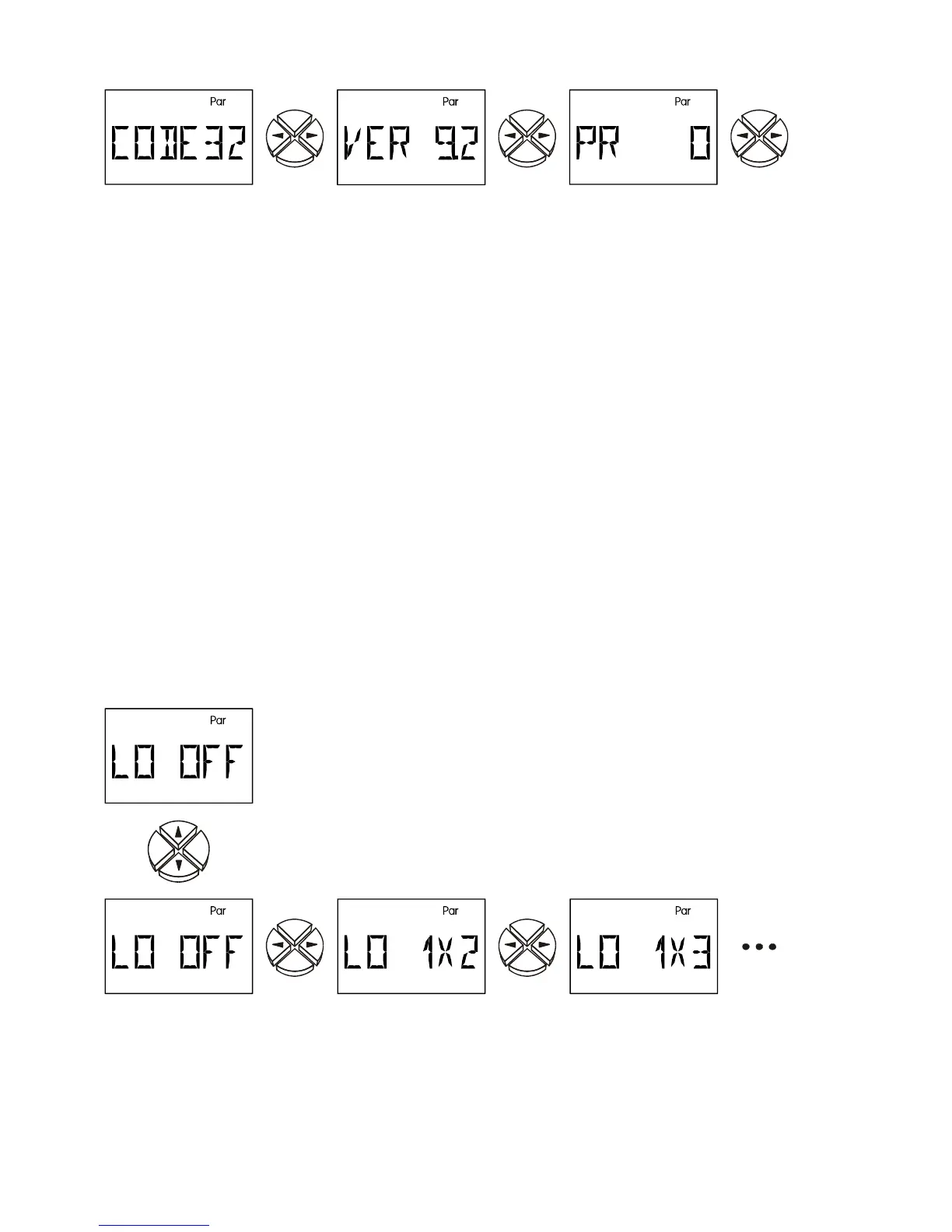

Code number CODE
The other menu items of the parameter menu are only displayed after input of the correct
code number (code number 32).
Software version VER
Display of the software version. It cannot be changed as it indicates the intelligence of the
device and must be provided if there are any queries.
Program number PR
Program selection according to the selected hydraulic diagram (WE = 0)
Further functions can be added to the described programs. The described functions apply
together. "All programs +1 (+2, +4, +8)" indicates that the selected program number can be
increased by the sum total of these numbers.
Example: Program 48 +1 + 2 = Program number 51 = solar thermal system with 2
consumers, with pump-valve system and additional sensor S4 for the upper limit
.
Linking of outputs LO
Possibility to cancel out the numbered outputs listed in the program diagram against each
other (A1 with A2, A1 with A3 or A2 with A3). By this means it is possible to assign the speed
output at will. (ex works = OFF)
Link OFF Link A1 and A2 Link A1 and A3
IMPORTANT: All outputs set in menu functions relate directly to the terminal outputs and not
to the program diagram. This means that if an output is transposed, it must be
taken into account for parameterization of the functions and priority allocations.
