Creating a mean (average) AV
Setting of the time in seconds over which an averaging of the measured value should be
carried out (ex works = 1.0s).
Example: AV1 1.0 Create an average of sensor S1 for 1.0 seconds
For simple measurements, 1.0-2.0 should be selected. A large average
slows everything down and is only recommended for the sensors for the
heat counter.
The measurement of the ultra-fast sensor for the preparation of hot
water also requires a fast evaluation of the signal. Hence, the creation of the average of the
sensor should be reduced to 0.3 to 0.5 although fluctuations will then occur in the display. No
averaging is possible for the volume flow encoder VSG and the wind sensor WIS01.
Setting range: 0.0 to 6.0 seconds in increments of 0.1 seconds
0.0 no average

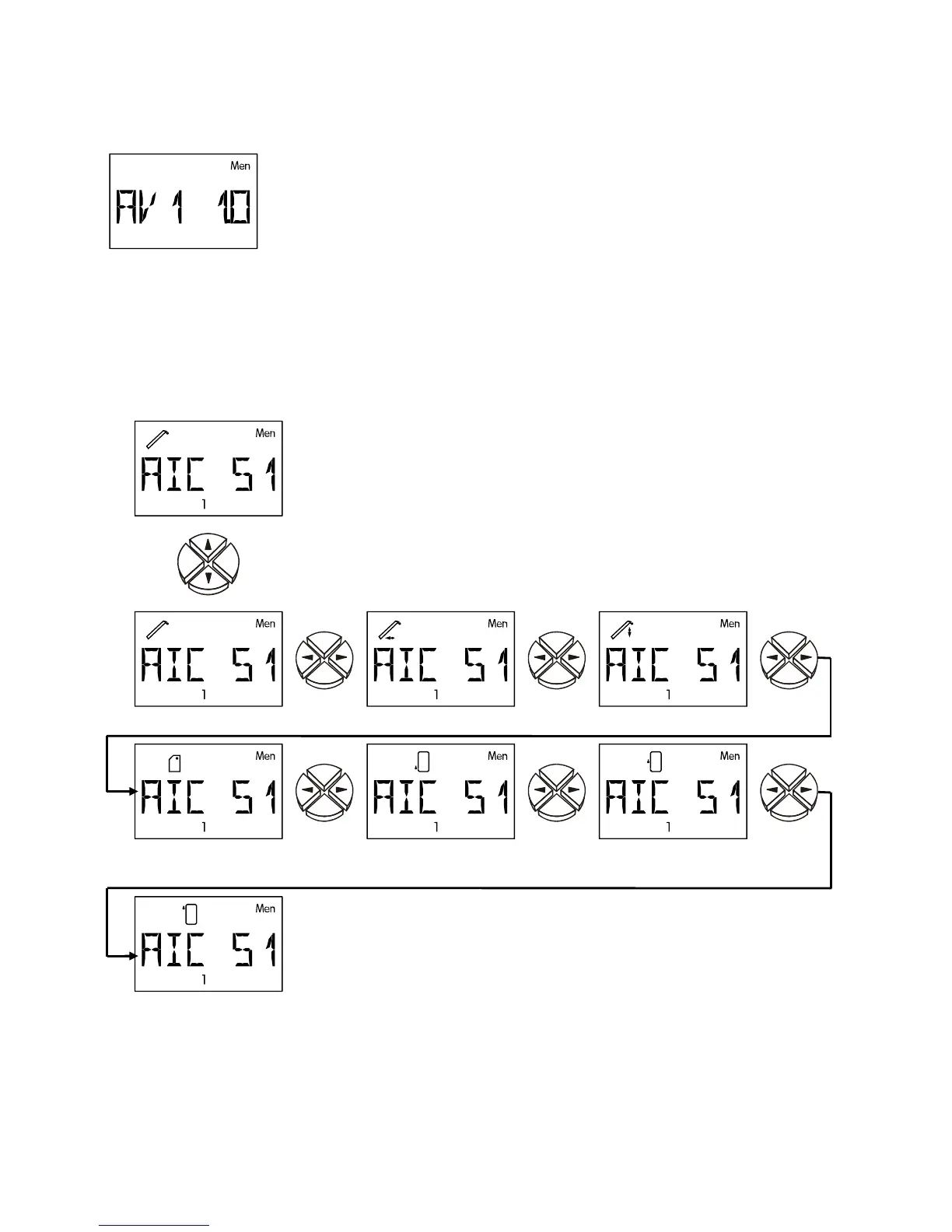

Assigning icons AIC
Collector Return Flow
Heating boiler
burner
Cylinder, bottom Cylinder, middle
Cylinder, top
One of the icons displayed above can be assigned to each sensor. Each icon is available
three times, which is displayed in the bottom line by the index (1, 2 or 3). Contrary to the
above graphic each symbol appears three times with a different index before switching to the
next.
Symbol allocation has no influence on the control function.
