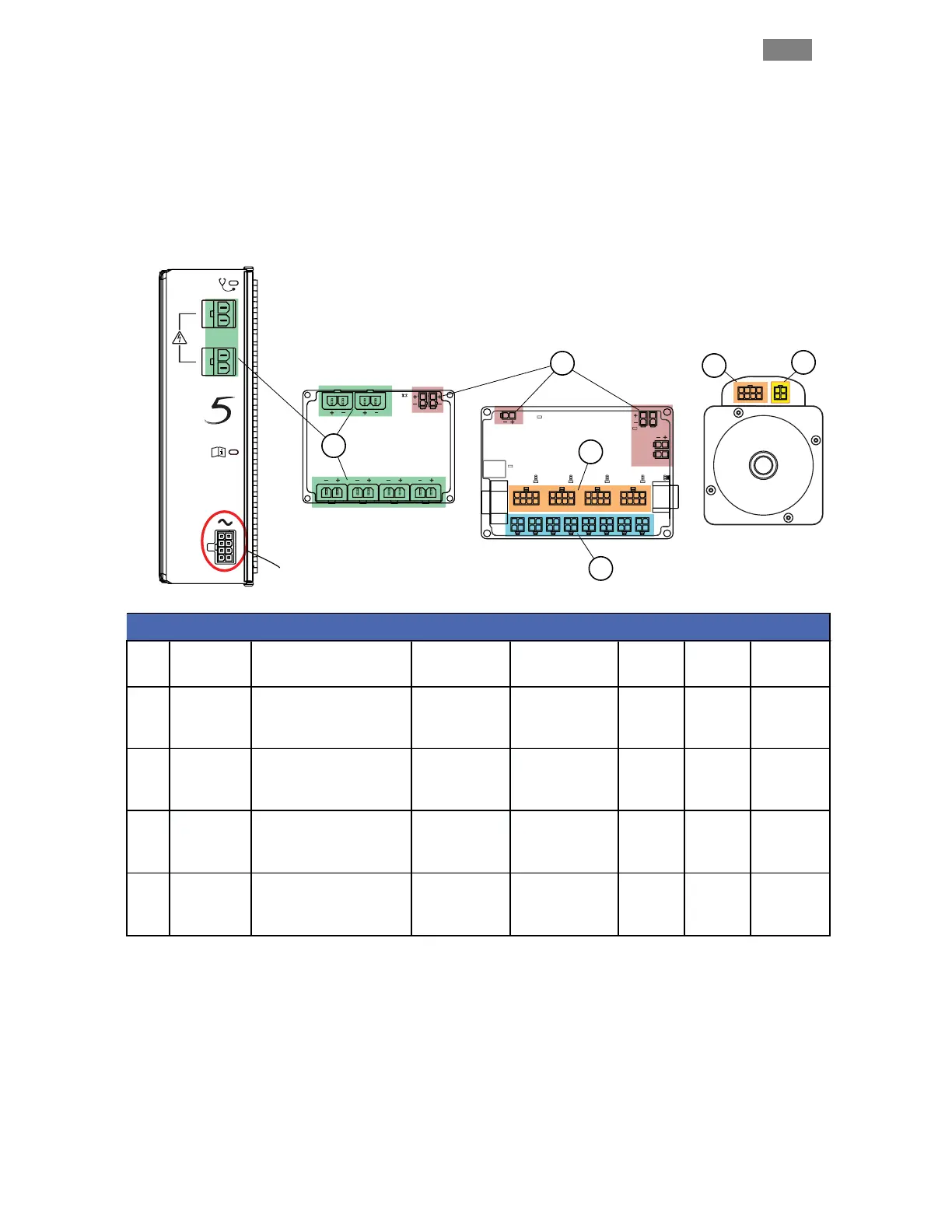

A PPENDIX C: C ONNECTOR M ATING P ARTS
This section contains a list of Molex mating connectors, terminals, and
hand tools that can be used to build cables for the ClearPath-SC system. It
is the user's responsibility to review and verify all mating part
specifications and application instructions with Molex Inc. before building
cables for use with ClearPath-SC components.
CP3
0A 1A
1B 2B 3A
CP0
OPEN
CP2
CP1
0B 2A
3B
GLOBAL STOP
P4P1 P2 P3
24V
DATA
DB9R-M
DB9R-F
USB-B
J0 J1 J2 J3 J5
A
B
E
D
C
POWER4- HUB
IPC-5 or IPC-3 Power Supply
ClearPath-SC motor
SC4-HUB
C
1
1
1
1
1
1
1
1
All parts listed below are made by Molex Inc. Go to www.molex.com for complete specifications and application information.
Ref. Description
Mating
Connector PN Terminal PN Terminal Desc. Crimp Tool
Extraction
Tool
Recommended
Wire Gauge
2
A
Molex Sabre,
Receptacle,
2 circuits
44441-1002 (black, UL 94V-2)
44441-2002 (black, UL 94V-0)
43375-0001
Female crimp terminal,
tin plate, 14-16 AWG
63811-7200
(14-16 AWG)
63813-2700
16 AWG
B
Molex MiniFit-Jr,
Receptacle,
2 circuits
39-01-2020 (natural, UL 94V-2)
39-01-3025 (black, UL 94V-2)
39-01-3028 (natural, UL 94V-0)
39-03-9022 (black, UL 94V-0)
39-00-0059 (reel)
39-00-0060 (loose)
Female crimp terminal,
tin plate, 18-24 AWG
63819-0900
(16-24AWG)
11-03-0044
20 AWG
C
Molex MiniFit-Jr,
Receptacle,
8 circuits
39-01-2080 (natural, UL 94V-2)
39-01-3085 (black, UL 94V-2)
39-01-2085 (natural, UL 94V-0)
39-03-9082 (black, UL 94V-0)
39-00-0046 (reel)
39-00-0047 (loose)
Female crimp terminal,
tin plate, 22-28 AWG
63819-1000
(22-28 AWG)
11-03-0044
22 AWG
D
1
Molex MiniFit-Jr,
Receptacle,
4 circuits
39-01-2040 (natural, UL 94V-2)
39-01-3045 (black, UL 94V-2)
39-01-2045 (natural, UL 94V-0)
39-03-9042 (black, UL 94V-0)
39-00-0046 (reel)
39-00-0047 (loose)
Female crimp terminal,
tin plate,
22-28 AWG
63819-1000
(22-28 AWG)
11-03-0044
22 AWG
E
1
Molex MiniFit-Jr,
Receptacle,
4 circuits1
39-01-2040 (natural, UL 94V-2)
39-01-3045 (black, UL 94V-2)
39-01-2045 (natural, UL 94V-0)
39-03-9042 (black, UL 94V-0)
39-00-0077 (reel)
39-00-0078 (loose)
Female crimp terminal,
tin plate,
16 AWG
63819-0900
(16-24 AWG)
11-03-0044
16 AWG
1
Important: For D and E, o
bserve differences in specified terminal, wire gauge, and crimp tool. While the same connector housing is used for D and E, the
associated circuits carry significantly different max. voltage and current loads.
2
AWG values listed are the actual wire gauges used in Teknic-manufactured cables.
See IPC-3 / IPC-5 documentation for
wiring instructions for this connector.
