C LEAR P ATH -SC U SER M ANUAL R EV . 1.36 23
T
EKNIC , I NC . T EL . (585) 784-7454

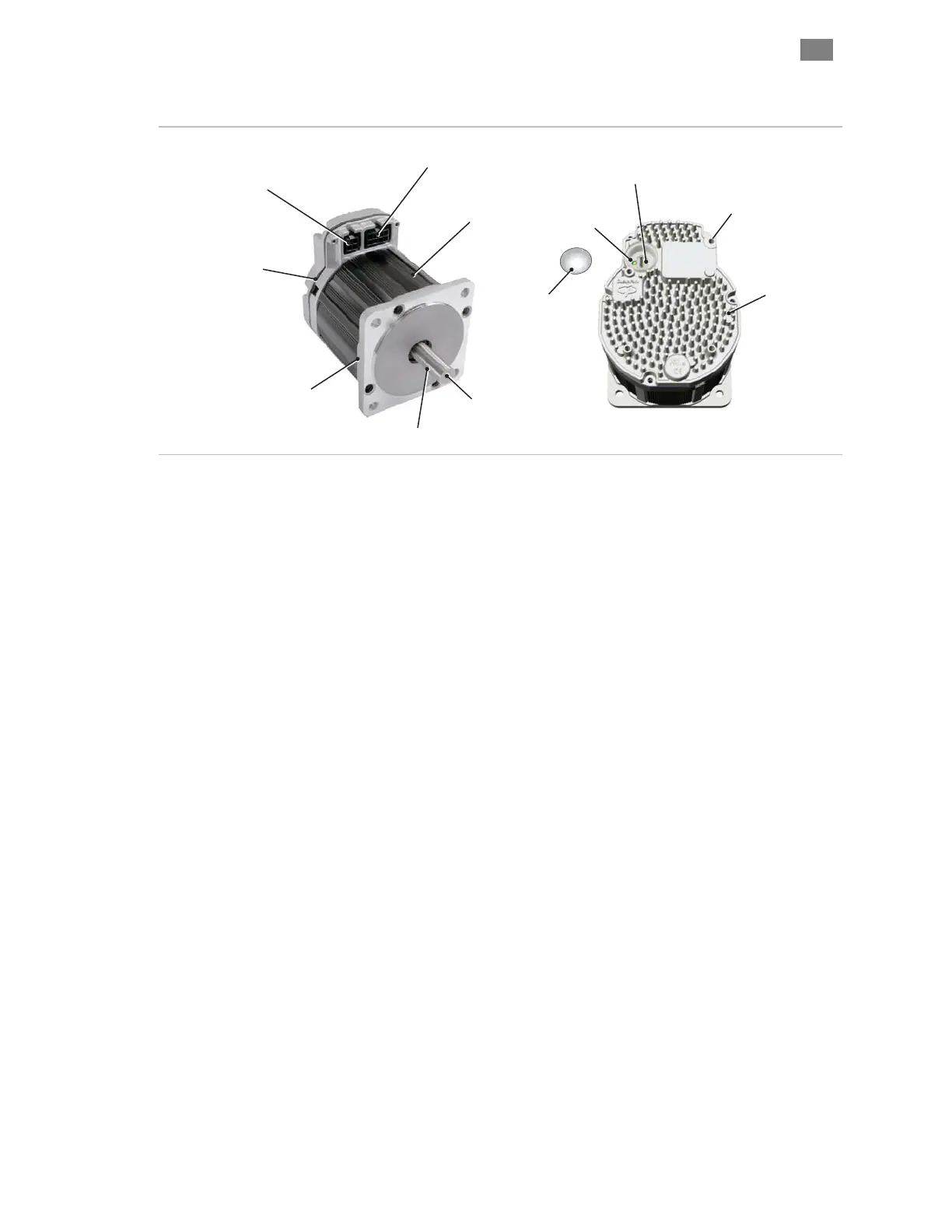

P ARTS OF A C LEAR P ATH -SC M OTOR
Diagnostic Port
(USB micro-B)
DC Bus Power Connector
(Molex Minifit Jr. 4 position)
Auxilliary PE
(Protective Earth)
Connection Point
ClearPath I/O Connector
(Molex Minifit Jr. 8 position)
Stainless
Steel Shaft
NEMA
Mounting
Flange
Die Cast
Heatsink
Sealing
Gasket
Housing
(Anodized aluminum)
Keyway
Status LED
Silicone Plug
(Covers diag. port)
ClearPath-SC Motor
DC B US P OWER C ONNECTOR
Function: Input for main DC motor power (24-75VDC).
Connector type: 4-pin Molex Minifit Jr.
C LEAR P ATH I/O C ONNECTOR
Function: Carries communication and input signals to ClearPath-SC.
Connector type: 8-pin Molex Minifit Jr.
D IAGNOSTIC P ORT
Function: Provides USB connectivity between ClearPath-SC and an
optional diagnostic laptop or PC. Connect to this port with a standard USB
cable (Type A to Micro-B). A silicon plug is provided to protect the port
from dust, dirt, etc. when not in use.
Connector type: USB Micro-B (female)
S TATUS LED
Function: Indicates operational status of ClearPath-SC. LED codes are
explained in the LED Blink Codes appendix.
A UXILIARY P ROTECTIVE E ARTH C ONNECTION P OINT
This is an unthreaded screw boss that can serve as a connection point to
Protective Earth ground if the motor is not otherwise bonded to PE
through the machine frame or other means.
