C LEAR P ATH -SC U SER M ANUAL R EV . 1.36 116
T
EKNIC , I NC . T EL . (585) 784-7454

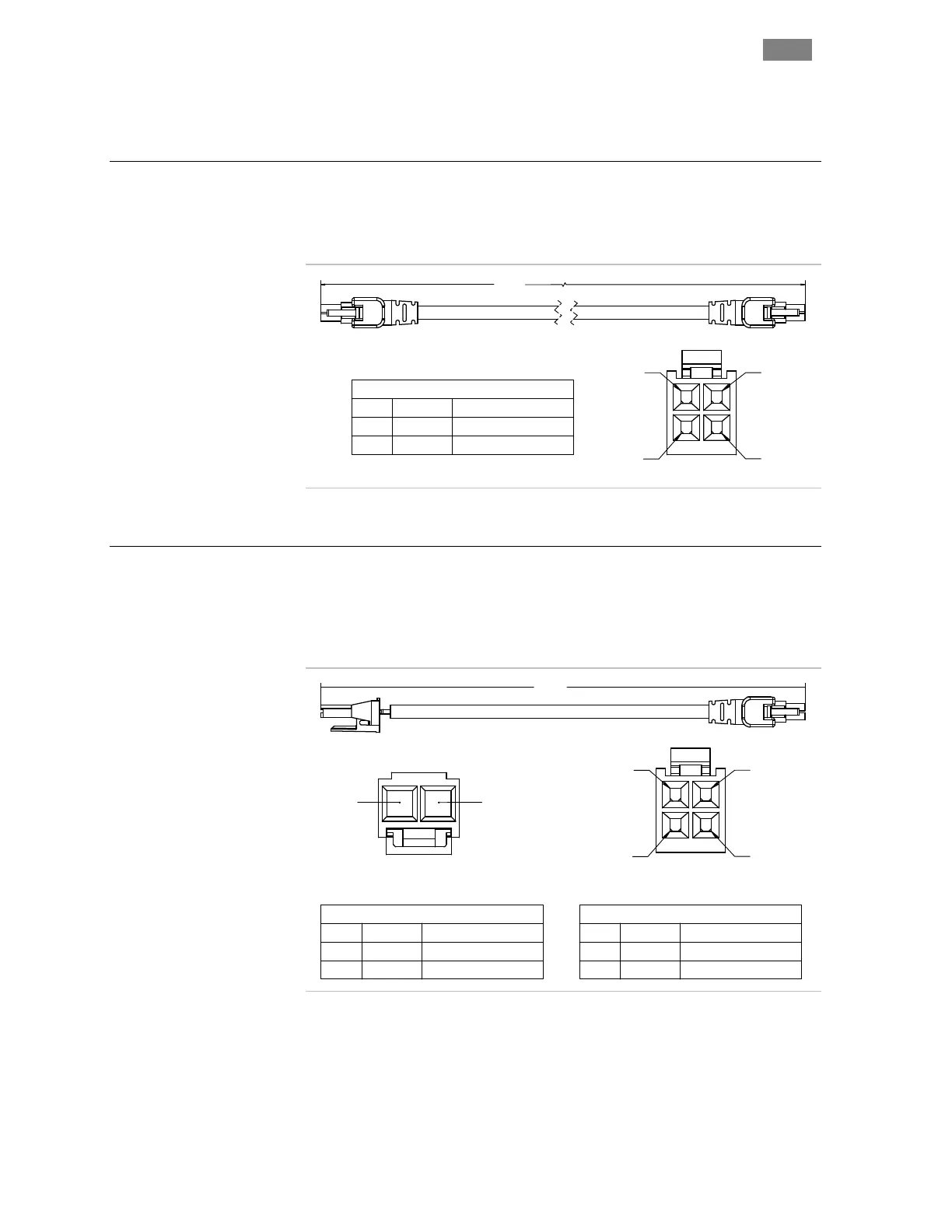

CPM-CABLE-PWR-MM660
Cable description: ClearPath-SC power cable (double-ended). MiniFit
Jr. 4-position connector to same. Use “as is” or cut in half to make two
cables with flying leads.
662"
Pin Assignments
Pin Color Name
2 BLK
3 RED
GND
V+
1 2 - BLK
4 3 - RED
wire entry view
CPM-CABLE-PWR-MM660
CPM-CABLE-PWR-MS120
Cable description: ClearPath-SC power cable. This cable connects the
DC output of a Teknic IPC-3 or IPC-5 power supply to the ClearPath-SC
power input connector. It features a Sabre 2-position connector to Molex
MiniFit Jr. 4-position connector.
121"
Pin Assignments
Pin Color Name
2 BLK
3 RED
GND
V+
Pin Assignments
Pin Color Name
1 RED
2 BLK
V+
GND
1 2 - BLK
4 3 - RED
wire entry viewwire entry view
2-BLK
1-RED
CPM-CABLE-PWR-MS120
