Brief procedures
9. In the Waveform List window, select (drag and drop) the Waveform_1 GHz
waveform on to the work space.
10. Press the Play button, or click Play on the display.
11. Press the All outputs off button to enable the outputs.
12. Check that the Channel 1 waveform is properly displayed on the signal
analyzer scree n. (See Figure 2-8.)

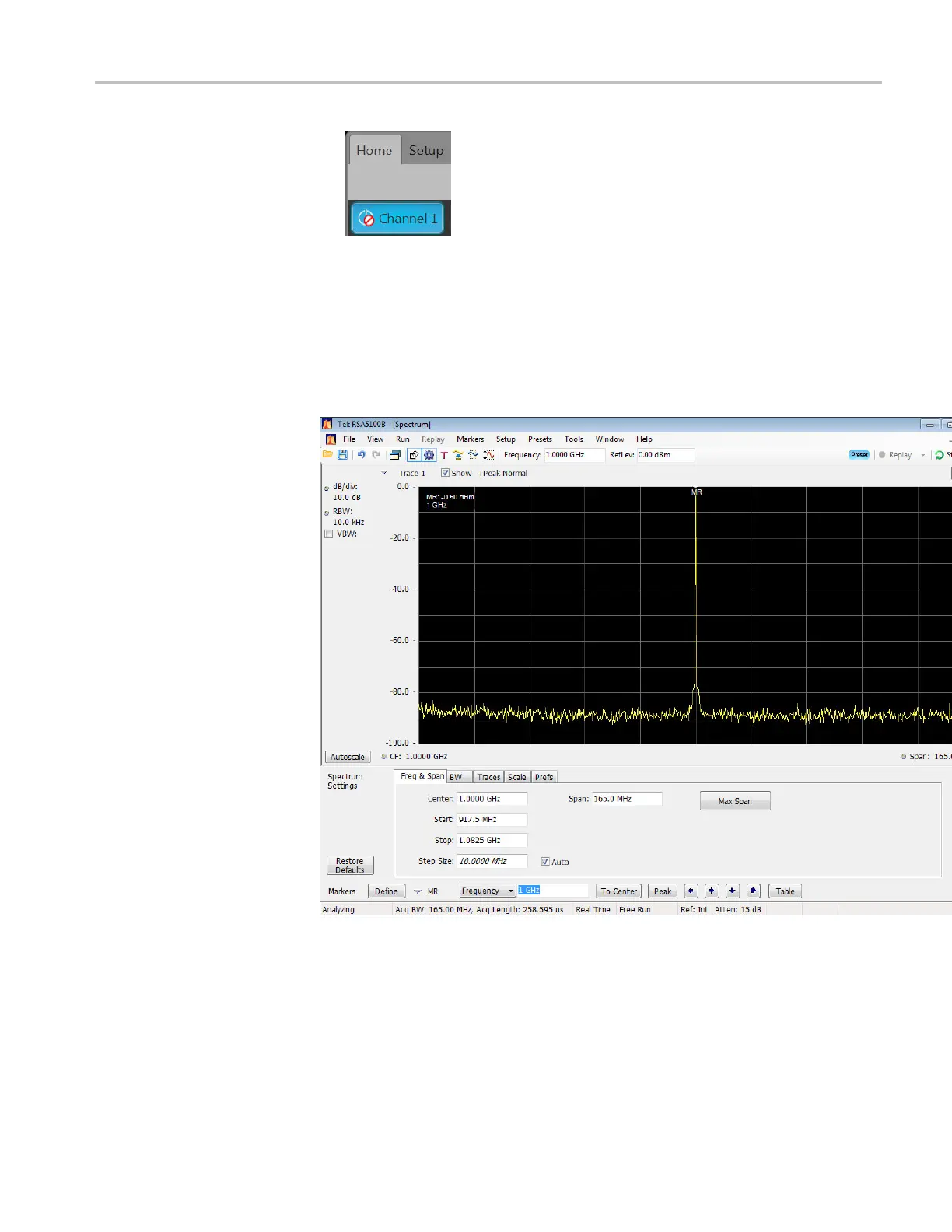

Figure 2-7: 1 GHz output waveform – no filter
13. Press the All Outputs button to disable the outputs.
14. Click the Setup tabonthedisplay.
a. Set Filter to Low Pass
15. Press the All outputs off button to enable the outputs.
AWG70000A Series and AWGSYNC01 Technical Reference 2–15
