Performance tests
10 MHz referen
ce frequency accuracy
Required equ ipment Prerequisites
Frequency counter
SMA female-to-BNC male adapter
50 Ω SMA cable
(See page 2-21, Prerequisites.)
1. Connect the 10 MHz Reference Output on the back of the instrument to the
A input of the frequency counter, using the 50 Ω SMA cable and SMA-BNC
adapter.

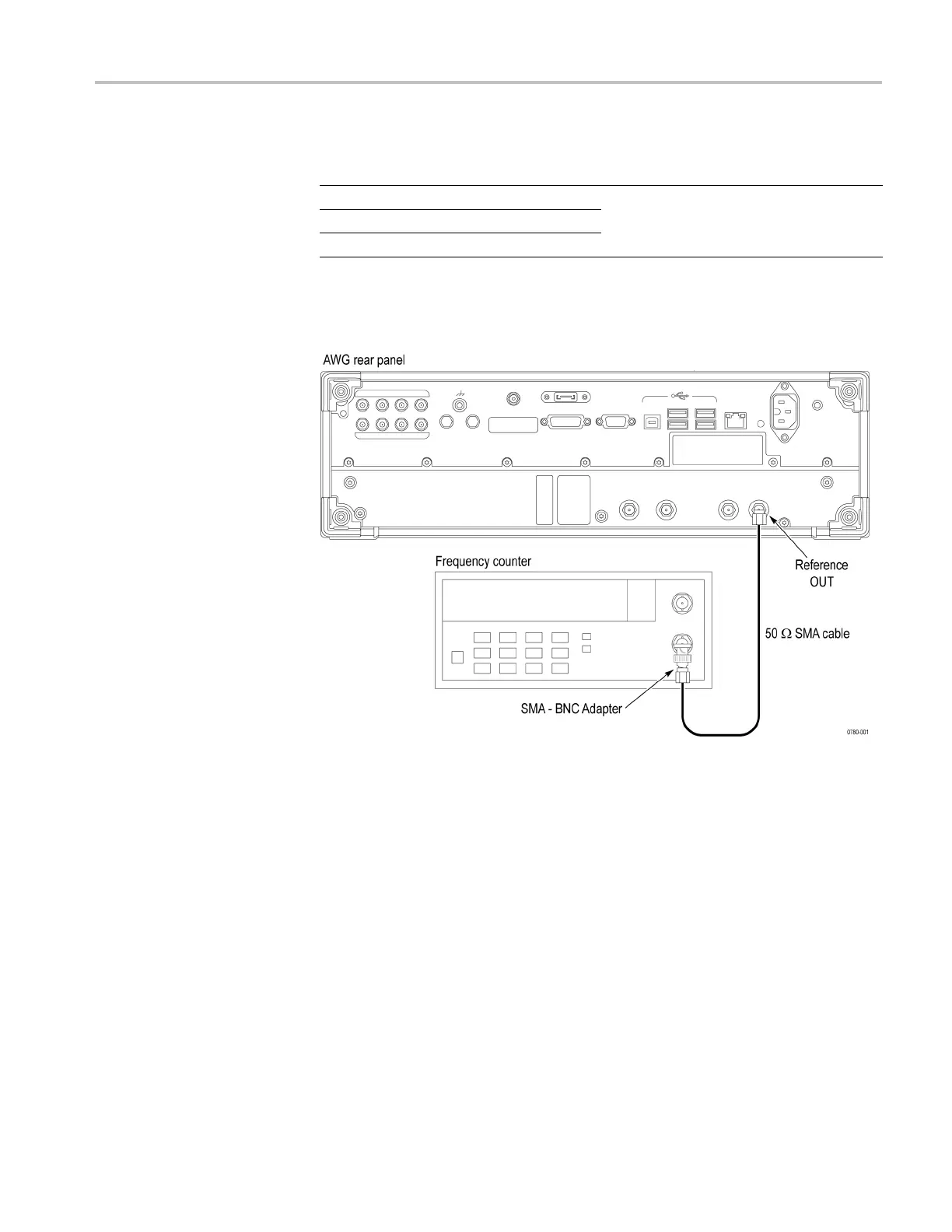

Figure 2-12: Equipment connection for verifying the 10 MHz reference frequency
acc
uracy
2. On t
he frequency counter, press the Meas and the Freq buttons.
3. Verify that the frequency counter reading falls within the range of
9.
99999 MHz to 10.00001 MHz (±1 ppm).
4. Disconnect the test setup.
AWG70000A Series and AWGSYNC01 Technical Reference 2–23
