Behavior
The instrument acquires data from the channel you select for each component.
What do you want to do next?
Learn more about bus setups.
Learn about bus configuration.
Learn about digital setups.
Select the serial bus input
From the Bus Setup window, select Serial from the Bus Type list and then select from the cascading list. Digital channels are not
available on SX models.
To use

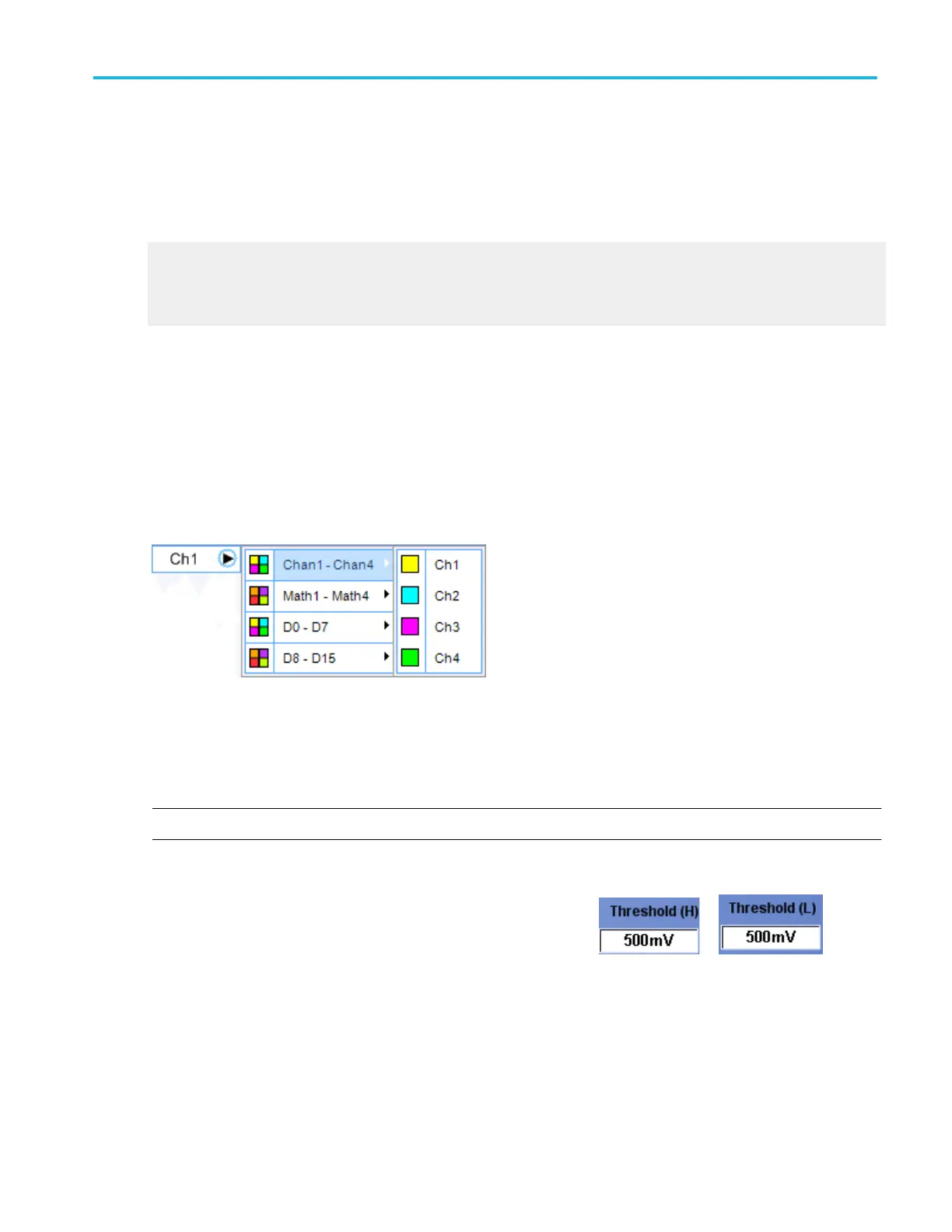

To change the input for the displayed components of the bus, click the Input and select from the cascading list.
Select the USB bus threshold
From the Bus Setup window, select Serial from the Bus Type list and then select USB Serial bus type.
NOTE. USB bus threshold high and low are available only on instruments with option SR-USB.
To use
To change the voltage high or low threshold level of the component Input, click
or entry box
respectively and use the keypad to enter a value or use the multipurpose knobs to select a voltage level. Setting the low
threshold is only available when the signal type is differential.
Bus setups
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 139
