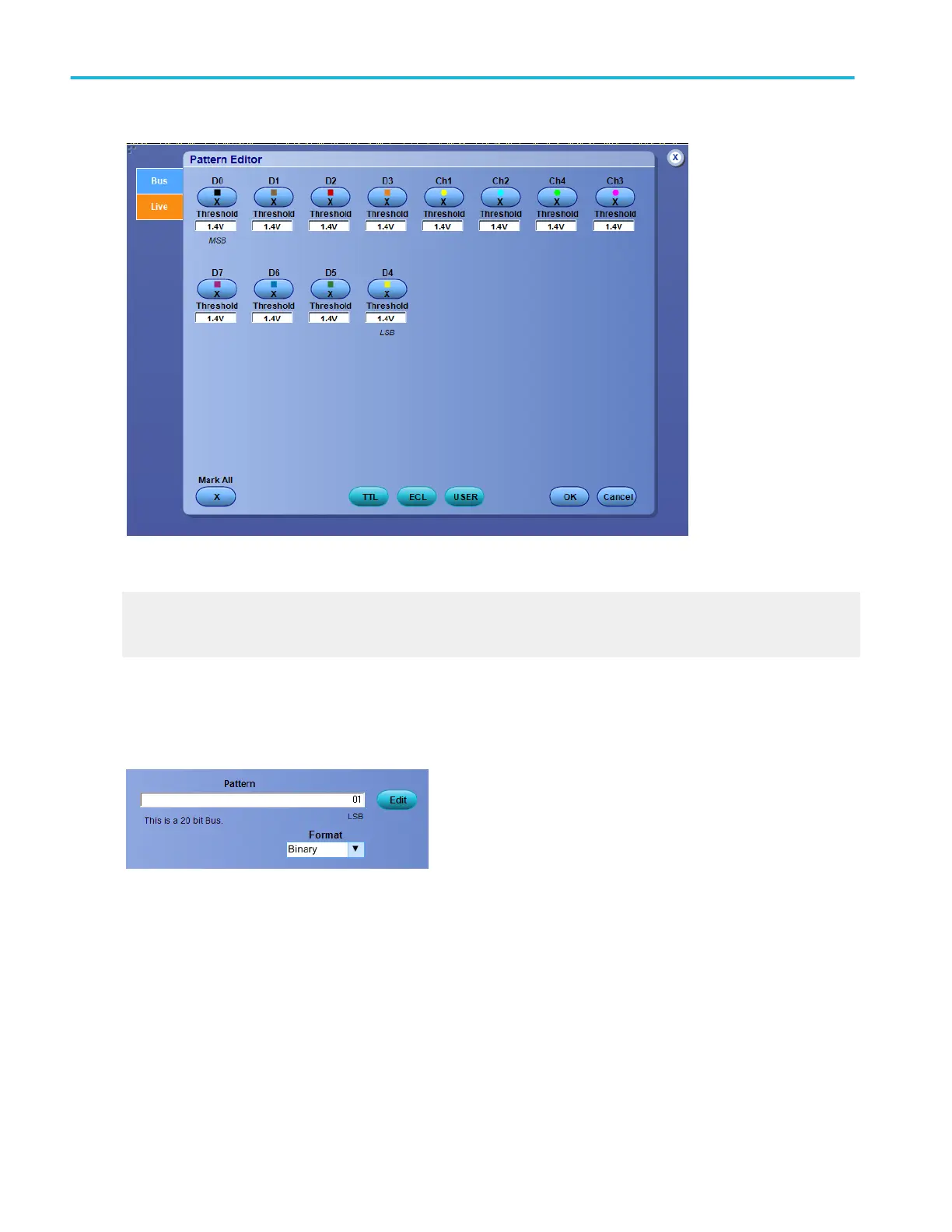

Bus pattern format
For MSO70000C/DX Series instruments, from the Trigger menu, select the Bus trigger type. You can change the format of the
bus pattern after you define a pattern.
■
Hex causes the instrument to display the bus pattern as a hexadecimal value.
■
Binary causes the instrument to display the bus pattern as a binary value.
■
Decimal causes the instrument to display the bus pattern as a decimal value.
