Select the search type
From the Analyze menu, select Search; then open the Select tab.
Overview
Use these controls to select the type of search you want the instrument to perform to automatically place marks on a waveform.
NOTE. This document is for more than one instrument. Your instrument, or instrument setup, may not include some of these
features. For DPO70000SX instruments see Features not available.
To use
■

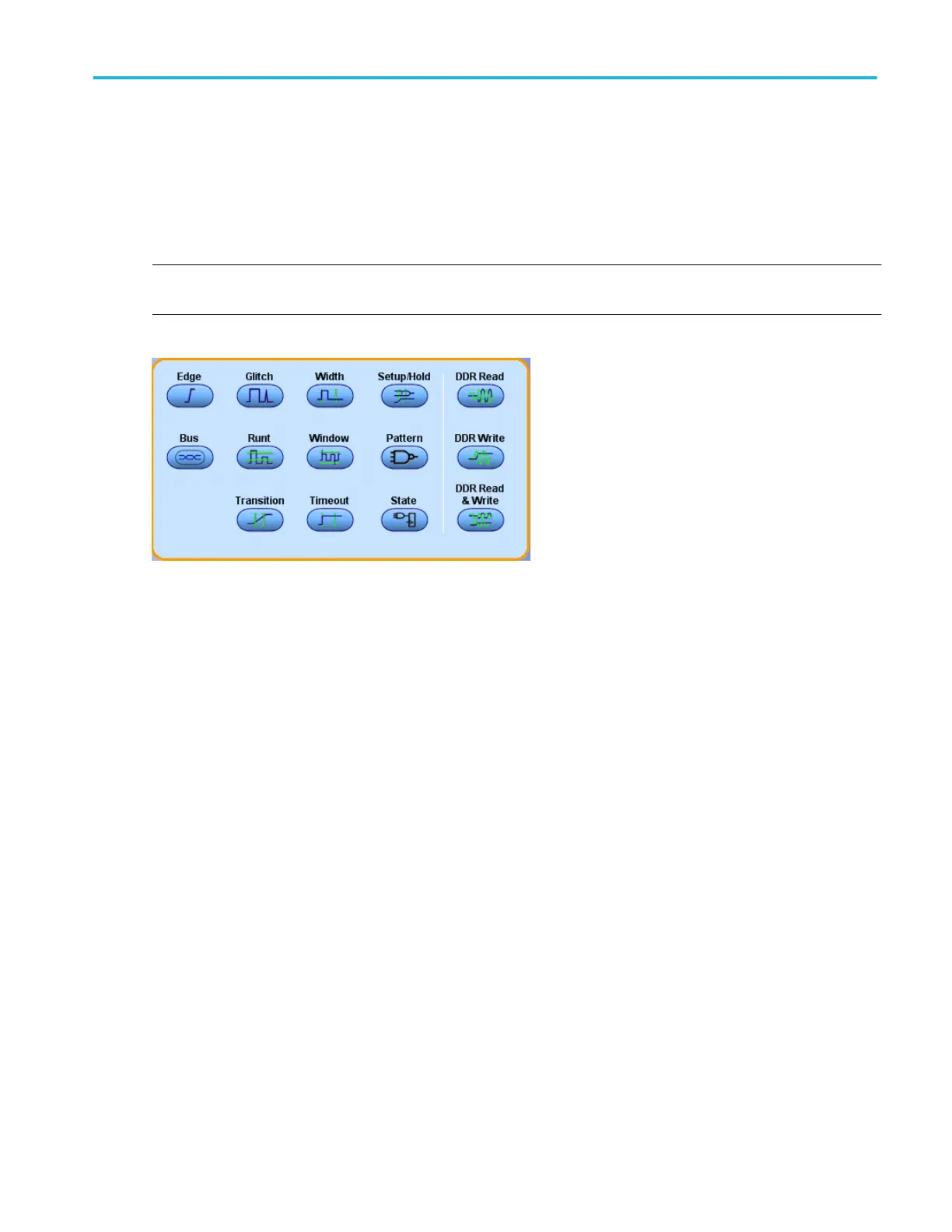

Click a button to identify the type of search to perform.
■
The search Type will appear under Type in the Type-Source table.
Behavior
Clicking a button places the search selection in the Type column of the Type-Source table
Select the search source
From the Analyze menu, select Search; then open the Select or Configure tabs.
Overview
The Source Selection windows allow you to specify the channel parameters used in the search.
Analyzing waveforms
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 299
