Changing cursor positions

Change cursor positions by using the position controls in the Cursor Position window, dragging the cursor into position using the

touch screen or mouse, or by turning the front-panel multipurpose knobs.

NOTE. To make small changes with the multipurpose knobs, push the Fine button before turning the knobs. When a Fine button

is lighted, its multipurpose knob makes smaller adjustments.

What do you want to do next?

Learn about cursor types.

Go to a step-by-step procedure for taking automatic measurements.

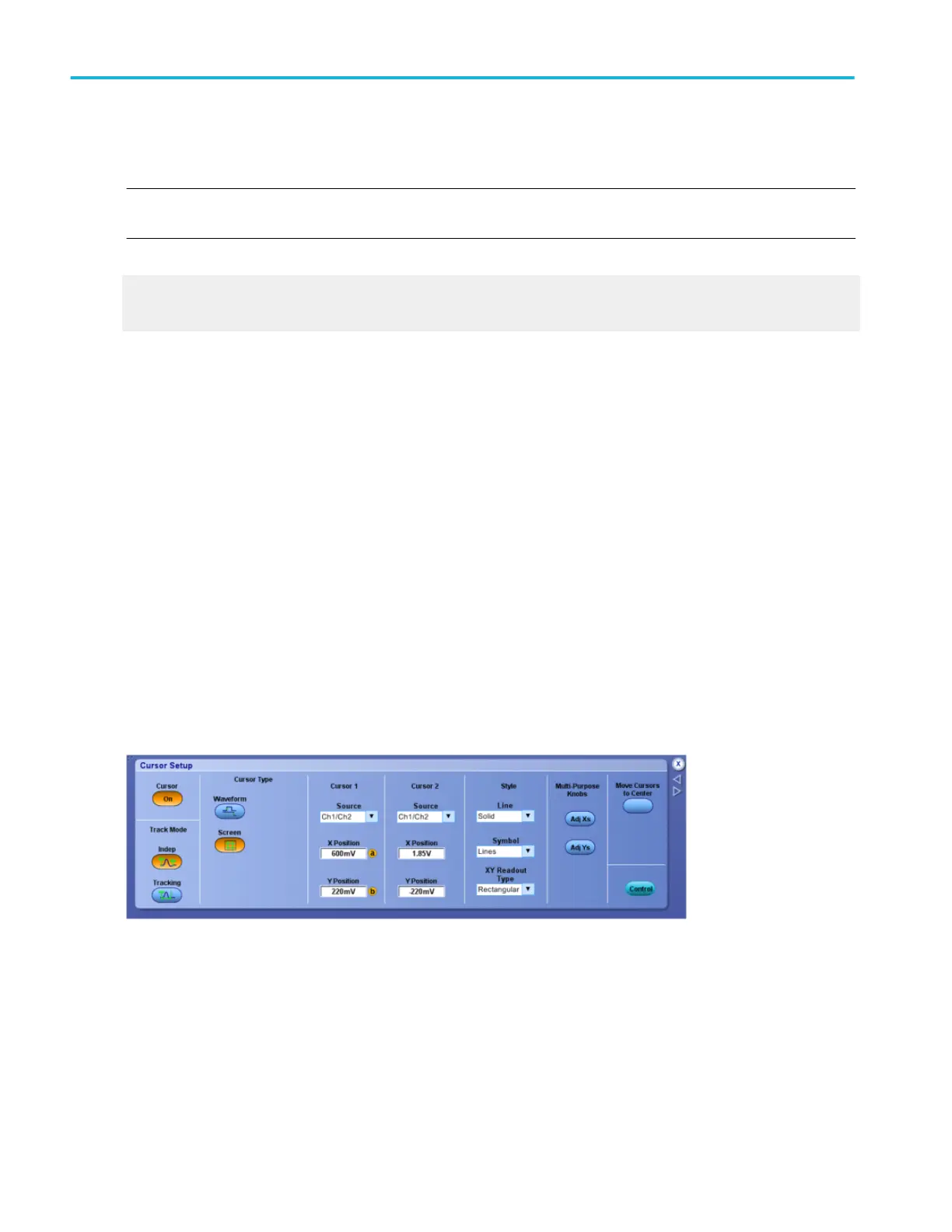

Cursor setup control window (XY display format)

From the Cursors menu, select Cursor Setup.

Overview

Use these controls to set the cursor parameters when you are using XY display format. The available controls vary depending on

the rest of the cursor window settings.

For information on the controls, click the buttons.

■

Track Mode

■

Waveform

■

Screen

■

Source

■

Position

■

Style

To use

1. Use the same Cursor Control Window (YT format) guidelines to setup up the cursor controls.

2. Select the readout format from the XY Readout drop-down list.

Cursor setups

96 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series

Tektronix MSO5104B Printable Help
