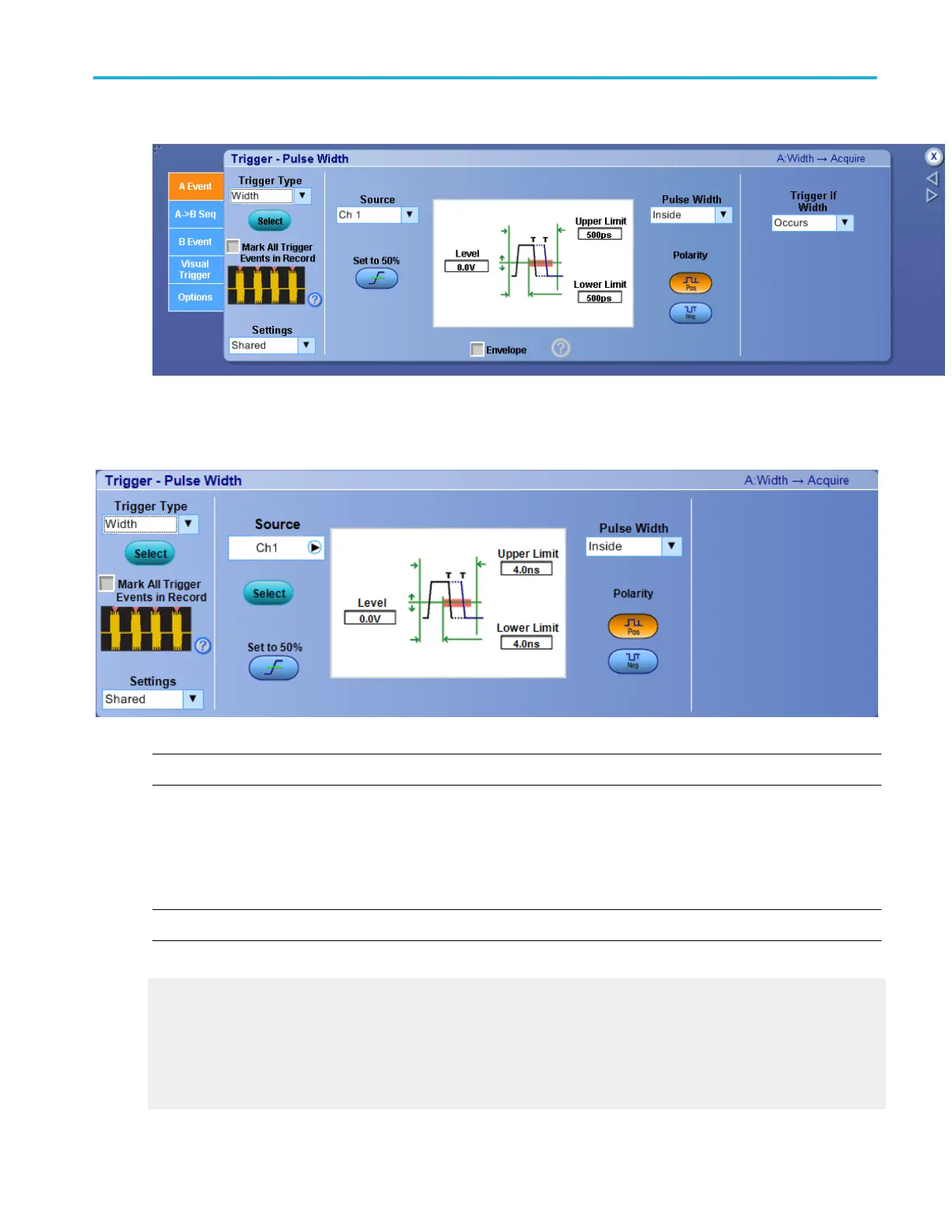

The following Trigger Width screen appears on MSO/DPO5000B Series instruments:
NOTE. This online help file supports many oscilloscope models from Tektronix. This feature is only available on some models.
Behavior. Use the Width trigger to trigger the instrument on a pulse that is either within or outside the specified range. The range
is defined by the Upper Limit and Lower Limit controls. You can specify widths for either positive or negative pulses. The pulse
widths are measured at the voltage level specified by the Level control. The trigger can also be qualified by the logical state of
other channels or by a bus pattern (MSO70000C/DX Series only). When you click on the trigger window controls, the trigger
graphic shows the trigger sequence.
NOTE. You have the option to add user-defined labels for analog, reference, bus, and digital sources.
What do you want to do next?
Learn more about other trigger types.
Return to the Trigger Setup control window.
Trigger graphic
The trigger graphic displays a visual indicator of the trigger criteria. Depending on the trigger type, the instrument will update the
graphic as you define the trigger parameters.
