Behavior. Once a visual trigger area is created, you can control the size and position of the area;

■

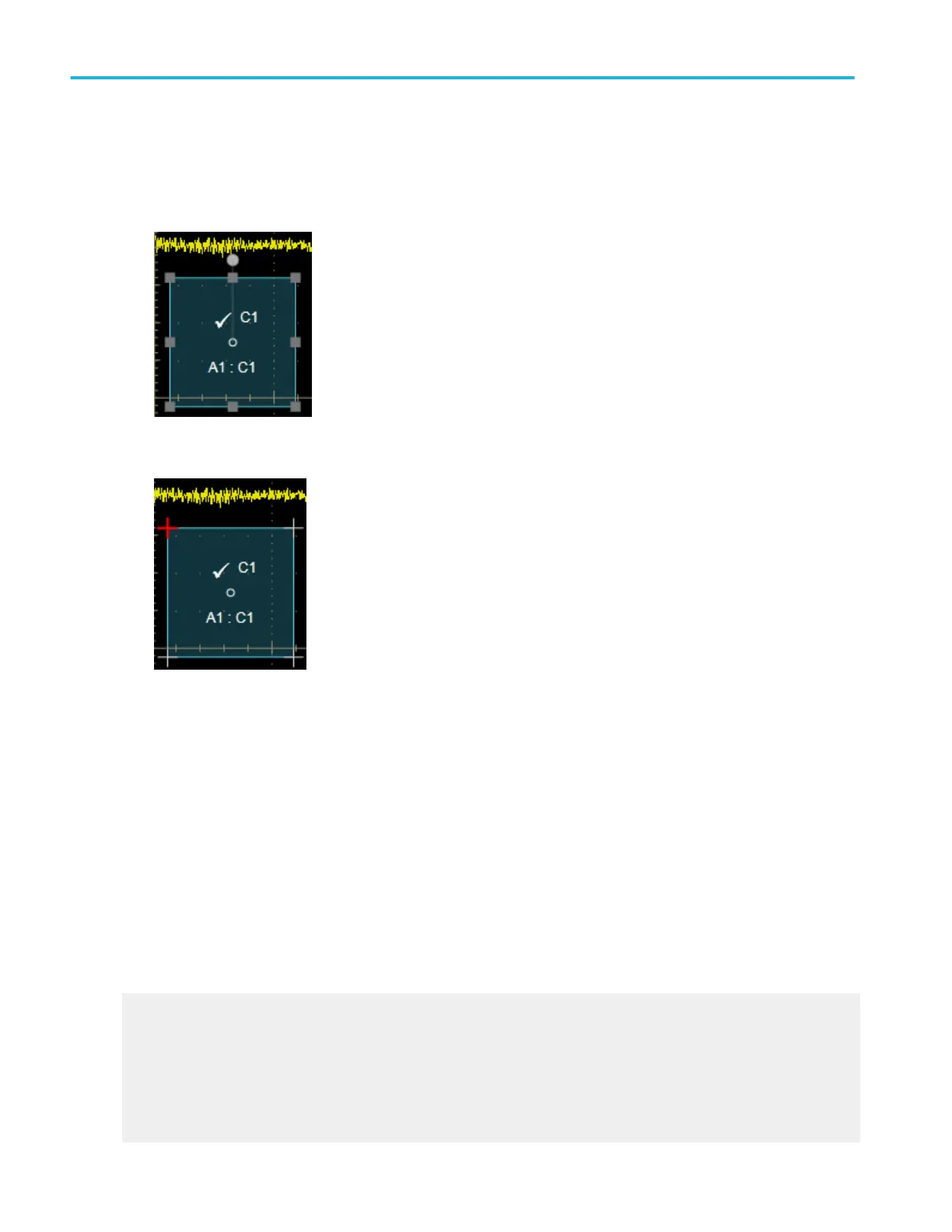

Click the area to enable its handles. Click again to display the vertices.

■

Click and drag the area to move it to a new location.

■

Click and drag one of the area handles to resize the area vertically, horizontally, or both.

■

Click and drag the circle handle to rotate the area.

■

Click and drag one of the vertices to change the shape of the area by moving the vertex. Right click the area to add or

delete a vertex.

Visual trigger areas show the area number, area handles, the channel included or excluded from the area, and a check mark or x

indicating whether the channel is included or excluded in the area.

Creating a visual trigger area adds the area to the visual trigger expression. Clicking a waveform handle before creating a visual

trigger area changes the channel included in the area and equation. Right clicking an area and selecting Must be inside or Must

be outside changes the expression to either include or exclude the channel in the area. Controlling Visual Triggering shows a

waveform excluded from a visual trigger area.

What do you want to do next?

Learn about visual trigger setup.

Learn about controlling visual triggering.

Learn about saving a visual trigger setup.

Learn about recalling a visual trigger setup.

Learn about visual trigger qualification expressions.
