11.2 IPTV
11.2.1 Overview
IPTV is the technology integrating internet, multimedia, telecommunication and many other
technologies, providing interactive services, including digital TV, to family users by internet
broadband lines.
You can set the multicast and STB functions here.
− Multicast: If you want to watch multicast videos from the WAN side of the router on
your computer, you can enable the multicast function of the router.
− STB (Set Top Box): If the IPTV service is included in your broadband service, you are
enabled to enjoy both internet access through the router and rich IPTV contents with
a set top box.
To access the configuration page, log in to the web UI of the router and choose Advanced
Settings > IPTV.

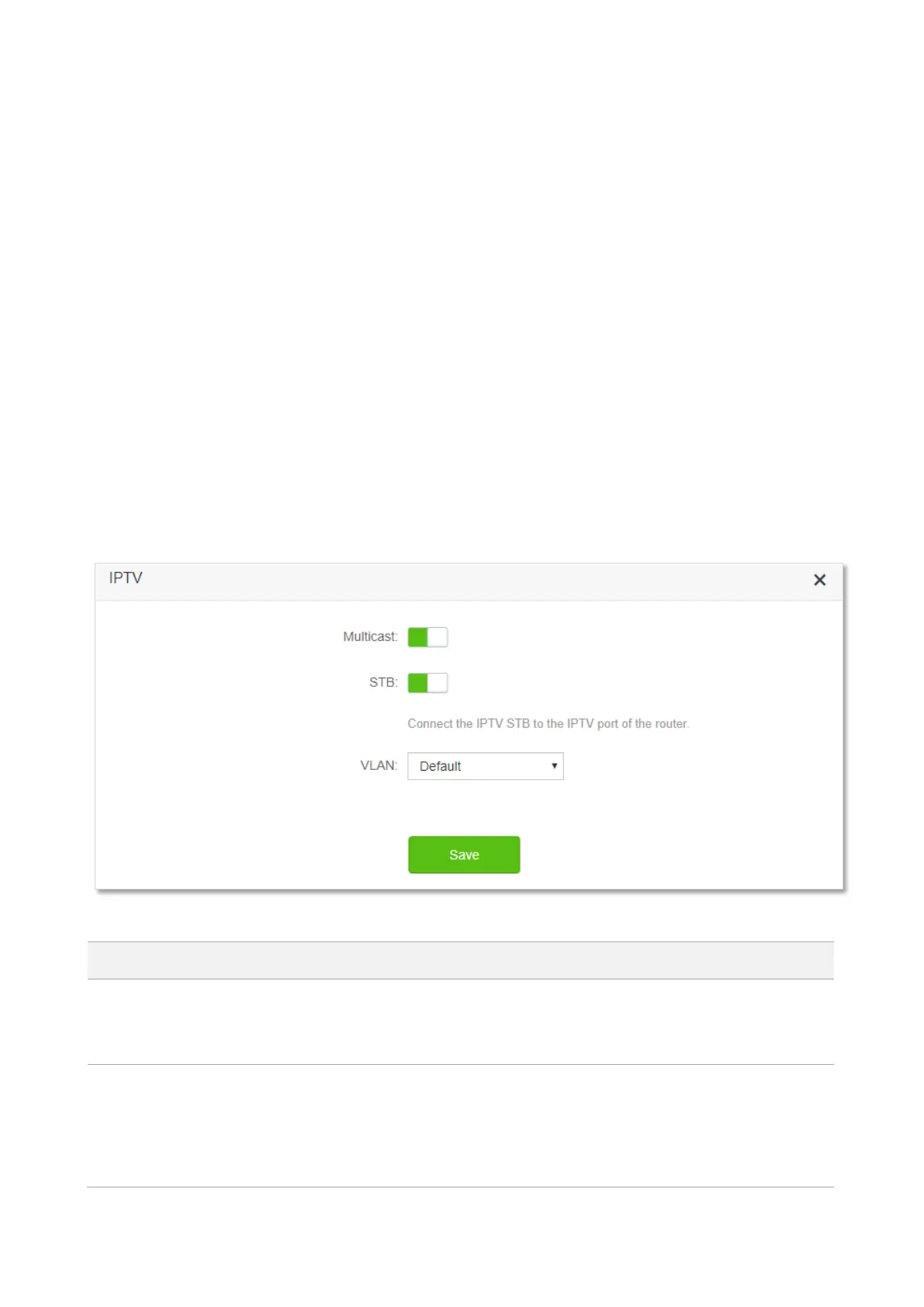

The IPTV function is disabled by default. When it is enabled, the page is shown below.
Parameter description
Parameter
Description
STB
It is used to enable and disable the IPTV function of the router.
When this function is enabled, the port IPTV/3 or IPTV/4 port can be used only as an IPTV
port and be connected to an IPTV set top box.
VLAN
It specifies the VLAN ID of your IPTV service.
⚫
If your ISP does not provide any VLAN ID information when the IPTV service is available,
please keep Default.
⚫
If you have obtained VLAN ID from your ISP when the IPTV service is available, please

Tenda AC23 Specifications

General

USB port	No
DC-in jack	Yes
Connectivity technology	Wireless
Ethernet LAN (RJ-45) ports	3
Product type	Tabletop router
Product color	Black
LED indicators	LAN, System, WAN, WLAN, WPS
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	2033 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	1733 Mbit/s
VPN support	IPsec, L2TP, PPTP
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Transmit power	20/23 dBmW
Antennas quantity	7
Antenna gain level (max)	6 dBi
Output current	1.5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Certification	CE/FCC/RoHS
Processor cores	2
Processor frequency	1000 MHz
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Harmonized System (HS) code	85176990
