Tenda AC23 User Manual

136

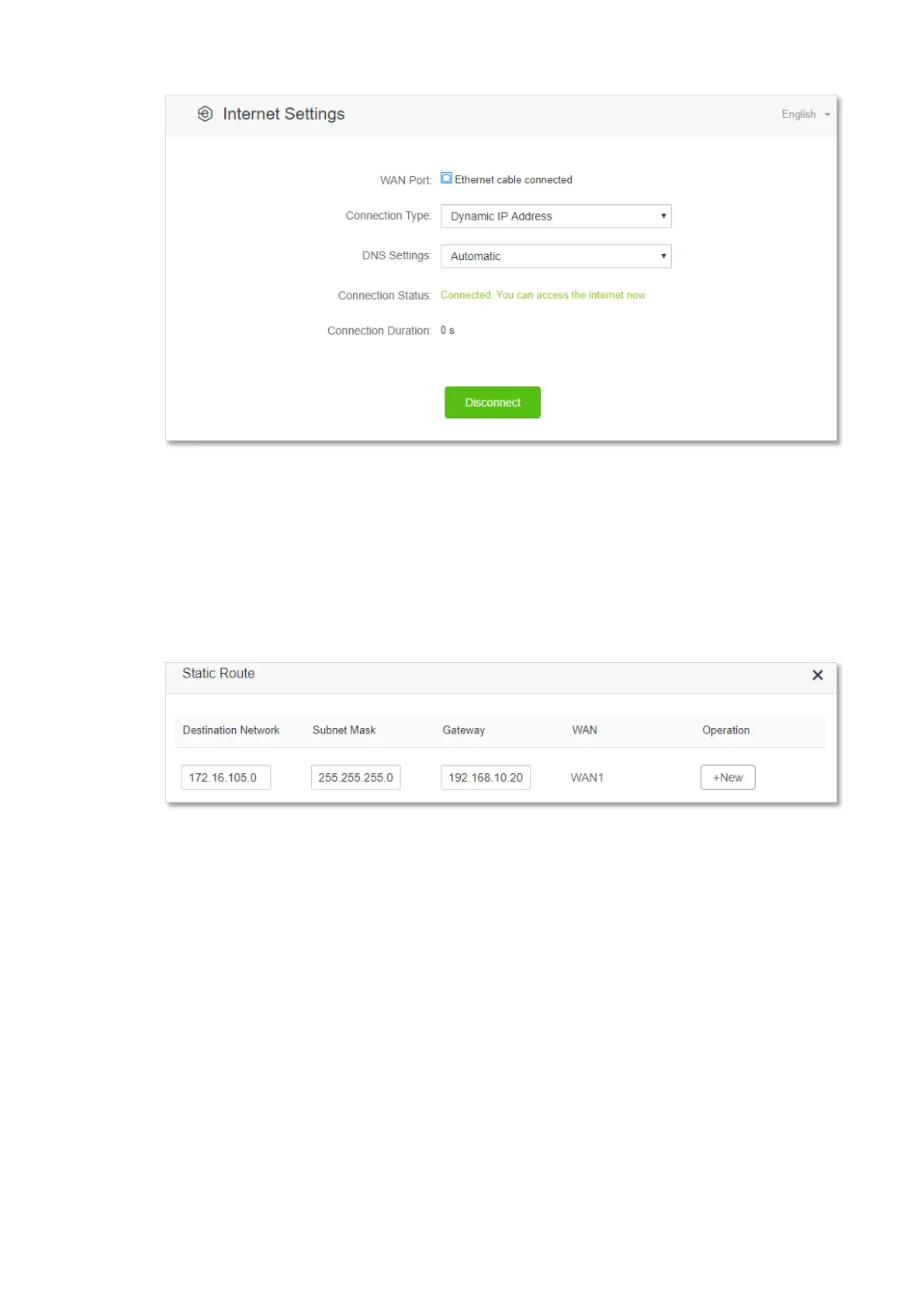

Step 3 Add a static route rule on AC23.
1. Choose Advanced Settings > Static Route.
2. Enter the IP address of the destination network, which is 172.16.105.0 in this example.
3. Enter the subnet mask of the destination network, which is 255.255.255.0 in this example.
4. Enter the ingress IP address of the next hop route, which is 192.168.10.20 in this example.
5. Click +New.
---End
When completing the configurations, you can access both the internet and intranet through AC23
at the same time.

Tenda AC23 Specifications

General

USB port	No
DC-in jack	Yes
Connectivity technology	Wireless
Ethernet LAN (RJ-45) ports	3
Product type	Tabletop router
Product color	Black
LED indicators	LAN, System, WAN, WLAN, WPS
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	2033 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	1733 Mbit/s
VPN support	IPsec, L2TP, PPTP
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Transmit power	20/23 dBmW
Antennas quantity	7
Antenna gain level (max)	6 dBi
Output current	1.5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Certification	CE/FCC/RoHS
Processor cores	2
Processor frequency	1000 MHz
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	144.3 mm
Width	238.9 mm
Height	40.3 mm
